Installation Procedure

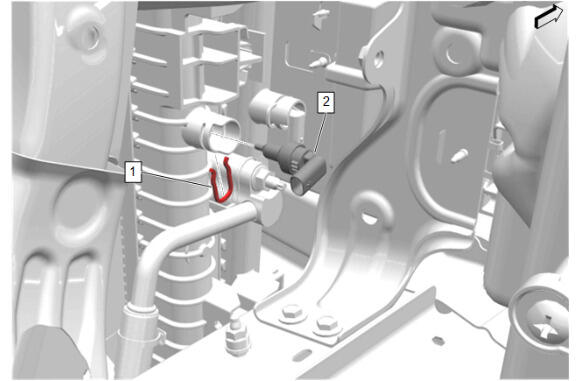

  1. GM6563517Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor (2) @ Engine Radiator - Install

  2. Retainer (1) - Install

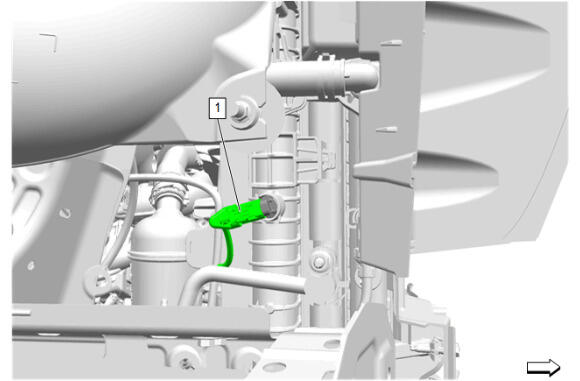

  3. GM6382735Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Engine Coolant Temperature Sensor - Connect

  4. Front Bumper Fascia - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)
  5. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
  6. Start the engine and check for coolant leaks.
