Installation Procedure

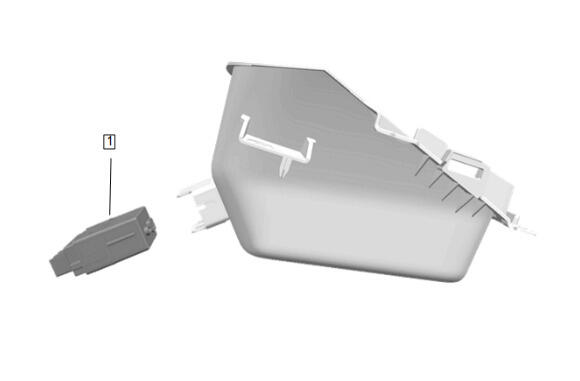

  1. GM6693321Courtesy of GENERAL MOTORS COMPANY

    Dual Charge Only Receptacle (1) - Install

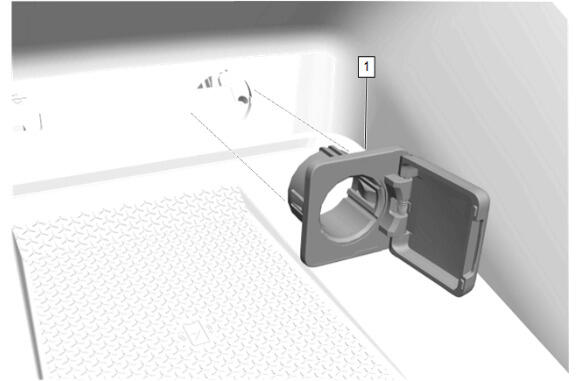

  2. GM6705250Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Accessory Power Rear Receptacle Retainer (1) - Install

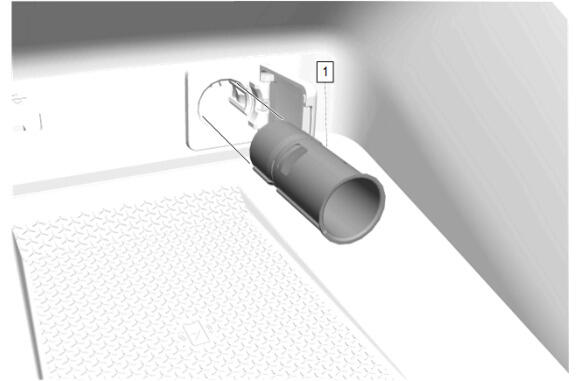

  3. GM6705258Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Accessory Power Rear Receptacle (1) - Install

  4. GM6399481Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector and install the wiring harness retainers as necessary.

  5. Front Floor Console Front Compartment (2) - Install
    6. CAUTION:

    Refer to Fastener Caution .

  6. Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  7. GM6399489Courtesy of GENERAL MOTORS COMPANY
  8. Front Floor Console Upper Panel (1) - Install
  9. Front Floor Console - Install - Front Floor Console Removal and Installation
