Fastener Specifications

GM4195237Courtesy of GENERAL MOTORS COMPANY
Front Seat

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Bolt [4x] - - 45 N.m (33 lb ft) Front Seat Removal and Installation
GM6273969Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Outer Finish Cover (A2X / A7J)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
3 Front Seat Adjuster Finish Cover Bolt [2x] - Yes 8 N.m (71 lb in) Front Seat Cushion Outer Finish Cover Replacement , or Front Seat Cushion Outer Finish Cover Replacement , or Front Seat Cushion Outer Finish Cover Replacement

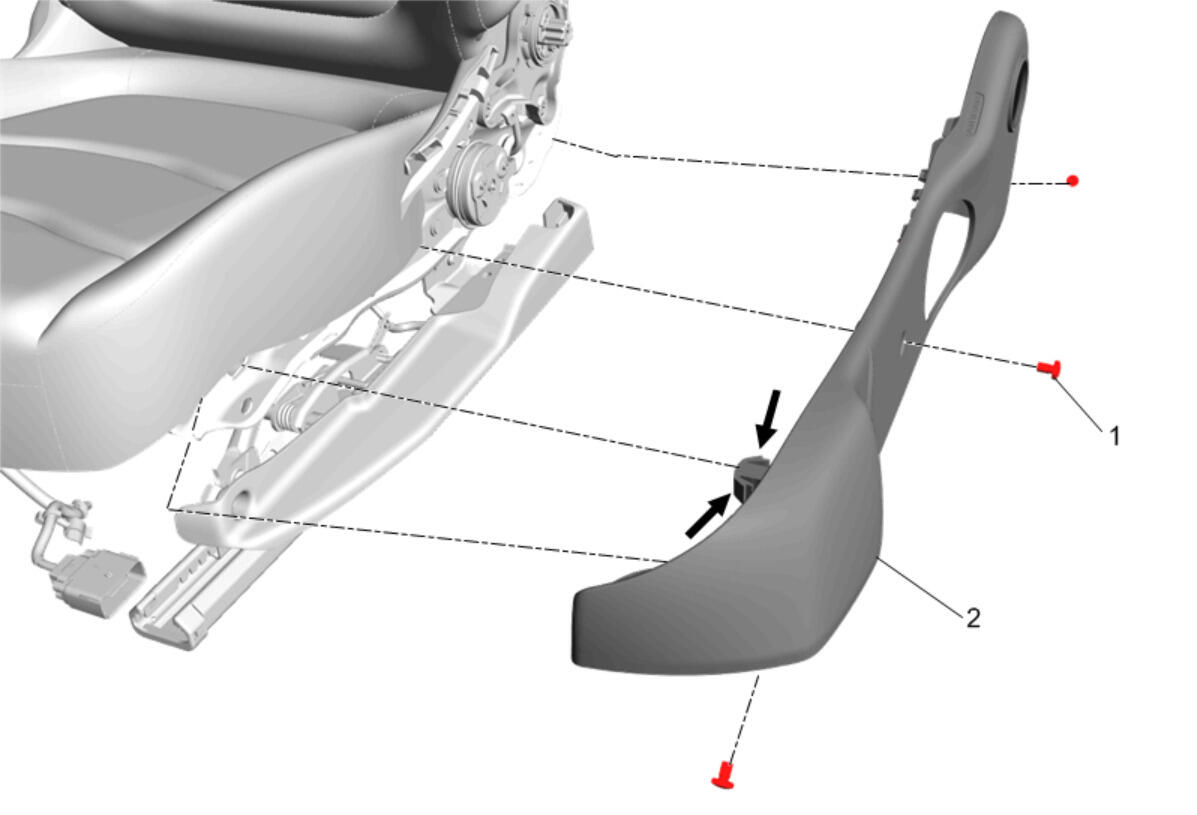

GM4089745Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Outer Finish Cover (A2V)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Adjuster Finish Cover Bolt [3x] - Yes 8 N.m (71 lb in) Front Seat Cushion Outer Finish Cover Replacement , or Front Seat Cushion Outer Finish Cover Replacement , or Front Seat Cushion Outer Finish Cover Replacement

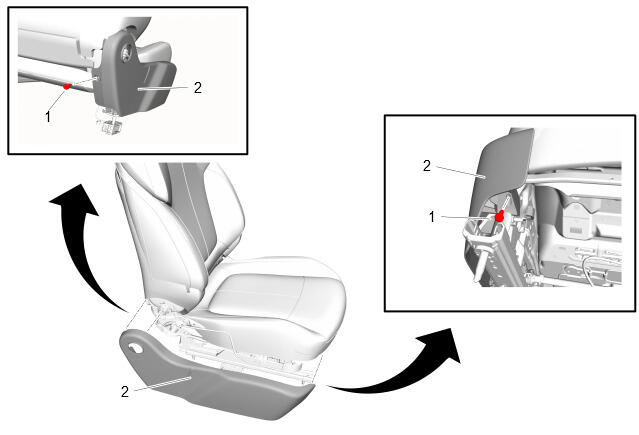

GM6382973Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Outer Finish Cover (A7E)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Adjuster Finish Cover Bolt [2x] - Yes 8 N.m (71 lb in) Front Seat Cushion Outer Finish Cover Replacement , or Front Seat Cushion Outer Finish Cover Replacement , or Front Seat Cushion Outer Finish Cover Replacement

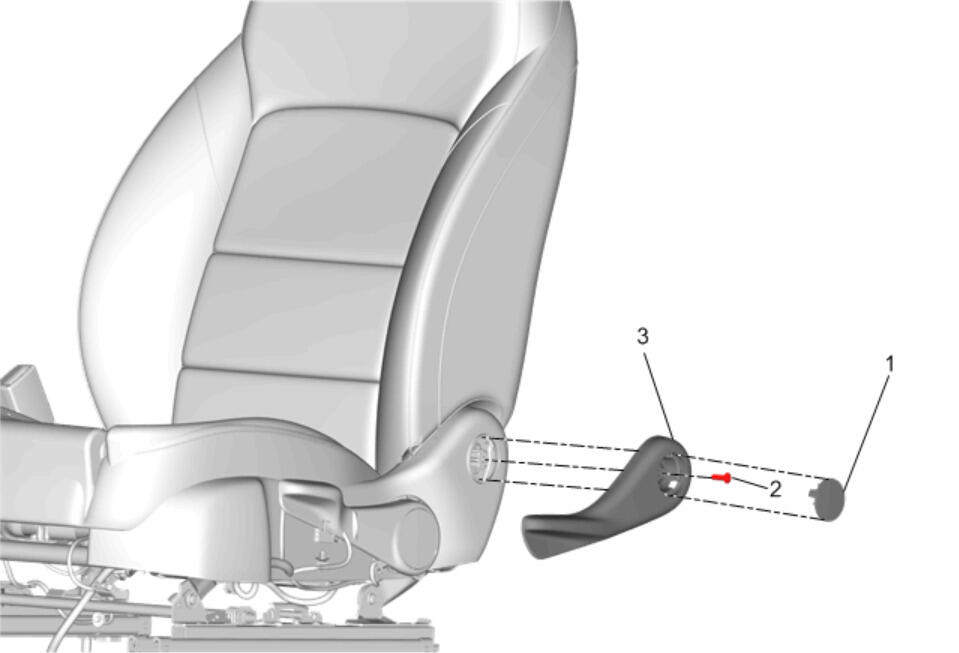

GM4195475Courtesy of GENERAL MOTORS COMPANY
Front Seat Recliner Handle

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Front Seat Bolt @ Front Seat Recliner Handle - Yes 3 N.m (27 lb in) Front Seat Recliner Handle Replacement

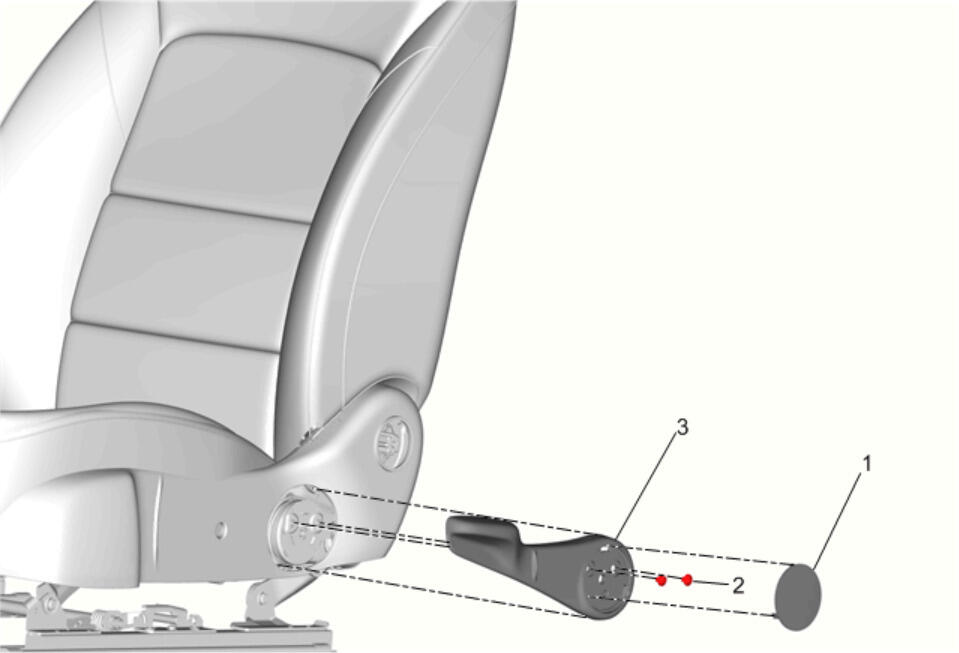

GM4195479Courtesy of GENERAL MOTORS COMPANY
Front Seat Vertical Actuator Handle

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Front Seat Vertical Actuator Handle Bolt [2x] - - 4 N.m (35 lb in) Front Seat Vertical Actuator Handle Replacement

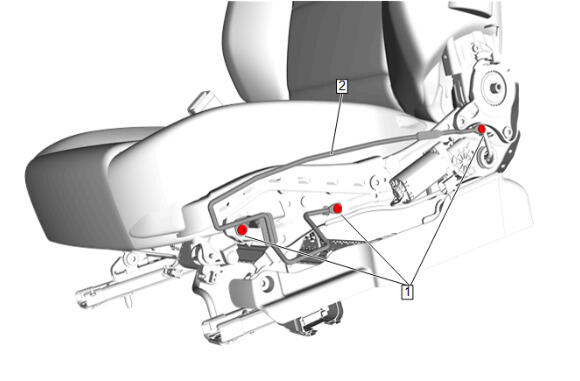

GM6382978Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Cover Retainer (A2X / A7J)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Adjuster Finish Cover Bolt [3x] - Yes 8 N.m (71 lb in) Front Seat Cushion Cover Retainer Replacement , or Front Seat Cushion Cover Retainer Replacement , or Front Seat Cushion Cover Retainer Replacement

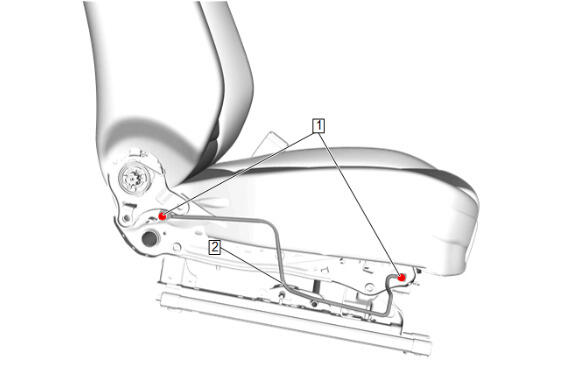

GM6382981Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Cover Retainer (A2V / A7E)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Adjuster Finish Cover Bolt [2x] - Yes 8 N.m (71 lb in) Front Seat Cushion Cover Retainer Replacement , or Front Seat Cushion Cover Retainer Replacement , or Front Seat Cushion Cover Retainer Replacement

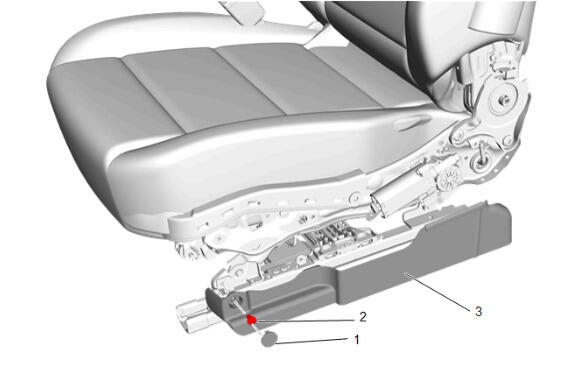

GM6382987Courtesy of GENERAL MOTORS COMPANY
Front Seat Adjuster Finish Cover (A2X / A7J)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Front Seat Adjuster Finish Cover Bolt - Yes 8 N.m (71 lb in) Front Seat Adjuster Finish Cover Replacement , or Front Seat Adjuster Finish Cover Replacement , or Front Seat Adjuster Finish Cover Replacement

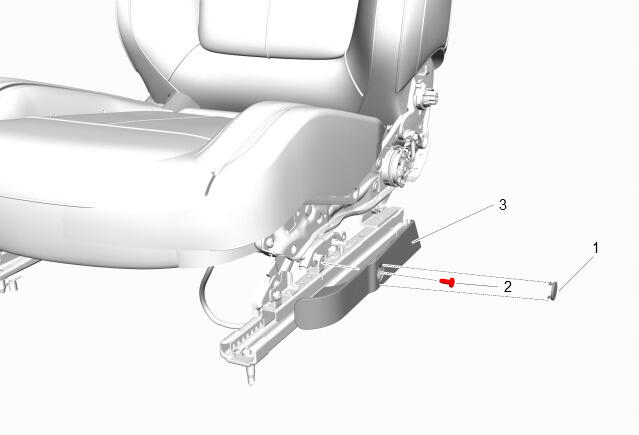

GM6382988Courtesy of GENERAL MOTORS COMPANY
Front Seat Adjuster Finish Cover (A2V / A7E)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Front Seat Adjuster Finish Cover Bolt
Metric (English)
2 Front Seat Adjuster Finish Cover Bolt - Yes 8 N.m (71 lb in) Front Seat Adjuster Finish Cover Replacement , or Front Seat Adjuster Finish Cover Replacement , or Front Seat Adjuster Finish Cover Replacement

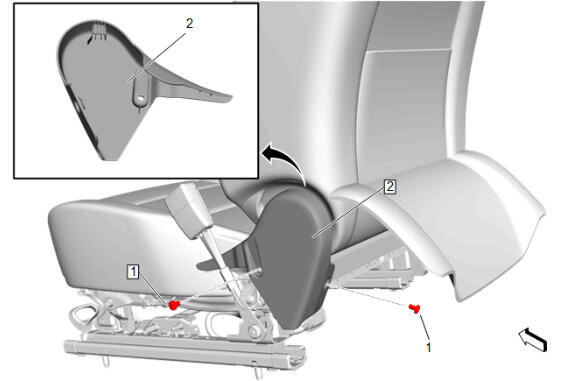

GM6473538Courtesy of GENERAL MOTORS COMPANY
Front Seat Inner Recliner Finish Cover (A2V)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Front Seat Adjuster Finish Cover Bolt [2x] - Yes 8 N.m (71 lb in) Front Seat Inner Recliner Finish Cover Replacement

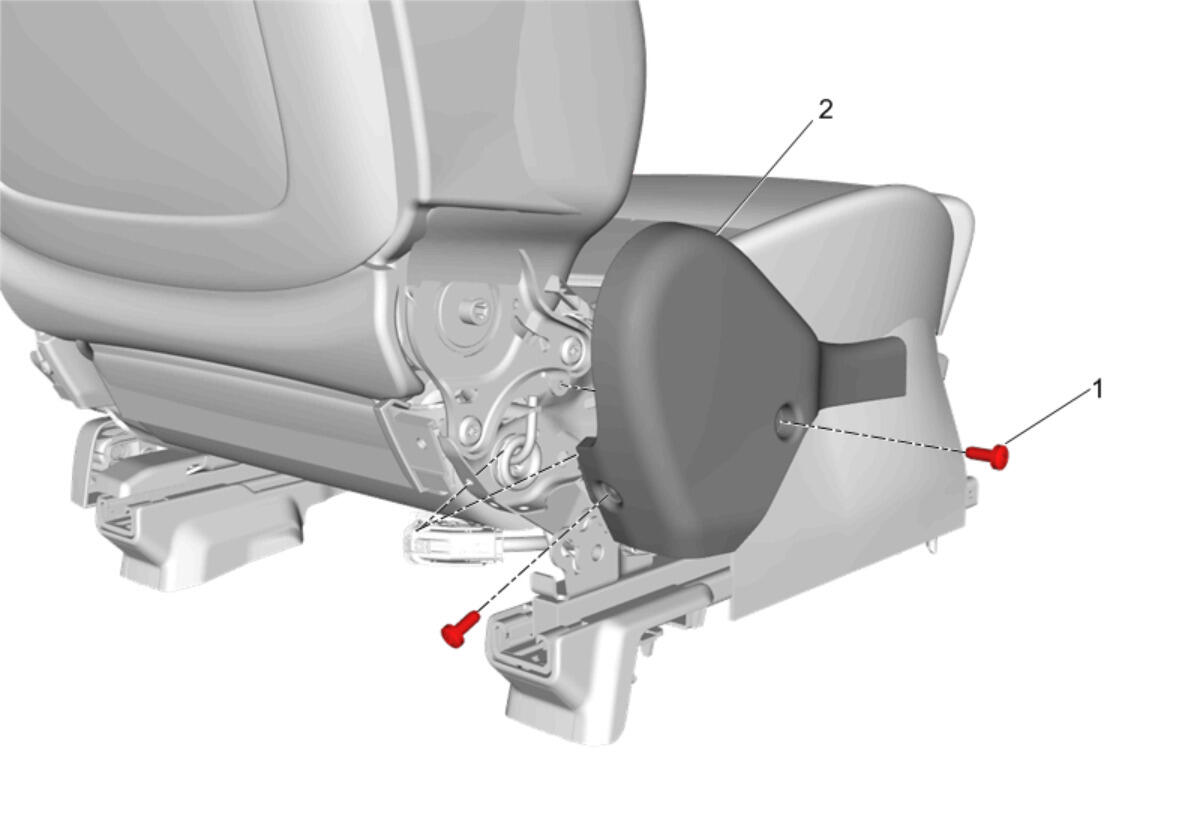

GM4286422Courtesy of GENERAL MOTORS COMPANY
Front Seat Inner Recliner Finish Cover

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Front Seat Bolt [2x] - - 8 N.m (71 lb in) Front Seat Inner Recliner Finish Cover Replacement

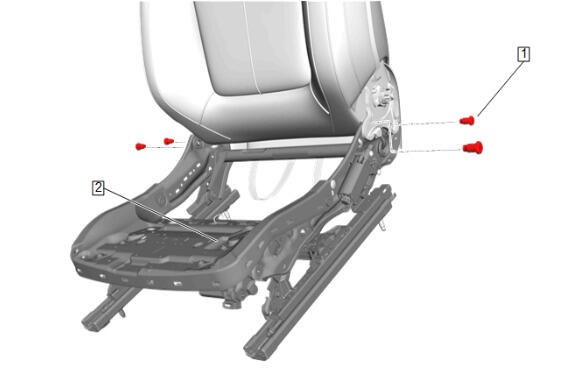

GM6224274Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Frame

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Back Cushion Frame Screw [4x] - Yes 45 N.m (33 lb ft) Front Seat Cushion Frame Replacement , or Front Seat Cushion Frame Replacement , or Front Seat Cushion Frame Replacement

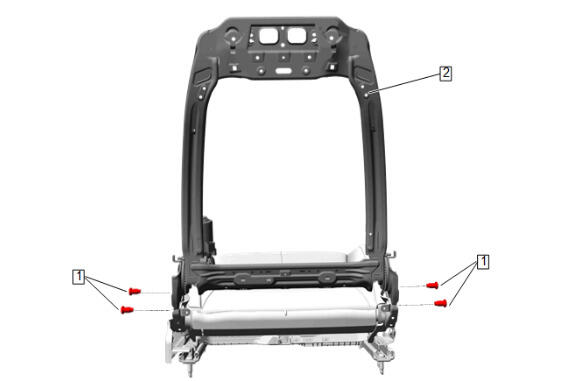

GM6224287Courtesy of GENERAL MOTORS COMPANY
Front Seat Back Frame

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Back Cushion Frame Screw [4x] - Yes 45 N.m (33 lb ft) Front Seat Back Frame Replacement , or Front Seat Back Frame Replacement

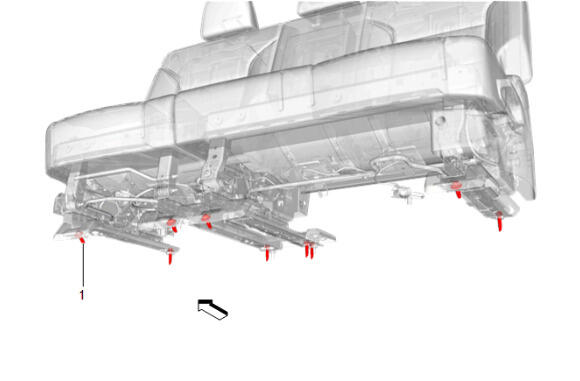

GM6662316Courtesy of GENERAL MOTORS COMPANY
Rear Seat 1

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bolt [9x] - - 45 N.m (33 lb ft) Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)

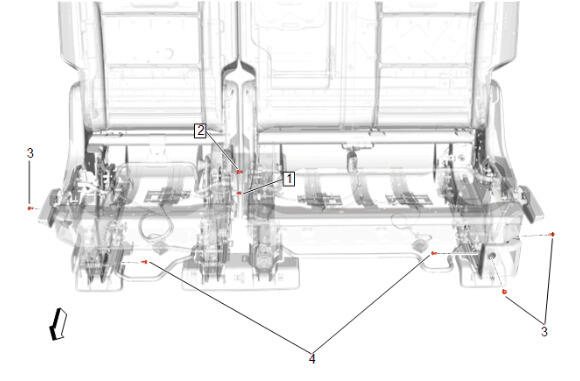

GM6662315Courtesy of GENERAL MOTORS COMPANY
Rear Seat 2

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Inner Hinge Finish Cover Bolt - - 2.5 N.m (22 lb in) Rear Seat Inner Hinge Finish Cover Replacement (Right Side) , or Rear Seat Inner Hinge Finish Cover Replacement (Left Side) , or Rear Seat Inner Hinge Finish Cover Replacement (Captain)
2 Rear Seat Inner Hinge Finish Cover Bolt - - 6 N.m (53 lb in) Rear Seat Inner Hinge Finish Cover Replacement (Right Side) , or Rear Seat Inner Hinge Finish Cover Replacement (Left Side) , or Rear Seat Inner Hinge Finish Cover Replacement (Captain)
3 Rear Seat Outer Hinge Finish Cover Bolt [3x] - - 2.5 N.m (22 lb in) Rear Seat Outer Hinge Finish Cover Replacement (Right Side) , or Rear Seat Outer Hinge Finish Cover Replacement (Left Side) , or Rear Seat Outer Hinge Finish Cover Replacement (Captain)
4 Rear Seat Track Front Outboard Cover Bolt [2x] - - 2.5 N.m (22 lb in) Rear Seat Track Front Outboard Cover Replacement (Captain) , or Rear Seat Track Front Outboard Cover Replacement (Left Side / Right Side)

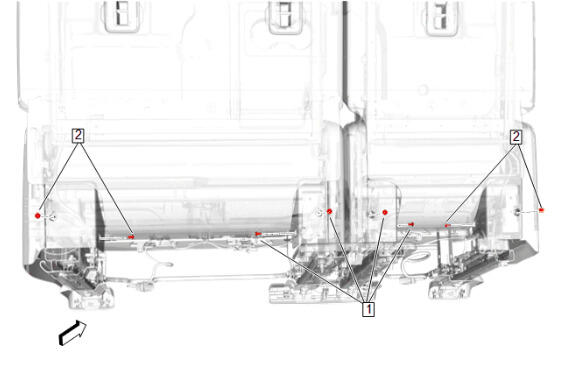

GM6662314Courtesy of GENERAL MOTORS COMPANY
Rear Seat 3

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Frame Inner Finish Cover Bolt [4x] - - 2.5 N.m (22 lb in) Rear Seat Frame Inner Finish Cover Replacement
2 Rear Seat Frame Outer Finish Cover Bolt [4x] - - 2.5 N.m (22 lb in) Rear Seat Frame Outer Finish Cover Replacement

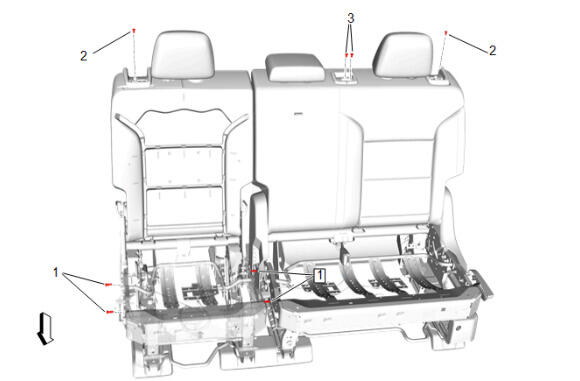

GM6662318Courtesy of GENERAL MOTORS COMPANY
Rear Seat 4

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Hinge Finish Cover Retainer Bolt [4x] - - 9 N.m (80 lb in) Rear Seat Hinge Finish Cover Retainer Replacement
2 Rear Seat Back Latch Release Handle Bezel Fastener [2x] - - 4.7 N.m (42 lb in) Rear Seat Back Latch Release Handle Bezel Replacement
3 Rear Seat Belt Opening Bezel Fastener [2x] - - 2.5 N.m (22 lb in) Rear Seat Belt Opening Bezel Replacement

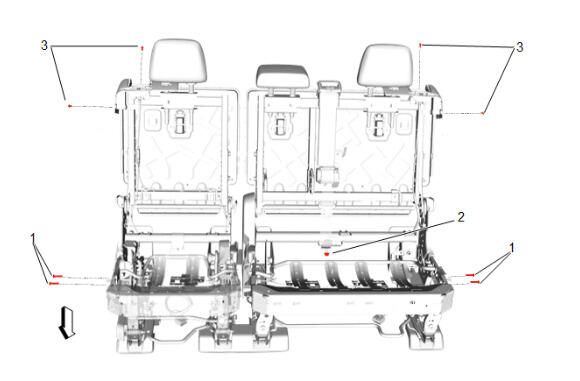

GM6663949Courtesy of GENERAL MOTORS COMPANY
Rear Seat 5

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Latch Cable Bolt [4x] - Yes 9 N.m (80 lb in) Rear Seat Latch Cable Replacement (Right Side) , or Rear Seat Latch Cable Replacement (Left Side) , or Rear Seat Latch Cable Replacement (Captain & Recliner Release) , or Rear Seat Latch Cable Replacement (Track Release) , or Rear Seat Latch Cable Replacement (Captain)
2 Rear Seat Belt Buckle Nut - - 45 N.m (33 lb ft) Rear Seat Cushion Cover and Pad Replacement (Right Side) , or Rear Seat Cushion Cover and Pad Replacement (Left Side) , or Rear Seat Cushion Cover and Pad Replacement (Captain)
3 Rear Seat Back Latch Release Handle Bolt [4x] - - 2.5 N.m (22 lb in) Rear Seat Back Latch Release Handle Replacement (Right Side) , or Rear Seat Back Latch Release Handle Replacement (Left Side) , or Rear Seat Back Latch Release Handle Replacement (Captain)

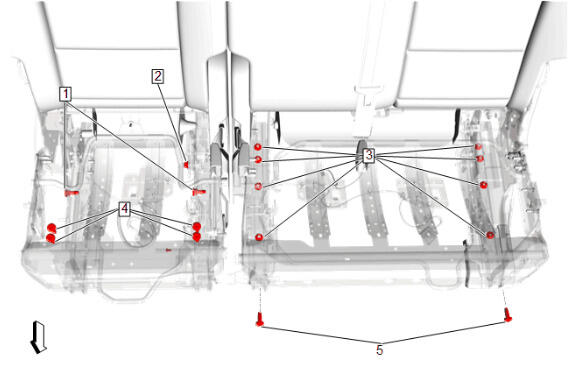

GM6663962Courtesy of GENERAL MOTORS COMPANY
Rear Seat 6

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Cushion Frame Bolt [2x] - - 58 N.m (43 lb ft) Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)
Rear Seat Outer Track Replacement (Right Side) , or Rear Seat Outer Track Replacement (Left Side) , or Rear Seat Outer Track Replacement (Captain)
2 Rear Seat Latch Striker Nut - - 45 N.m (33 lb ft) Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)
3 Rear Seat Cushion Frame Bolt [8x] - - 45 N.m (33 lb ft) Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)
Rear Seat Outer Track Replacement (Right Side) , or Rear Seat Outer Track Replacement (Left Side) , or Rear Seat Outer Track Replacement (Captain)
4 Rear Seat Cushion Frame Bolt [4x] - - 35 N.m (26 lb ft) Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)
Rear Seat Outer Track Replacement (Right Side) , or Rear Seat Outer Track Replacement (Left Side) , or Rear Seat Outer Track Replacement (Captain)
5 Rear Seat Cushion Frame Bolt [2x] - - 58 N.m (43 lb ft) Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)
Rear Seat Outer Track Replacement (Right Side) , or Rear Seat Outer Track Replacement (Left Side) , or Rear Seat Outer Track Replacement (Captain)

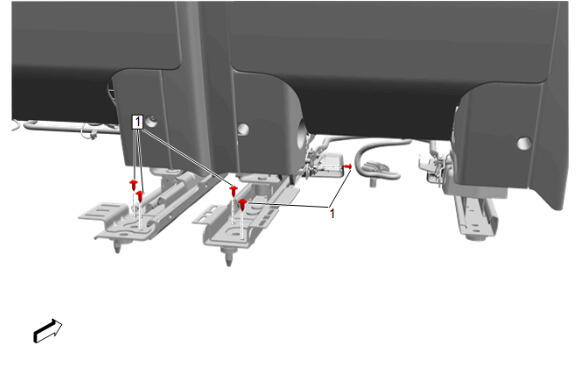

GM6663965Courtesy of GENERAL MOTORS COMPANY
Rear Seat 7

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bracket Bolt [5x] - - 2.5 N.m (22 lb in) Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)
Rear Seat Inner Track Replacement (Right Side) , or Rear Seat Inner Track Replacement (Left Side) , or Rear Seat Inner Track Replacement (Captain)

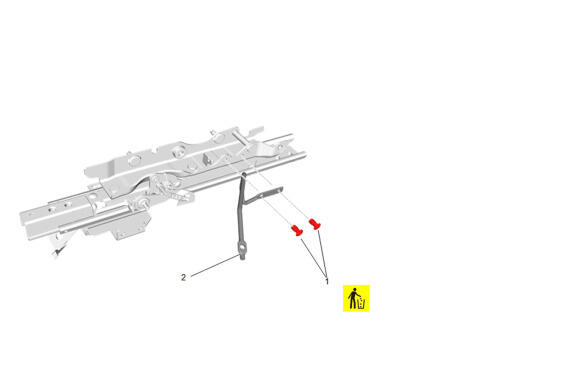

GM6657917Courtesy of GENERAL MOTORS COMPANY
Rear Seat 8

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bracket Rivet [2x] - - - Rear Seat Outer Track Replacement (Right Side) , or Rear Seat Outer Track Replacement (Left Side) , or Rear Seat Outer Track Replacement (Captain)

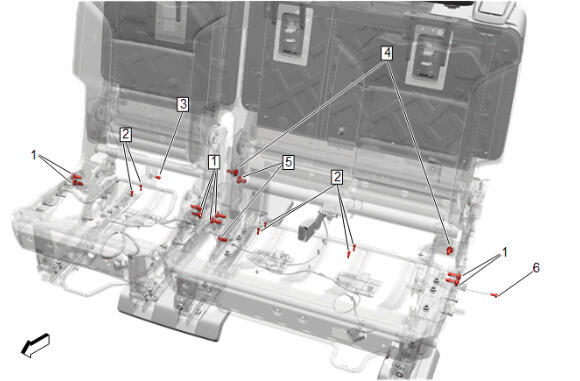

GM6663969Courtesy of GENERAL MOTORS COMPANY
Rear Seat 9

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Cushion Frame Bolt [8x] - Yes 58 N.m (43 lb ft) Rear Seat Cushion Frame Replacement (Right Side) , or Rear Seat Cushion Frame Replacement (Left Side) , or Rear Seat Cushion Frame Replacement (Captain)
2 Rear Seat Cushion Frame Bolt [6x] - - 6 N.m (53 lb in) Rear Seat Cushion Frame Replacement (Right Side) , or Rear Seat Cushion Frame Replacement (Left Side) , or Rear Seat Cushion Frame Replacement (Captain)
3 Rear Seat Cushion Frame Bolt - - 9 N.m (80 lb in) Rear Seat Cushion Frame Replacement (Right Side) , or Rear Seat Cushion Frame Replacement (Left Side) , or Rear Seat Cushion Frame Replacement (Captain)
4 Rear Seat Cushion Frame Bolt [2x] - - 58 N.m (43 lb ft) Rear Seat Back Frame Replacement (Right Side) , or Rear Seat Back Frame Replacement (Left Side) , or Rear Seat Back Frame Replacement (Captain)
5 Rear Seat Cushion Frame Bolt [2x] - - 65 N.m (48 lb ft) Rear Seat Back Frame Replacement (Right Side) , or Rear Seat Back Frame Replacement (Left Side) , or Rear Seat Back Frame Replacement (Captain)
6 Rear Seat Cushion Frame Bolt - - 6 N.m (53 lb in) Rear Seat Back Frame Replacement (Right Side) , or Rear Seat Back Frame Replacement (Left Side) , or Rear Seat Back Frame Replacement (Captain)

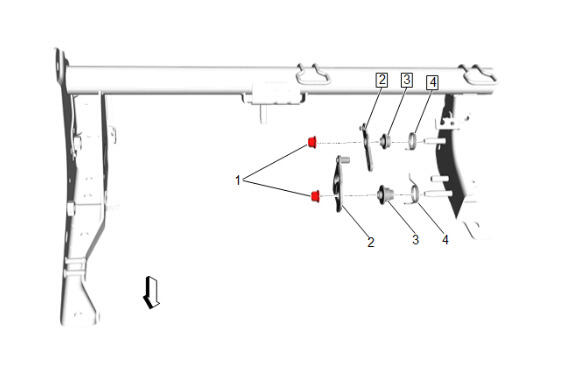

GM6661698Courtesy of GENERAL MOTORS COMPANY
Rear Seat 10

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Nut [2x] - - 45 N.m (33 lb ft) Rear Seat Belt Mounting Tube Replacement

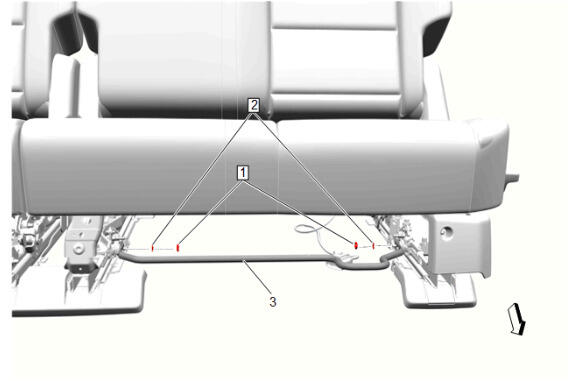

GM6657905Courtesy of GENERAL MOTORS COMPANY
Rear Seat 11

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Nut [2x] - - 4.5 N.m (40 lb in) Rear Seat Adjuster Release Lever Replacement (Right Side) , or Rear Seat Adjuster Release Lever Replacement (Left Side)
GM6657904Courtesy of GENERAL MOTORS COMPANY

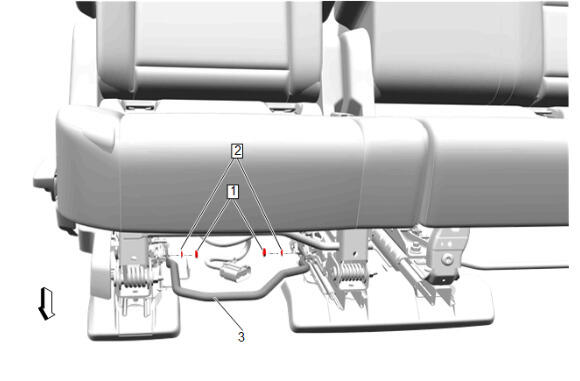

Rear Seat 12

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Nut [2x] - - 4.5 N.m (40 lb in) Rear Seat Adjuster Release Lever Replacement (Right Side) , or Rear Seat Adjuster Release Lever Replacement (Left Side)

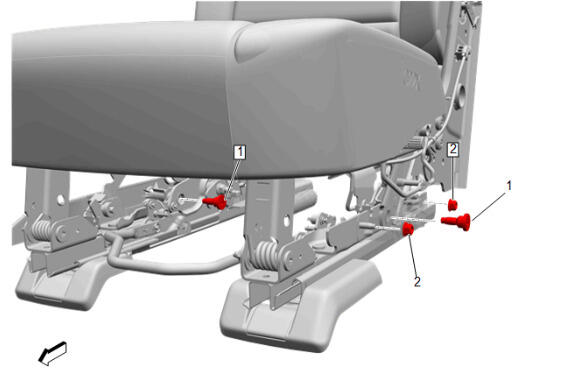

GM6664000Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Back Frame Bolt [2x] - Yes 58 N.m (43 lb ft) Rear Seat Back Frame Replacement (Right Side) , or Rear Seat Back Frame Replacement (Left Side) , or Rear Seat Back Frame Replacement (Captain)
2 Rear Seat Bracket Nut [2x] - - 45 N.m (33 lb ft) Rear Seat Back Frame Replacement (Right Side) , or Rear Seat Back Frame Replacement (Left Side) , or Rear Seat Back Frame Replacement (Captain)

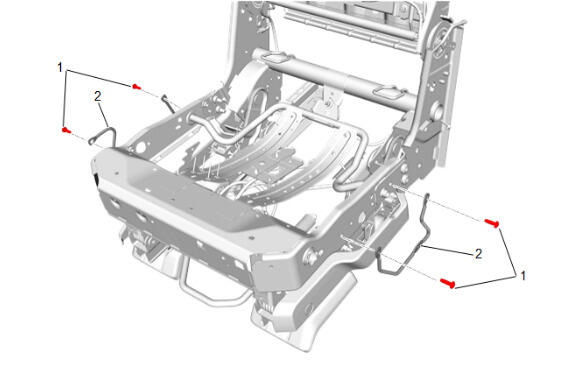

GM6422463Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Hinge Finish Cover Bolt [4x] - Yes 9 N.m (80 lb in Rear Seat Cushion Frame Replacement (Right Side) , or Rear Seat Cushion Frame Replacement (Left Side) , or Rear Seat Cushion Frame Replacement (Captain)

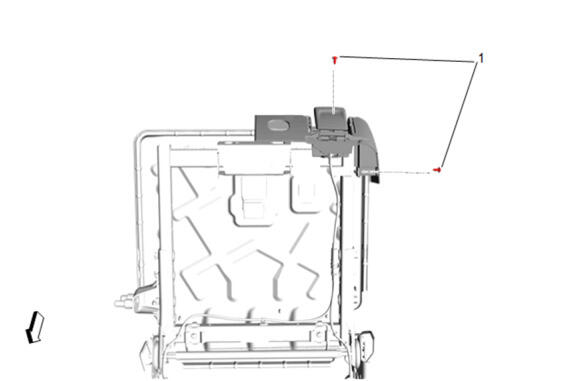

GM6728671Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Back Cushion Latch Release Handle Bolt [2x] - - 2.5 N.m (22 lb in) Rear Seat Back Latch Release Handle Replacement (Right Side) , or Rear Seat Back Latch Release Handle Replacement (Left Side) , or Rear Seat Back Latch Release Handle Replacement (Captain)

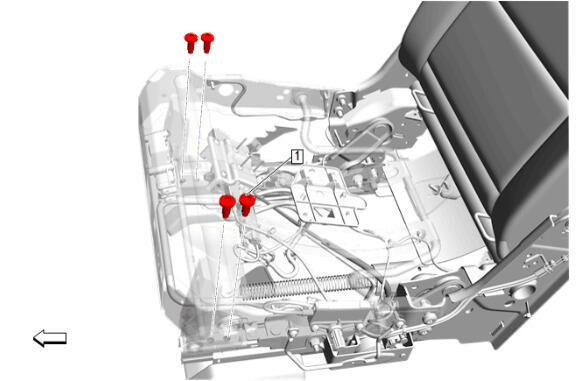

GM6567767Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Cushion Frame Bolt [4x] - - 35 N.m (26 lb ft) Rear Seat Outer Track Replacement (Right Side) , or Rear Seat Outer Track Replacement (Left Side) , or Rear Seat Outer Track Replacement (Captain)

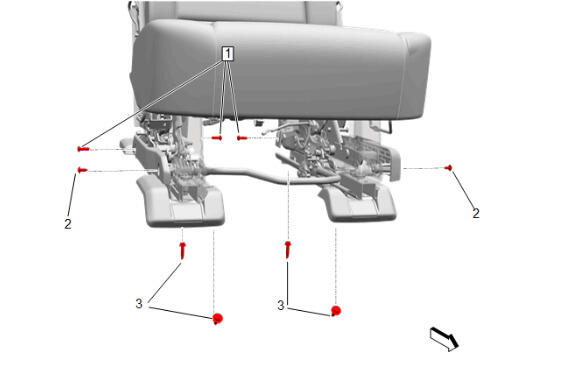

GM6663999Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt (3) - - 3.75 N.m (33 lb in) Rear Seat Track Finish Cover Replacement (Outboard) , or Rear Seat Track Finish Cover Replacement (Inboard)
2 Rear Seat Trim Panel Bolt [2x] - Yes 2.5 N.m (22 lb in) Rear Seat Track Finish Cover Replacement (Outboard) , or Rear Seat Track Finish Cover Replacement (Inboard)
3 Rear Seat Bolt [4x] - - 45 N.m (33 lb ft) Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)

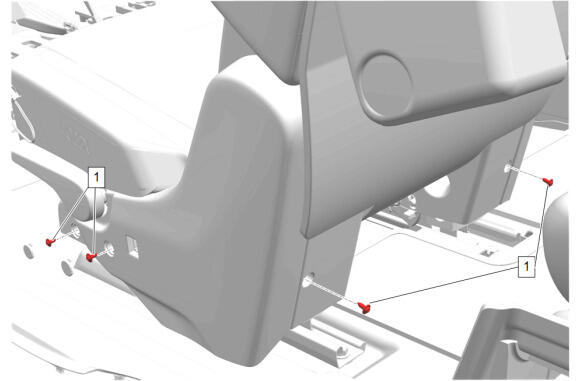

GM6725645Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Rear Seat Belt Buckle Replacement (Right Side) , or Rear Seat Belt Buckle Replacement (Left Side) , or Rear Seat Belt Buckle Replacement (Captain)

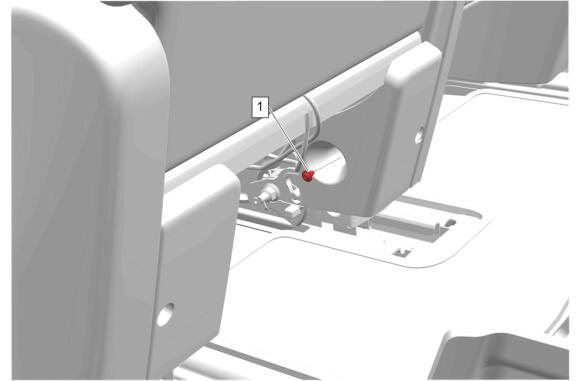

GM6725656Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt - - 2.5 N.m (22 lb in) Rear Seat Belt Buckle Replacement (Right Side) , or Rear Seat Belt Buckle Replacement (Left Side) , or Rear Seat Belt Buckle Replacement (Captain)

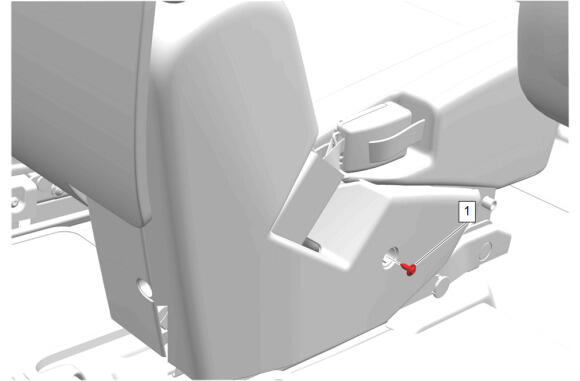

GM6725653Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt - - 2.5 N.m (22 lb in) Rear Seat Belt Buckle Replacement (Right Side) , or Rear Seat Belt Buckle Replacement (Left Side) , or Rear Seat Belt Buckle Replacement (Captain)

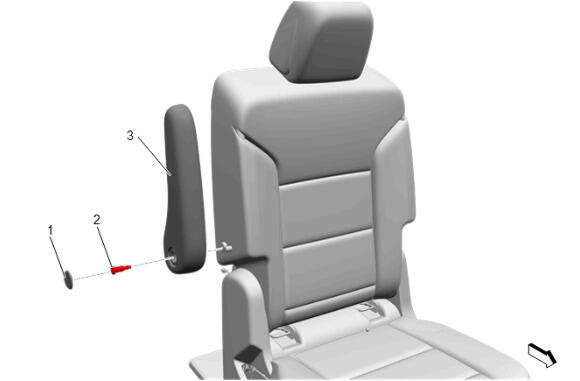

GM6563541Courtesy of GENERAL MOTORS COMPANY
Rear Seat (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Rear Seat Armrest Fastener - Yes 22 N.m (16 lb ft) Rear Seat Armrest Replacement (Captain)

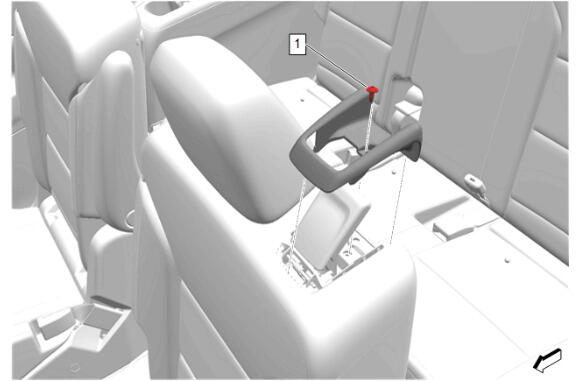

GM6725655Courtesy of GENERAL MOTORS COMPANY
Rear Seat Back Latch Release Handle Bezel (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Back Latch Release Handle Bezel Bolt - - 2.5 N.m (22 lb in) Rear Seat Back Latch Release Handle Replacement (Right Side) , or Rear Seat Back Latch Release Handle Replacement (Left Side) , or Rear Seat Back Latch Release Handle Replacement (Captain)

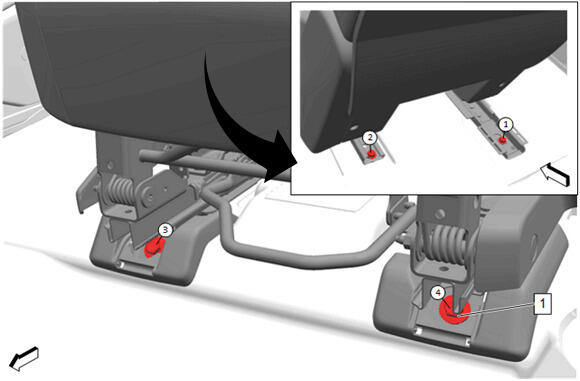

GM6736849Courtesy of GENERAL MOTORS COMPANY
Rear Seat-Left Side (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bolt [4x] - - Rear Seat Bolt Sequence - Left Side (Captain)  Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)

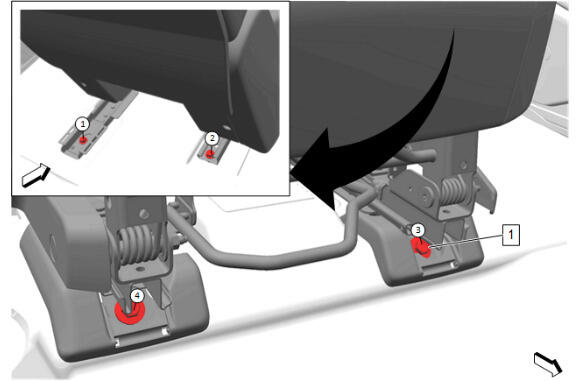

GM6736868Courtesy of GENERAL MOTORS COMPANY
Rear Seat-Right Side (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bolt [4x] - - Rear Seat Bolt Sequence - Right Side (Captain)  Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)

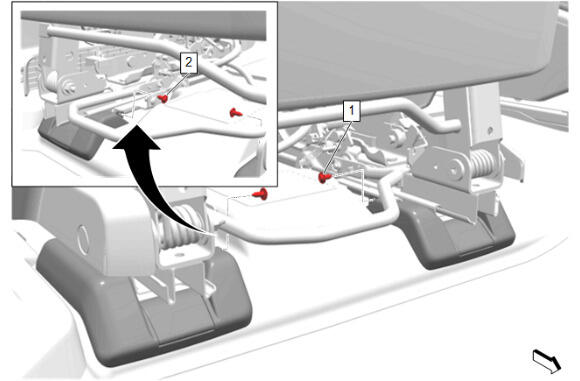

GM6727531Courtesy of GENERAL MOTORS COMPANY
Rear Seat Track Front Cover (Captain)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Track Front Inboard Cover Bolt - - 2.5 N.m (22 lb in) Rear Seat Track Front Inboard Cover Replacement
2 Rear Seat Track Front Outboard Cover Bolt - - 2.5 N.m (22 lb in) Rear Seat Track Front Outboard Cover Replacement (Captain) , or Rear Seat Track Front Outboard Cover Replacement (Left Side / Right Side)

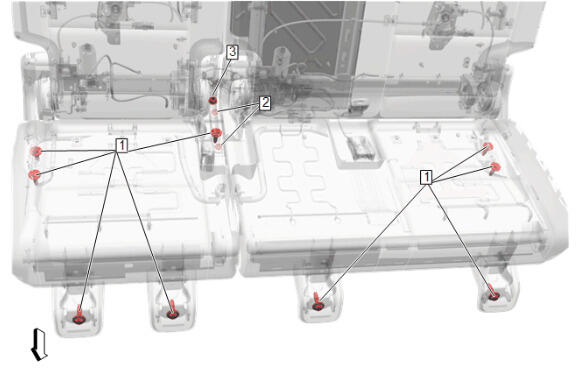

GM6572289Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 3rd Row Seat Bolt [9x] - - 45 N.m (33 lb ft) 3rd Row Seat Removal and Installation , or 3rd Row Seat Removal and Installation
2 Rear Seat Nut @ 3rd Row Seat [2x] - - 16 N.m (12 lb ft) 3rd Row Seat Removal and Installation , or 3rd Row Seat Removal and Installation
3 3rd Row Seat Nut - - 45 N.m (33 lb ft) 3rd Row Seat Removal and Installation , or 3rd Row Seat Removal and Installation

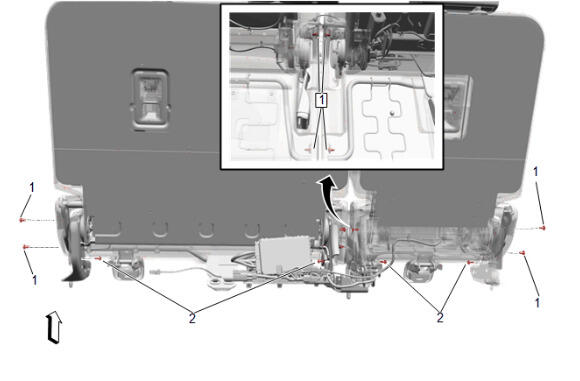

GM6572347Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt [8x] - - 2.5 N.m (22 lb in) 3rd Row Seat Back Hinge Finish Cover Replacement (Inboard) , or 3rd Row Seat Back Hinge Finish Cover Replacement (Outboard)
2 3rd Row Seat Hinge Finish Cover Bolt [4x] - - 3 N.m (27 lb in) 3rd Row Seat Hinge Finish Cover Replacement (Inboard) , or 3rd Row Seat Hinge Finish Cover Replacement (Outboard)

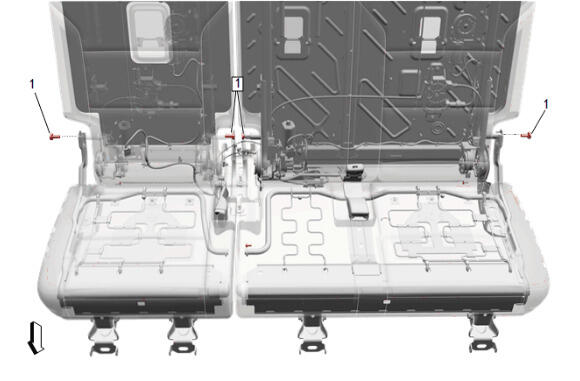

GM6572348Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat Cushion Frame

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 3rd Row Seat Hinge Bolt [4x] - - 25 N.m (18 lb ft) 3rd Row Seat Cushion Frame Replacement (Right Side) , or 3rd Row Seat Cushion Frame Replacement (Left Side)

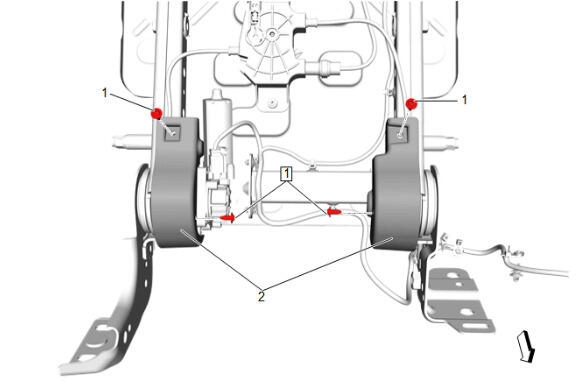

GM6560851Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat Frame Inner Finish Cover (Power)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) 3rd Row Seat Frame Inner Finish Cover Replacement , or 3rd Row Seat Frame Inner Finish Cover Replacement

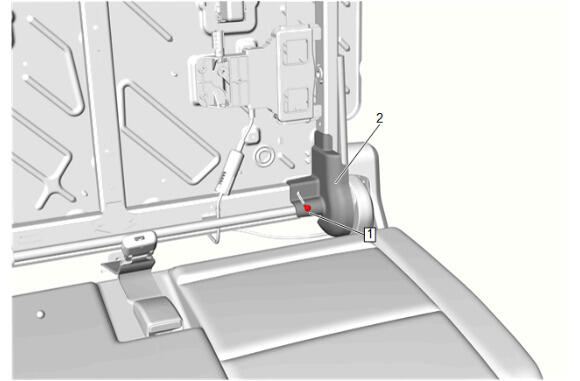

GM6417877Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat Frame Inner Finish Cover (Manual)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Trim Panel Bolt - - 2.5 N.m (22 lb in) 3rd Row Seat Frame Inner Finish Cover Replacement , or 3rd Row Seat Frame Inner Finish Cover Replacement

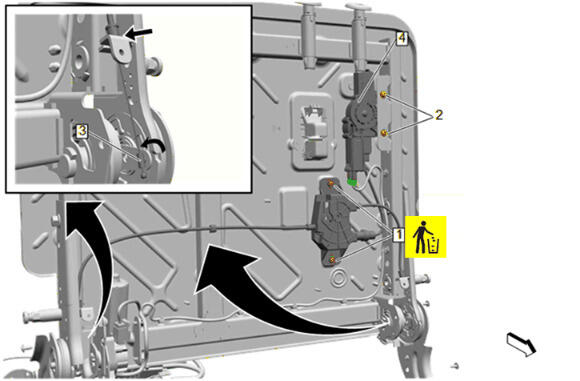

GM6562500Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat Pull Strap (Power)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 3rd Row Seat Pull Strap Bolt [2x] - - 6 N.m (53 lb in) 3rd Row Seat Pull Strap Replacement , or 3rd Row Seat Pull Strap Replacement
Rear Seat Bolt Sequence - Left Side (Captain)
GM6736849Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bolt [4x] Yes - 45 N.m (33 lb ft) Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)
Rear Seat Bolt Sequence - Right Side (Captain)
GM6736868Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bolt [4x] Yes - 45 N.m (33 lb ft) Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)
GM6736868Courtesy of GENERAL MOTORS COMPANY
Rear Seat Bolt Sequence-Left Side

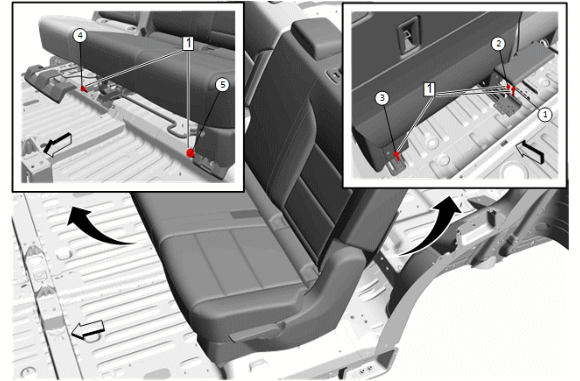

GM6737485Courtesy of GENERAL MOTORS COMPANY
Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Bolt [5x] - - 45 N.m (33 lb ft) Rear Seat Removal and Installation (Right Side) , or Rear Seat Removal and Installation (Left Side) , or Rear Seat Removal and Installation (Captain)
scientia non olet · About Mike's Workshop Manuals
