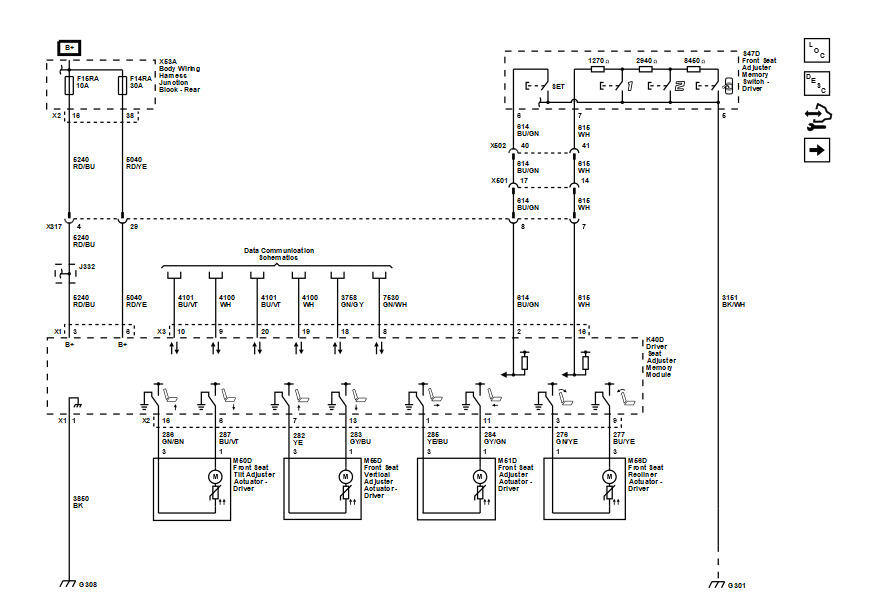

Module Power, Ground, Serial Data, Actuators and Memory Controls

GM6358437

Courtesy of GENERAL MOTORS COMPANY
