Installation Procedure

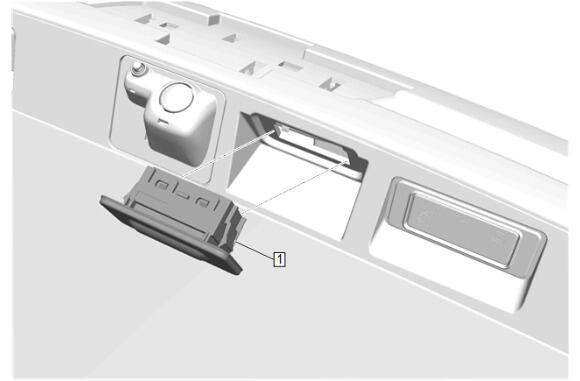

  1. GM6389424Courtesy of GENERAL MOTORS COMPANY

    Liftgate Release Switch - Exterior (1) - Install

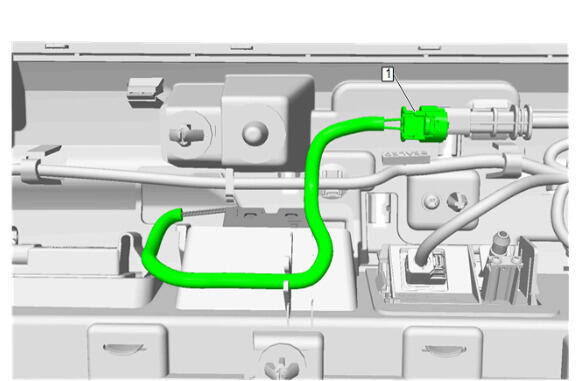

  2. GM6389423Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector (1).

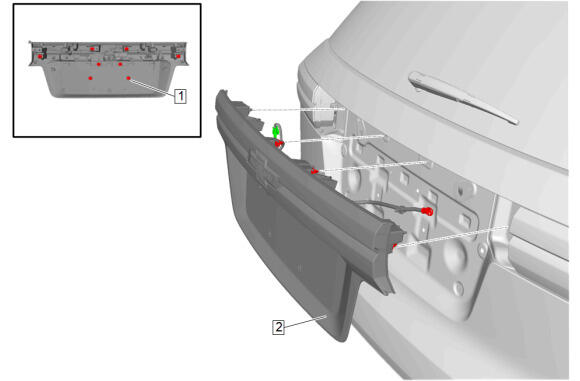

  3. GM6401158Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Center with License Plate Lamp Applique (2) - Install

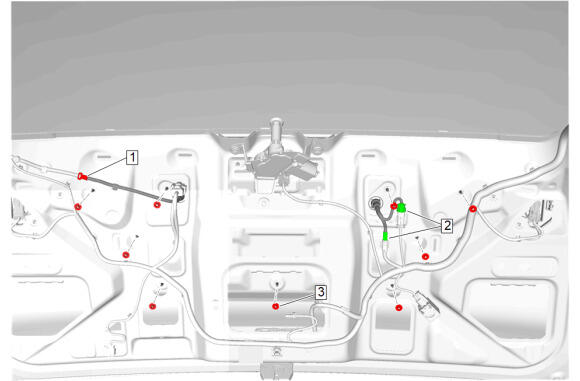

  4. GM6401148Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Closure Center Applique Nut (3) - Install and tighten [9x] - Fastener Specifications

  5. Install the wiring harness to the liftgate.
  6. Connect the electrical connectors and install the wiring harness retainers as necessary. (2)
  7. Connect the rear washer hose. (1)
  8. Install the washer hose grommet to the liftgate.
  9. GM4755895Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  10. Liftgate Lower Trim Finish Panel (3) - Install
  11. Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
  12. Liftgate Inside Pull Handle Cover (1) - Install
