Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

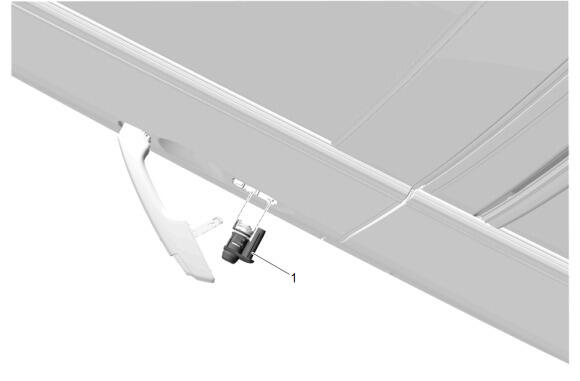

Front Side Door Lock Cylinder (1) @ Front Side Door Outside Handle Bracket (2) - Install

Courtesy of GENERAL MOTORS COMPANY

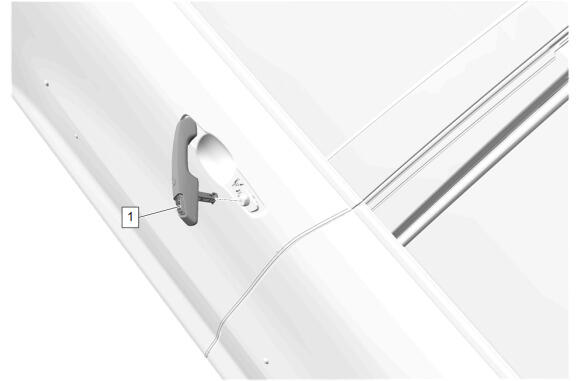

Install the rear part of the front side door outside handle (1) into the front side door outside handle bracket and slide the front side door.

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten - Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Access Hole Plug (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Cover (1) - Install
