Removal Procedure

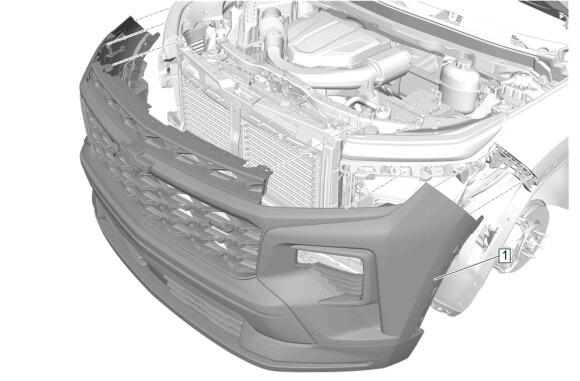

  1. GM6398048Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)

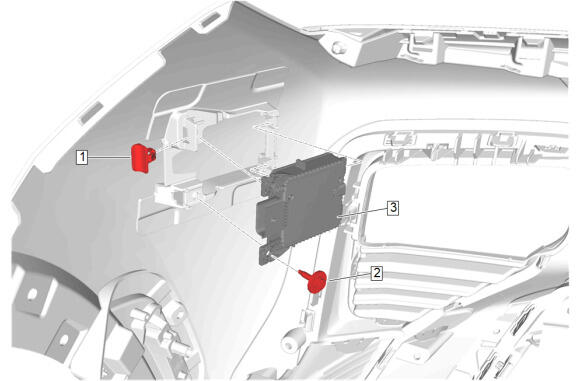

  2. GM6397907Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Short Range Radar Sensor Clip (1) - Remove
  4. Short Range Radar Sensor Bolt (2) - Remove
    5. NOTE:

    Observe the mounting location of the short range radar sensor to ensure proper reinstallation.

  5. Front Short Range Radar Sensor (3) - Remove
