Removal Procedure

  1. GM6398048Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)

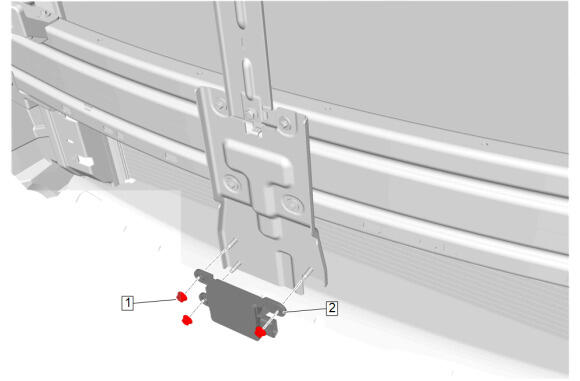

  2. GM6397878Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Forward Range Radar Sensor Nut (1) - Remove [3x]
  4. Forward Range Radar Sensor (2) - Remove
