Installation Procedure

  1. GM5554638Courtesy of GENERAL MOTORS COMPANY

    Forward Collision Alert Display (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications

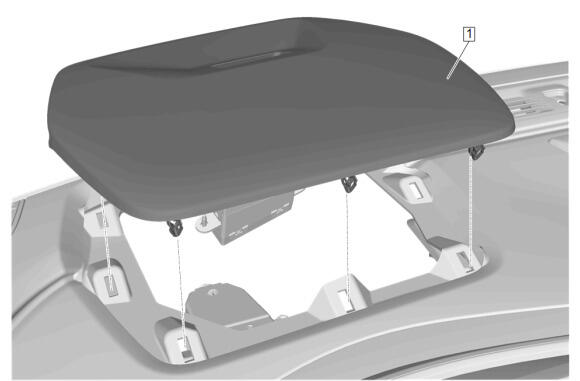

  3. GM6399474Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Forward Collision Alert Display Bezel (1) - Install
