Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool to depress the steering wheel airbag access hole cover detents to remove the left and right steering wheel airbag access hole covers (1).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Airbag Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool to separate the steering wheel airbag plate (1) from the steering wheel horn plate (2).
Courtesy of GENERAL MOTORS COMPANY

Pull the steering wheel airbag away from the steering wheel to expose the electrical connections.
Disconnect the electrical connector.
Steering Wheel Airbag (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Loosen the steering wheel bolt (1) so that 2-3 threads are engaged.
Wiggle the steering wheel until the wheel disengages completely.
Steering Wheel Bolt (1) - Remove
Disconnect the electrical connector.
Steering Wheel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Spoke Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Spoke Cover Bolt (1) - Remove
Disconnect the electrical connectors and reposition the wiring harness as necessary. (2)
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Spoke Cover Bolt (1) - Remove [2x]
Disconnect the electrical connector.
Steering Wheel Trim Spoke Cover Applique Asm (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

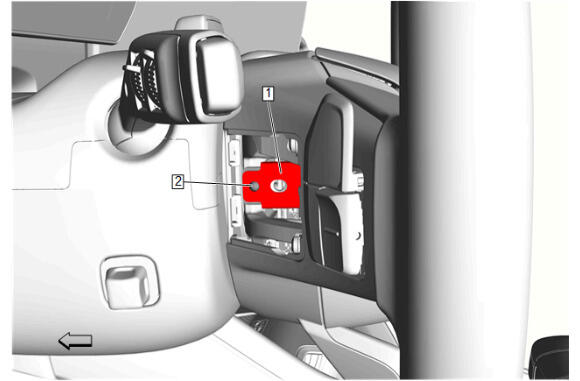

Cruise Control Switch Bolt (1) - Remove [2x]
Cruise Control Switch (2) - Remove
