DTC C1171 C1172 C1173 C1174 Tire Pressure Monitor Sensor Unable To Relearn ETHERNET Cable Overlay For TCP ONSTAR Module (PIT6188E)

Publication date: 2024-10-25
Reference number: PIT6188E
Supersedes refnos: 24-NA-166, PIT6188, PIT6188A, PIT6188B, PIT6188C, PIT6188D

DTC C1171 C1172 C1173 C1174 TIRE PRESSURE MONITOR SENSOR UNABLE TO RELEARN ETHERNET CABLE OVERLAY FOR TCP ONSTAR MODULE

DTC C1171 C1172 C1173 C1174 TIRE PRESSURE MONITOR SENSOR UNABLE TO RELEARN ETHERNET CABLE OVERLAY FOR TCP ONSTAR MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 24-NA-166, Date of Issue:  Oct 25, 2024
Supercedes: This Service Bulletin replaces PIT6188E. Please discard all versions of PIT6188.

SERVICE INFORMATION

Brand: Model: Model Year: VIN: Engine: Transmission:
from to from to
Buick Enclave 2025 2025 SOP September 24, 2024
Chevrolet Traverse 2024 2024 LK0
GMC Acadia 2024 2024
Involved Region or Country  North America, Middle East
Condition  Some customers may comment on a Tire Pressure lamp illuminated and/or message on the dash. The dealer may also not be able to perform the tire pressure learn for one or both front tires.
NOTE:

If only the rear Tire Pressure Monitors are setting, then it is not related to this issue.


Technician may find one or more of the following DTCs:
DTCs C1171, C1172, C1172, and/or C1174.
Cause  The causes of the condition may be interference from OnStar module due to an issue grounding from the X7 connector on the Ethernet cable. This issue can also be intermittent.
Correction  Replace Ethernet cable with overlay. Refer to the Service Procedure below.

SERVICE PROCEDURE

IMPORTANT:

Service agents must comply with all International, Federal, State, Provincial, and/or Local laws applicable to the activities it performs under this bulletin, including but not limited to handling, deploying, preparing, classifying, packaging, marking, labeling, and shipping dangerous goods. In the event of a conflict between the procedures set forth in this bulletin and the laws that apply to your dealership, you must follow those applicable laws.

IMPORTANT:

This technical service bulletin (TSB) can only be completed by certified repair facilities who have met all specific training, tool and equipment requirements pertaining to the vehicle Brand and Model serviced. Repairs must be performed by a technician who has successfully completed the required training.

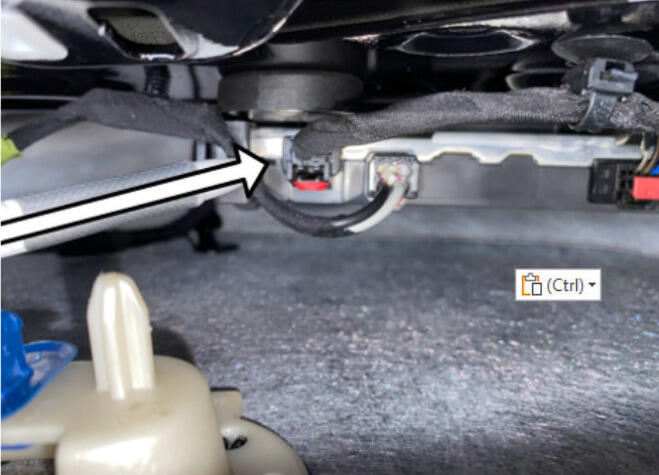

  1. Once confirmed the TPM sensors cannot be learned, gain access to the rear headlining trim panel. DO NOT remove the headlining trim panel, only lower it to gain access Refer to Headlining Trim Panel Replacement in SI. Disconnect the X7 connector and attempt to learn the TPM sensors.
    GM6720400Courtesy of GENERAL MOTORS COMPANY

    If the TPM sensors are able to learn, continue with Ethernet Cable replacement. Otherwise follow SI.

  2. Transfer housing connectors.
  3. Fold the 3rd row seats forward.
  4. Remove the Rear Compartment Floor Stowage Compartment Divider. Refer to Rear Compartment Floor Stowage Compartment Divider Replacement  in SI.
  5. Remove the Right-Hand Front Side Door Sill Garnish Molding. Refer to Front Side Door Sill Garnish Molding Replacement  in SI.
  6. Remove the Right-Hand Rear Side Door Sill Garnish Molding. Refer to Rear Side Door Sill Garnish Molding Replacement  in SI.
  7. Loosen the Center Pillar Lower Trim Panel from the vehicle. Refer to Center Pillar Lower Trim Panel Replacement   in SI.
    GM6699007Courtesy of GENERAL MOTORS COMPANY

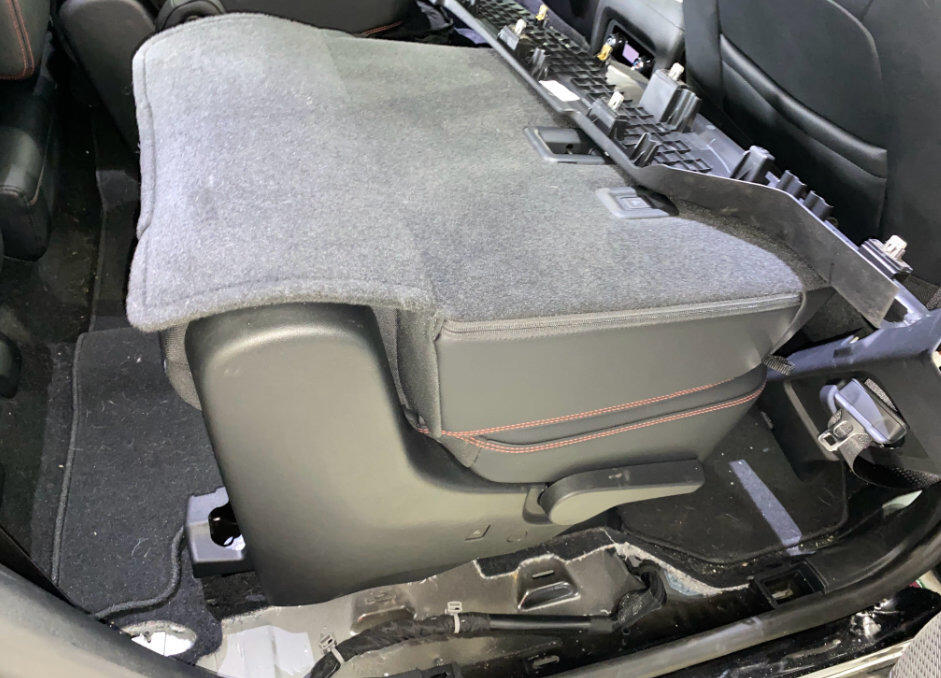

  8. Fold and raise up the Right-Hand Rear seat. DO NOT REMOVE.
  9. Remove the Right-Hand Quarter Upper and Lower Rear Trim Panel. Refer Quarter Lower Rear Trim Panel Replacement (Right Side)  in SI.

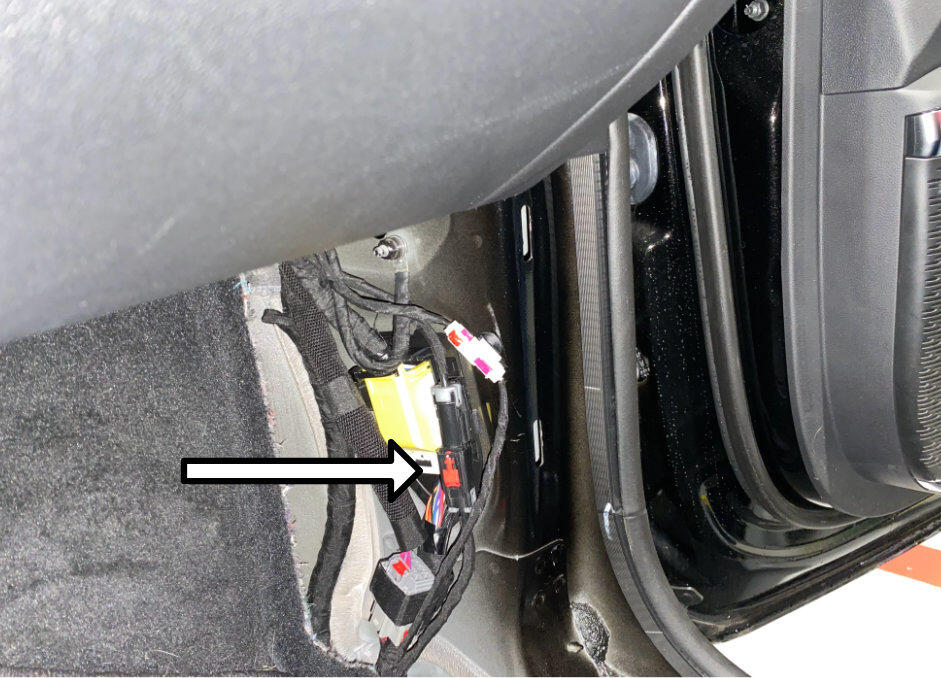

  10. Loosen the Left-Hand Quarter Upper Trim Panel. Refer to Quarter Upper Trim Panel Replacement  in SI.
    GM6709785Courtesy of GENERAL MOTORS COMPANY
    GM6699008Courtesy of GENERAL MOTORS COMPANY

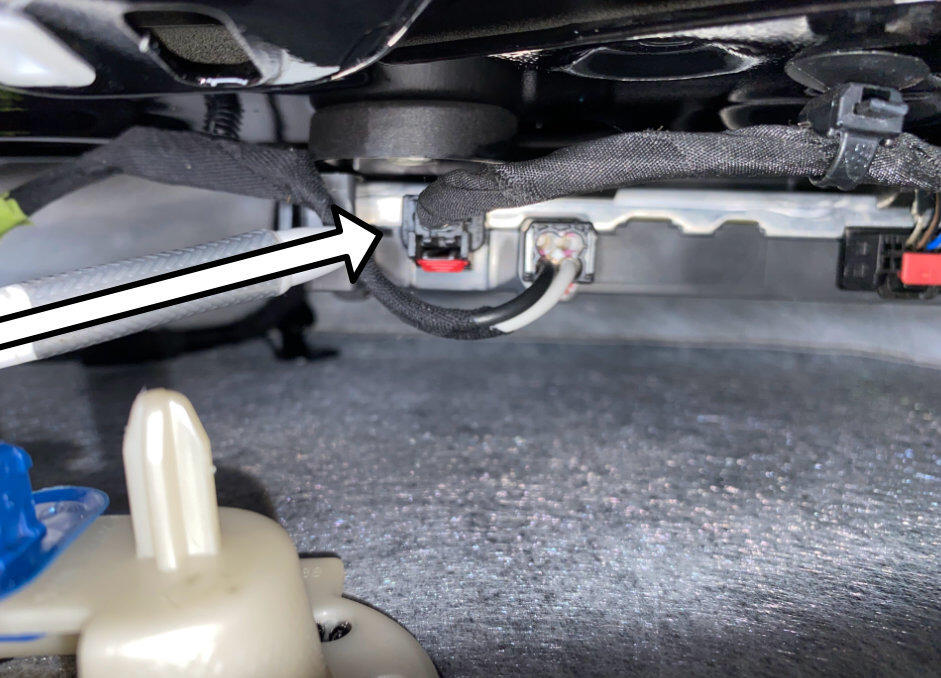

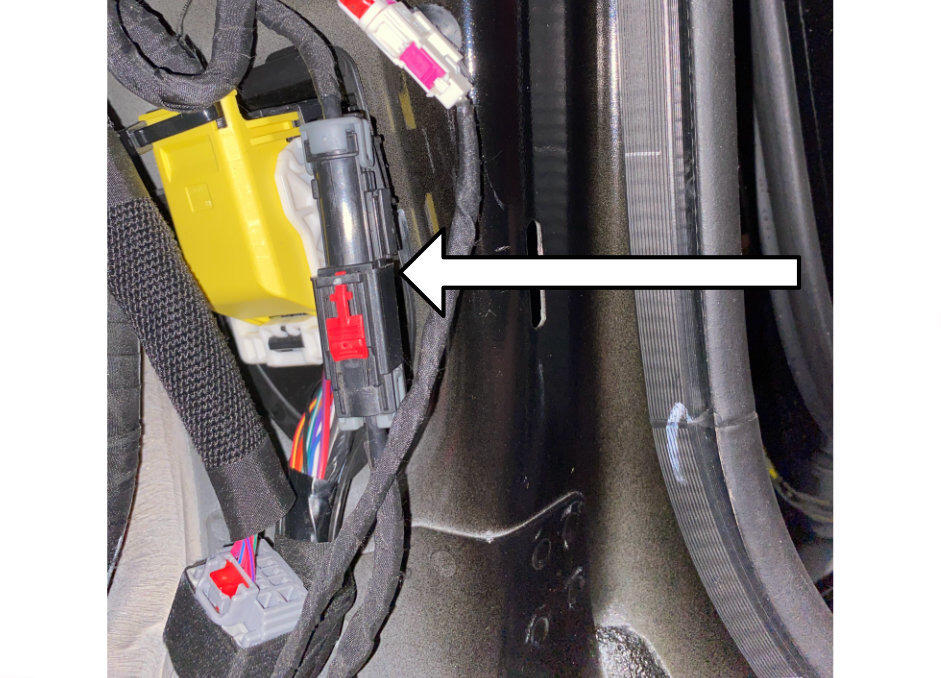

  11. Locate the X205 Ethernet Cable in the Right-Hand Front Passenger Compartment and disconnect.
    GM6699010Courtesy of GENERAL MOTORS COMPANY

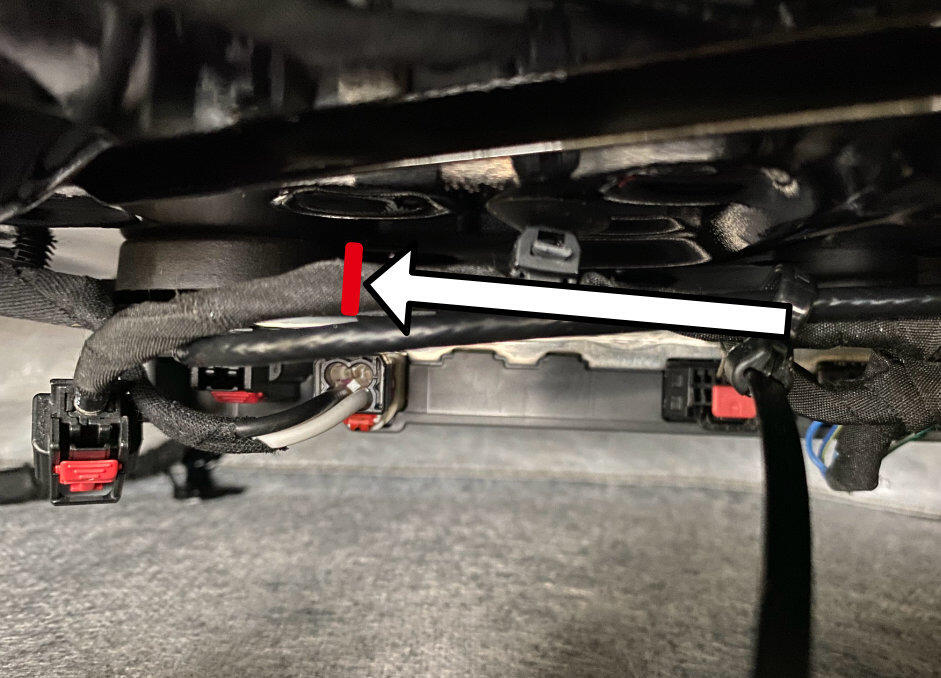

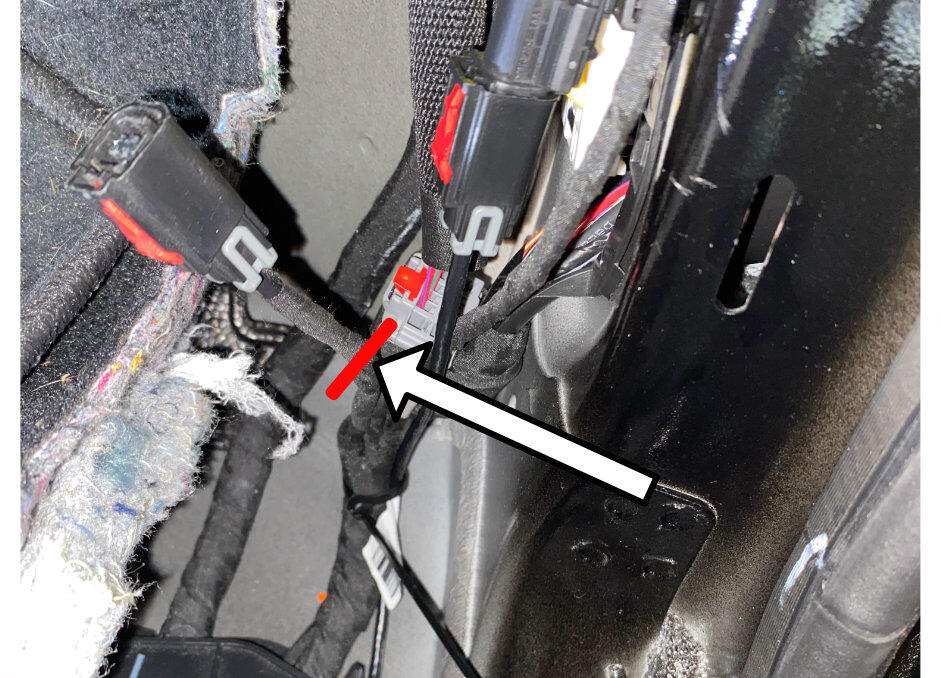

  12. Locate the X7 Ethernet Cable at the Telematic Control Module and disconnect.
    GM6699012Courtesy of GENERAL MOTORS COMPANY
    GM6699015Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Use care to terminate the correct connector.

    NOTE:

    The existing Ethernet cable is bundled with the body harness. The service ethernet cable will be routed next to the body harness. The terminals must be removed from the existing ethernet cables to ensure they are not used in future repairs.

  13. Cut BOTH ends off the existing Ethernet Cable at X205 and X7 of the Telematic Control Module and wrap PVC Electrical tape around both ends of the cable to prevent future use. The unused cable can remain bundled with the body harness.
    IMPORTANT:

    Keep both ends and connectors. The housing will need to be transferred to the new cable.

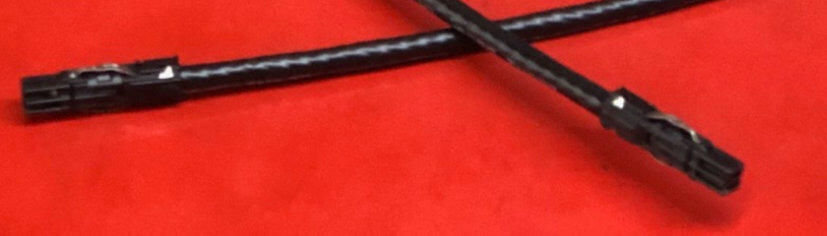

  14. Transfer both housings to the new cable. The new cable will come without the housings.
    GM6720419Courtesy of GENERAL MOTORS COMPANY
  15. Transferring the X205 housing.

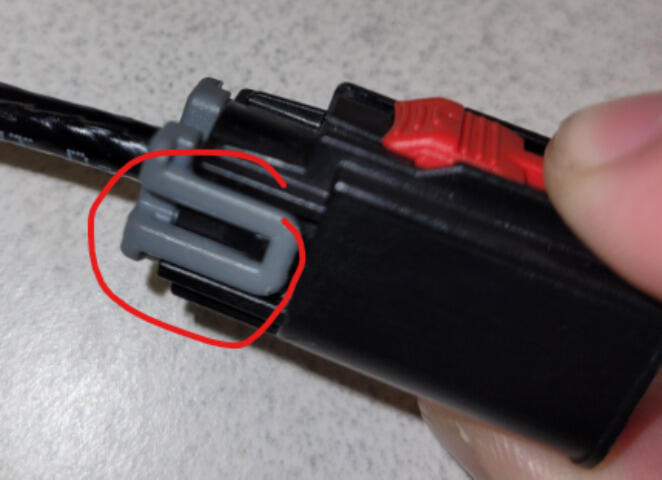

    1. Remove the rear clip but releasing both clips from the outer housing and remove it.
      IMPORTANT:

      Save this clip for the new cable.

      GM6720403Courtesy of GENERAL MOTORS COMPANY

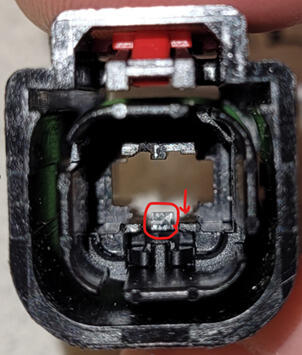

      Empty housing shell. Circle in red is the 1 release tab. Arrow is showing the direction the tab needs to be pressed to release the cable, moving it away from the middle.

      NOTE:

      Very minimal pressure is needed.

      GM6720429Courtesy of GENERAL MOTORS COMPANY

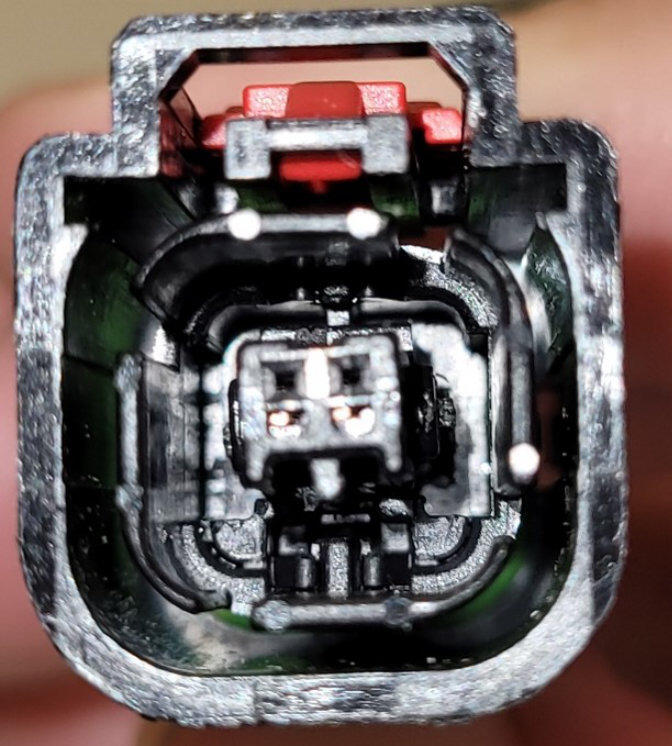

      The X205 housing tab is very difficult to see with the cable installed.

      GM6720432Courtesy of GENERAL MOTORS COMPANY

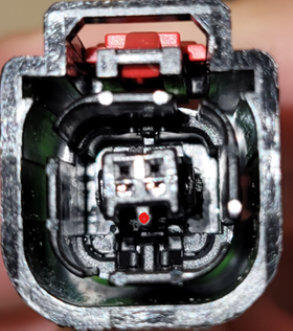

      Following the middle ridge to the back, this is where the housing locks onto the cable.

      GM6720428Courtesy of GENERAL MOTORS COMPANY
      GM6720401Courtesy of GENERAL MOTORS COMPANY

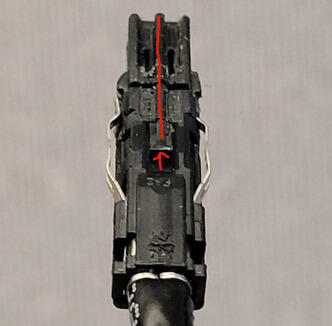

      The best way to get to the release tab is to follow the cable's middle ridge the back (do not ride the wall of the housing or you will miss it, use the cable's middle ridge to guide you). Using light pressure, press away from the center towards the housing to release. Make sure to apply light pulling pressure to the back of the cable so it can release while depressing the tab.

      NOTE:

      Slide off the seal and save it for the new cable.

      GM6720420Courtesy of GENERAL MOTORS COMPANY
  16. Transferring the X205 housing.

    Here is the empty housing shell. Circle in red is the 1 release tab. The arrow is showing the direction the tab needs to be pressed to release the cable. Moving it away from the middle.

    NOTE:

    Very minimal pressure is needed.

    GM6720422Courtesy of GENERAL MOTORS COMPANY

    The X7 housing tab is very difficult to see with the cable installed.

    GM6720426Courtesy of GENERAL MOTORS COMPANY

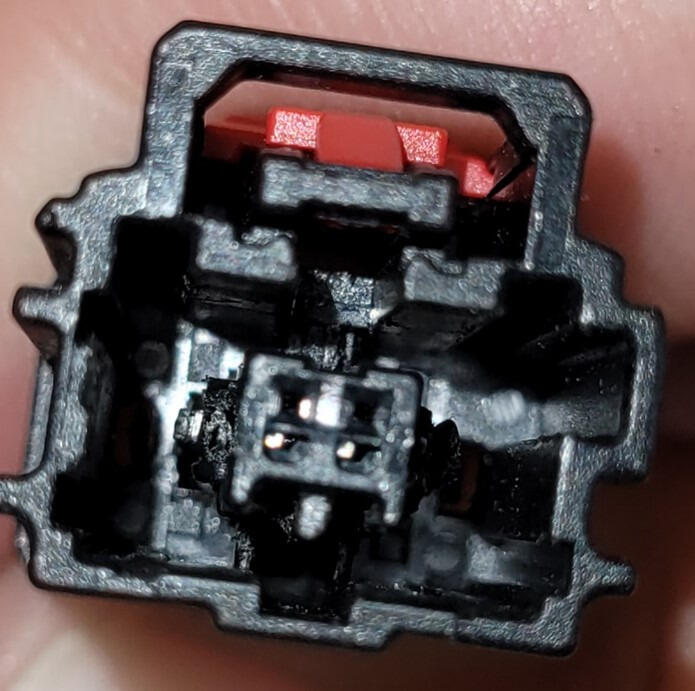

    Following the middle ridge to the back, this is where the housing locks onto the cable.

    GM6720425Courtesy of GENERAL MOTORS COMPANY
    GM6720417Courtesy of GENERAL MOTORS COMPANY

    The best way to get to the release tab is to follow the cable's middle ridge the back (do not ride the wall of the housing or you will miss it, use the cable's middle ridge to guide you.) Using light pressure, press away from the center towards the housing to release. Make sure to apply light pulling pressure to the back of the cable so it can release while depressing the tab.

    GM6706059Courtesy of GENERAL MOTORS COMPANY

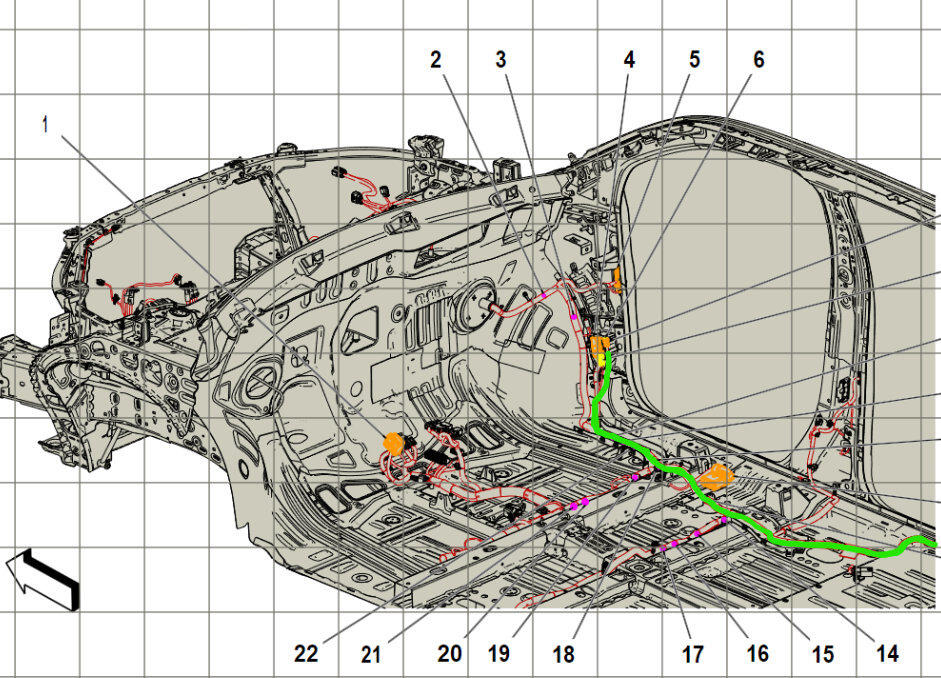

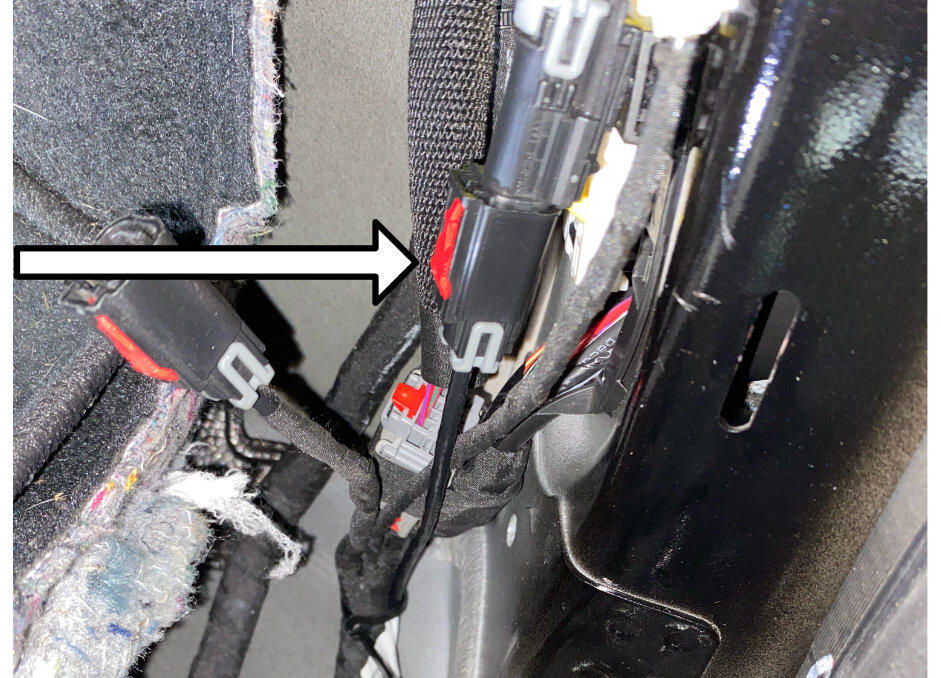

  17. Connect the Replacement Ethernet Cable the connector at X205.
    GM6706063Courtesy of GENERAL MOTORS COMPANY
    GM6706066Courtesy of GENERAL MOTORS COMPANY

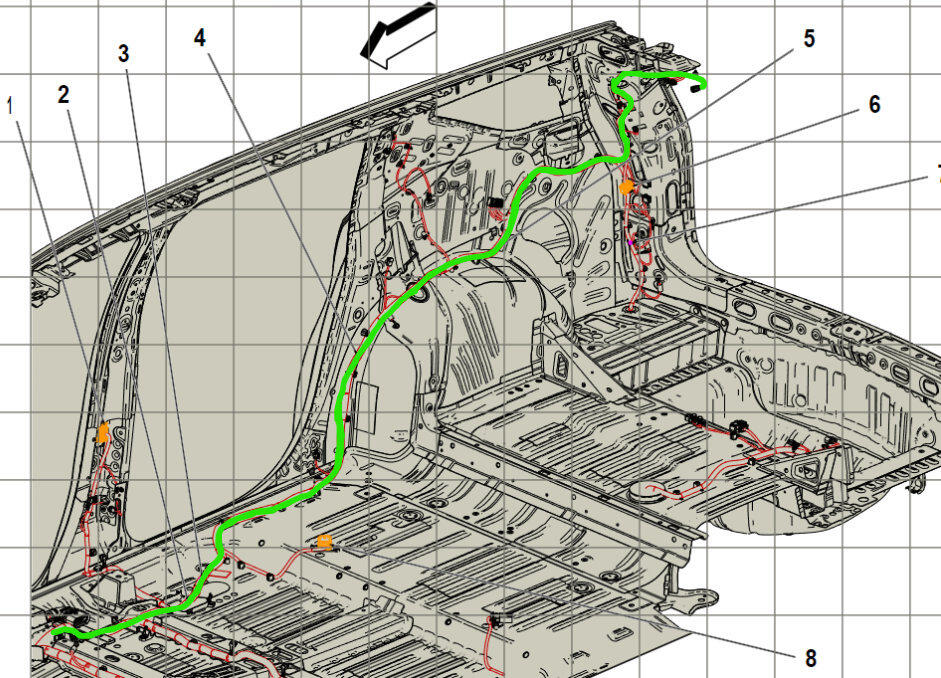

    NOTE:

    Replacement Ethernet Cable routing shown in Green.

    IMPORTANT:

    Use extreme care when handling the new service ethernet cables. Avoid kinks, sharp bends, pinch points, and excessive wire tie tightness.

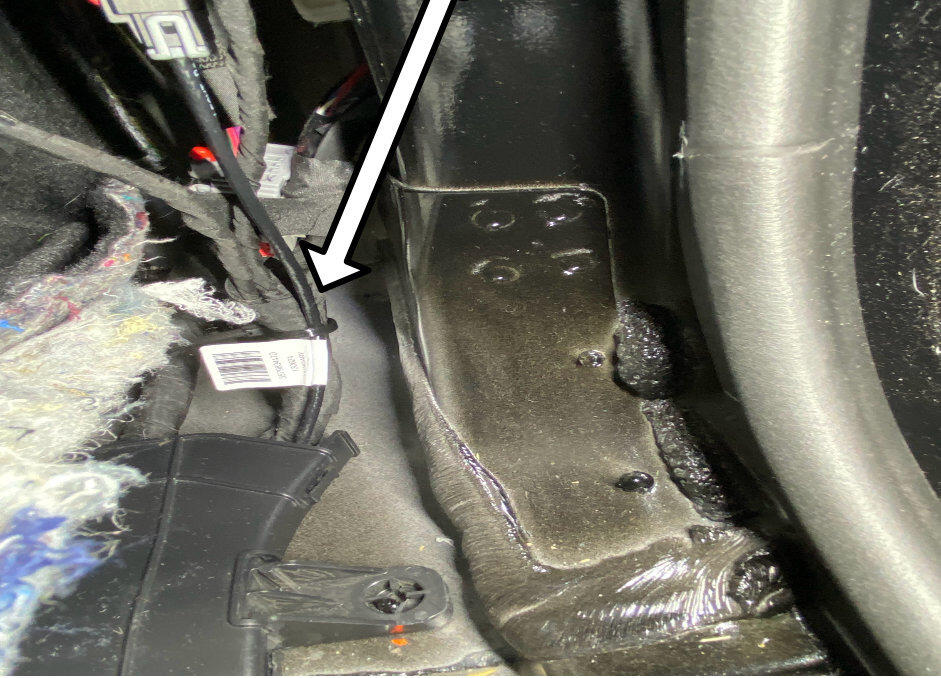

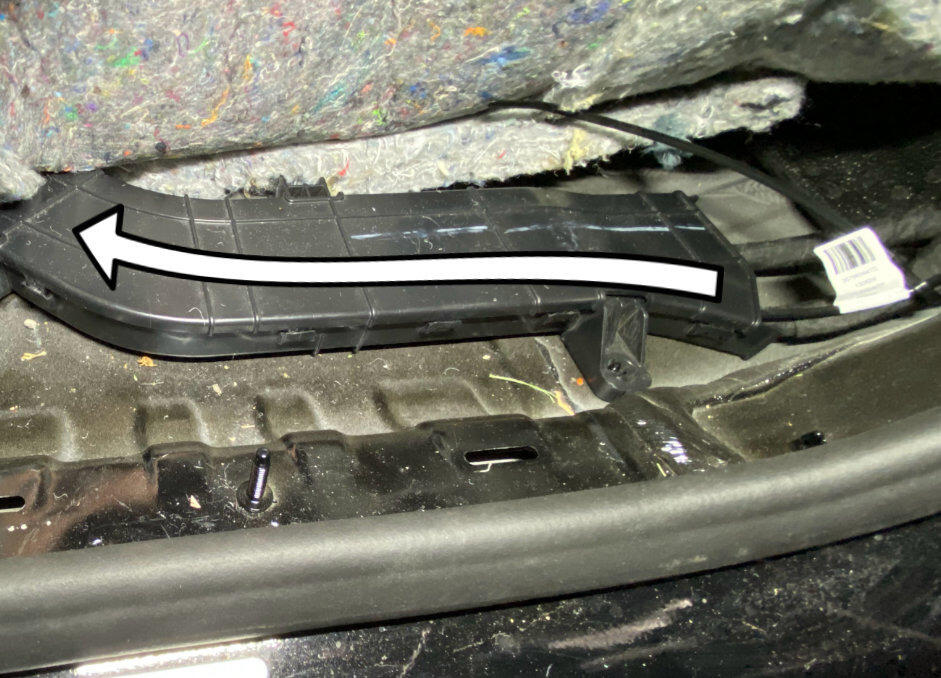

  18. Begin to route the new Service cable starting at X205 and following the Body Wiring Harness running back towards the Telematic Control Module. Use the diagrams above to reference cable routing.
    GM6706076Courtesy of GENERAL MOTORS COMPANY
    GM6706090Courtesy of GENERAL MOTORS COMPANY

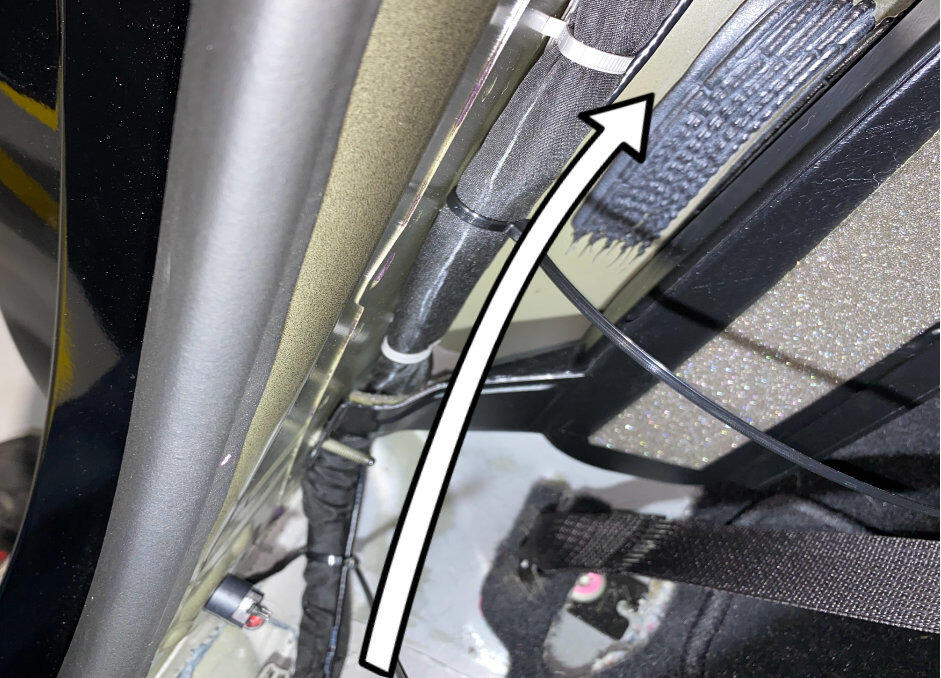

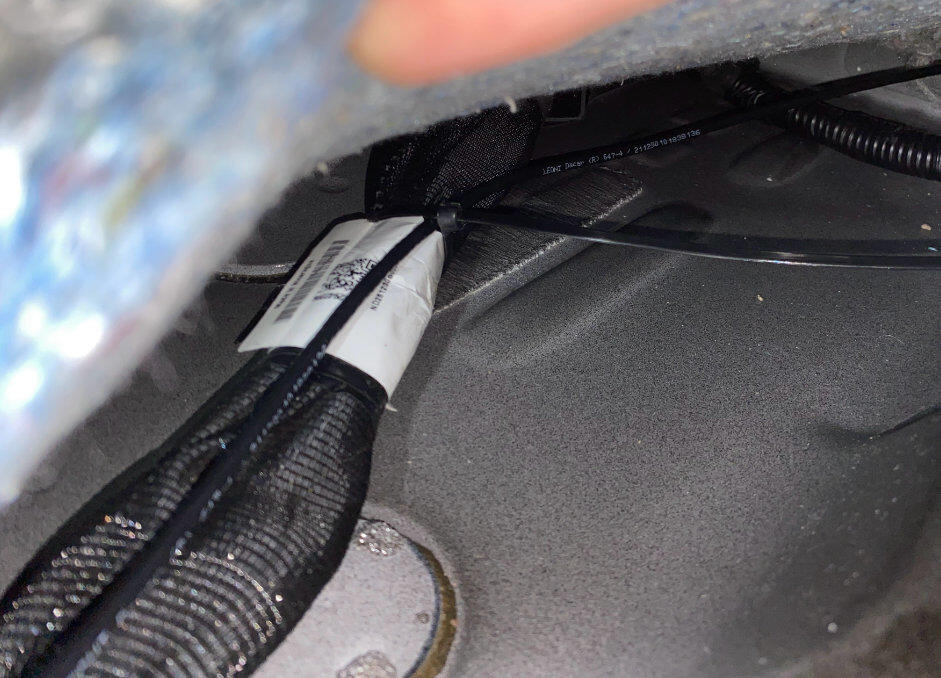

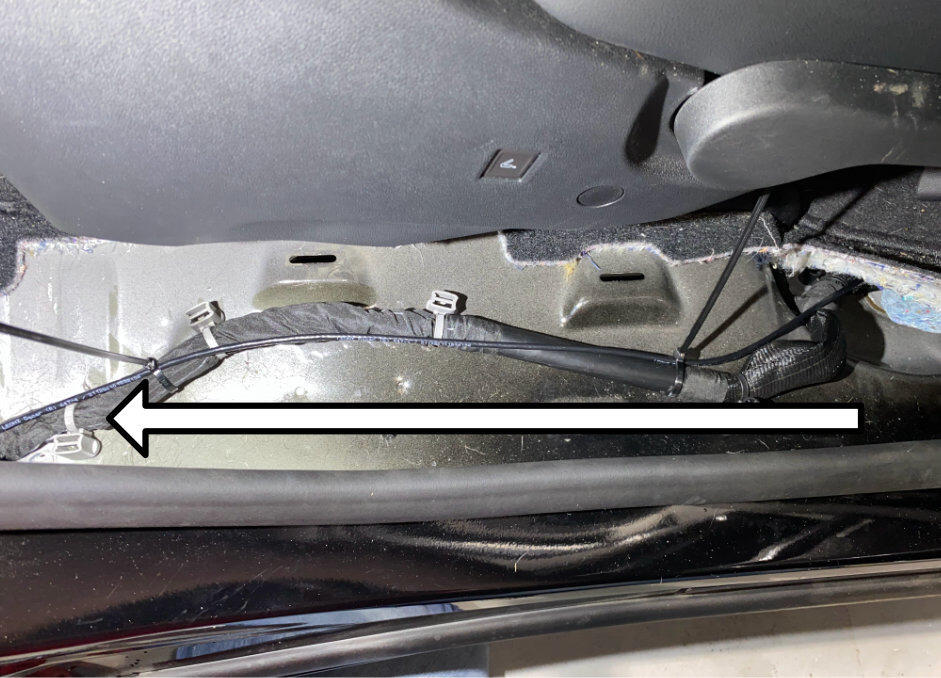

  19. Run the replacement Ethernet Cable through the body wiring harness clamshell and underneath the Front Passenger Seat.
    GM6706097Courtesy of GENERAL MOTORS COMPANY
    GM6706101Courtesy of GENERAL MOTORS COMPANY
    GM6706111Courtesy of GENERAL MOTORS COMPANY

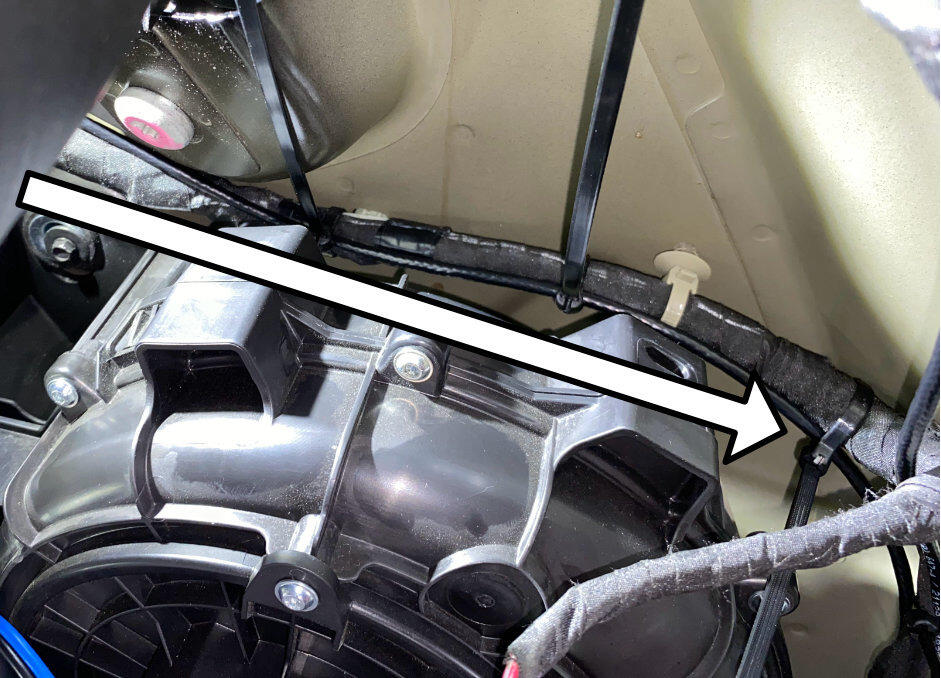

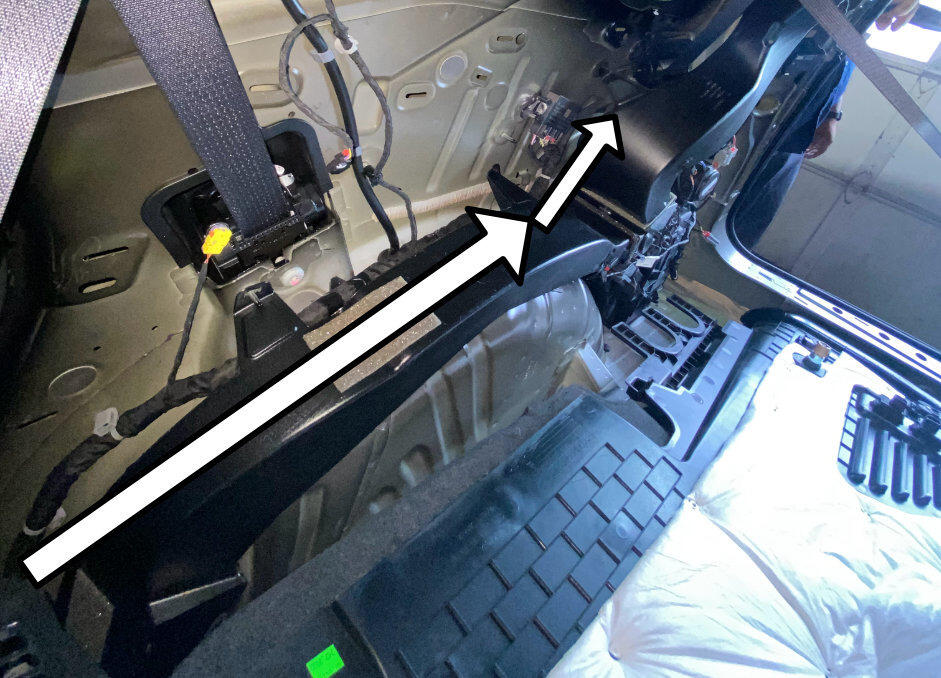

  20. Continue to route the replacement Ethernet Cable alongside the Body Wiring Harness in the rear passenger compartment and up the C-Pillar.
    GM6706120Courtesy of GENERAL MOTORS COMPANY
    GM6706125Courtesy of GENERAL MOTORS COMPANY
  21. Continue to route the replacement Ethernet Cable following the Body Wiring Harness through the Rear HVAC area.
    GM6706129Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    Ensure the replacement Ethernet Cable will have enough slack so that it is not pulling on the connector at X7 of the Telematic Control Module. Failure to do so could damage the connector at the module.

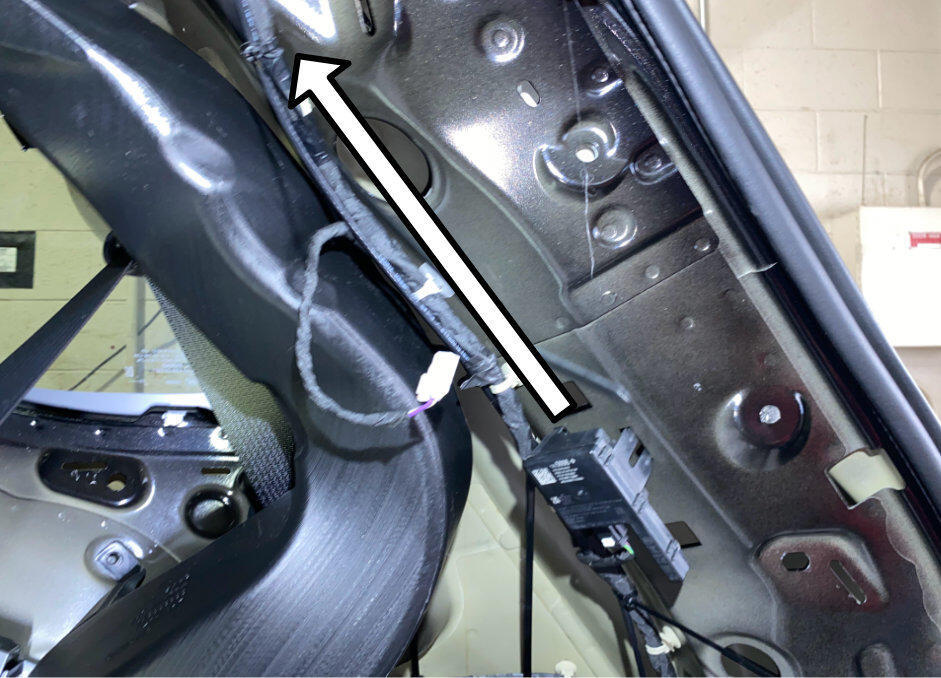

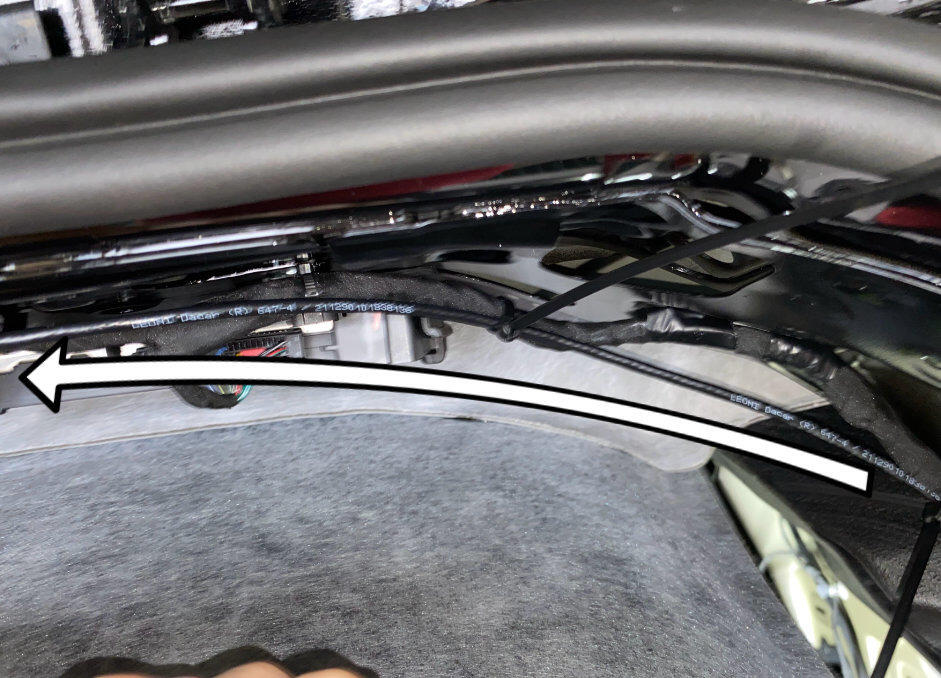

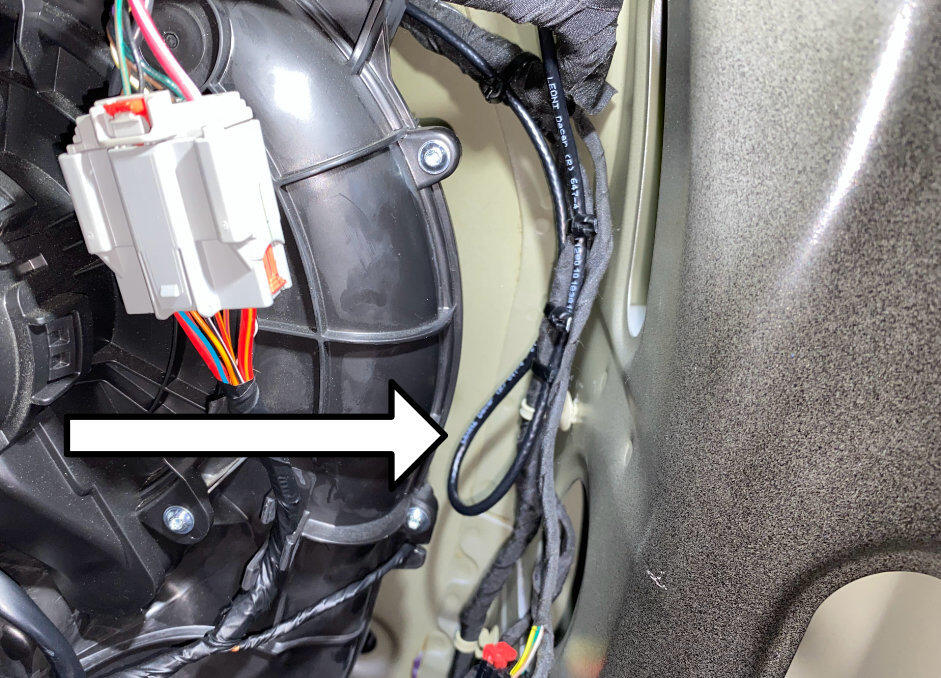

  22. Make a small loop to remove some of the excess cable and secure with a wire tie. Ensure to leave plenty of slack so that the cable will not pull on the connector at X7 of the Telematic Control Module.
    GM6706144Courtesy of GENERAL MOTORS COMPANY
    GM6706155Courtesy of GENERAL MOTORS COMPANY

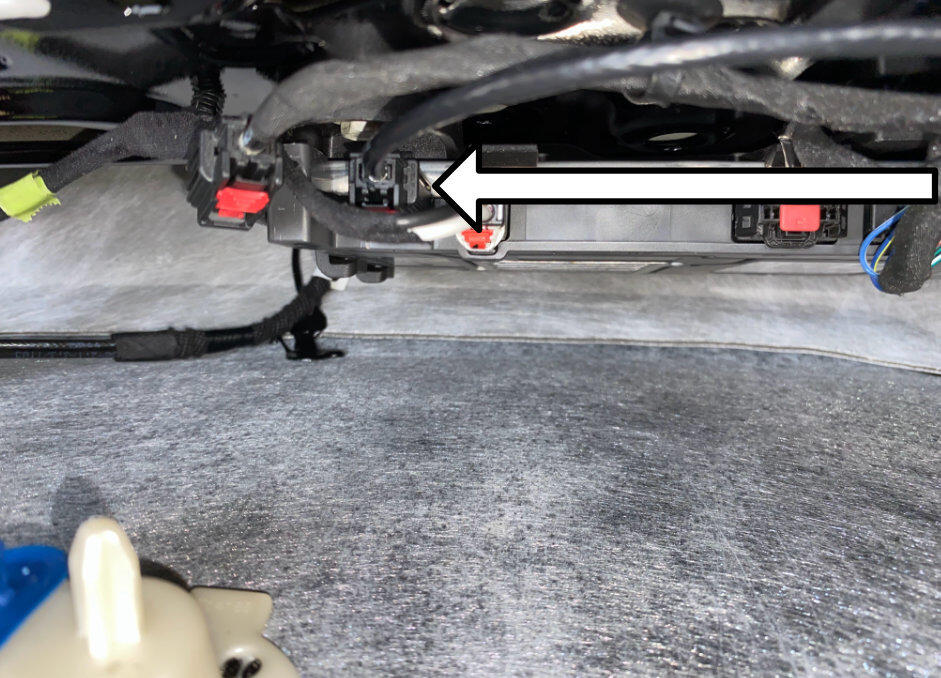

  23. Follow the Body Wiring Harness up the rear of the vehicle and into the rear of the headlining.
    GM6706159Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If there is not an adequate amount of slack in the cable return to the loop made in Step 17 and gain extra slack from the loop. Resecure the loop with a wire tie if necessary.

    IMPORTANT:

    Ensure the replacement cable has plenty of slack and is not pulling on the cable connector plug. Failure to do so could damage the connector at the module.

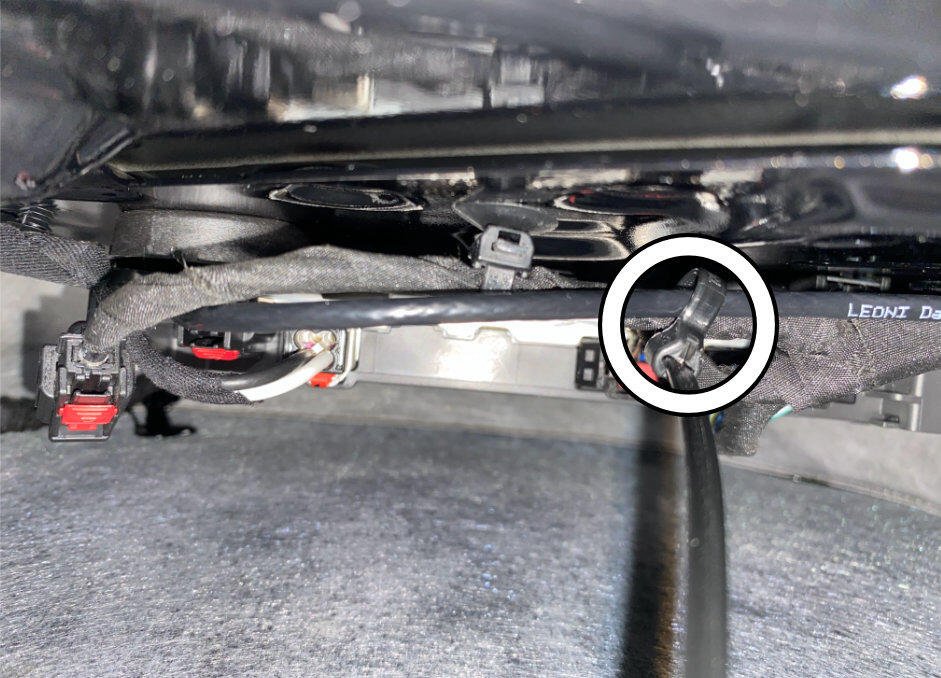

  24. Connect the replacement cable into X7 of the Telematic Control Module. Ensure that the cable has enough slack left to not pull on the X7 connector.
    GM6706169Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    Avoid excessive wire tie tightness on the replacement cable when securing to the Body Wiring Harness.

  25. Add one wire tie around the old cable harness and the new replacement cable near the existing harness tie down. This will aid in securing the connector into the X7 Terminal of the Telematic Control Module.
    IMPORTANT:

    Avoid excessive wire tie tightness on the replacement cable when securing on the Body Wiring Harness.

  26. Secure the replacement cable to the Body Wiring Harness with wire ties. Ensure the replacement cable does not move/rattle.
  27. Reinstall the Headliner as necessary. Refer to Headlining Trim Panel Replacement  in SI.
  28. Reinstall the Left-Hand Quarter Upper Trim Panel. Refer to Quarter Upper Trim Panel Replacement  in SI
  29. Reinstall the Right-Hand Quarter Upper and Lower Trim Panel. Refer to Quarter lower Rear Trim Panel Replacement (Right Side)  in SI.
  30. Reposition the Right-Hand Rear Seat as necessary.
  31. Reinstall the Right-Hand Center Pillar Upper and Lower Trim Panel. Refer to Center Pillar Lower Trim Panel Replacement  in SI.
  32. Reinstall the Right-Hand Rear Side Door Sill Garnish Molding. Refer to Rear Side Door Sill Garnish Molding Replacement  in SI.
  33. Reinstall the Right-Hand Front Side Door Sill Garnish Molding. Refer to Front Side Door Sill Garnish Molding Replacement  in SI.
  34. Reinstall the Rear Compartment Floor Stowage Compartment Divider. Refer to Rear Compartment Floor Stowage Compartment Divider Replacement  in SI.
  35. Fold the 3rd row Seat back as necessary.

PARTS INFORMATION

Causal Part Description Part Number Qty
X Cable, Body Wiring Harness Modular Pair 26501515 1

WARRANTY INFORMATION

For vehicles repaired under the Bumper-to-Bumper coverage (Canada Base Warranty coverage), use the following labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information.

Labor Operation Description Labor Time
*2086678 Ethernet Cable Overlay X7 2.4 hr
*This is a unique Labor Operation for Bulletin use only.

SERVICE INFORMATION

Version  3
Modified  Released September 05, 2024
Revised October 10, 2024 - Removed the GMC Canyon, Hummer EV and Savana, added breakpoint and Middle East.
Revised October 25, 2024 - Added note to Condition Section.
