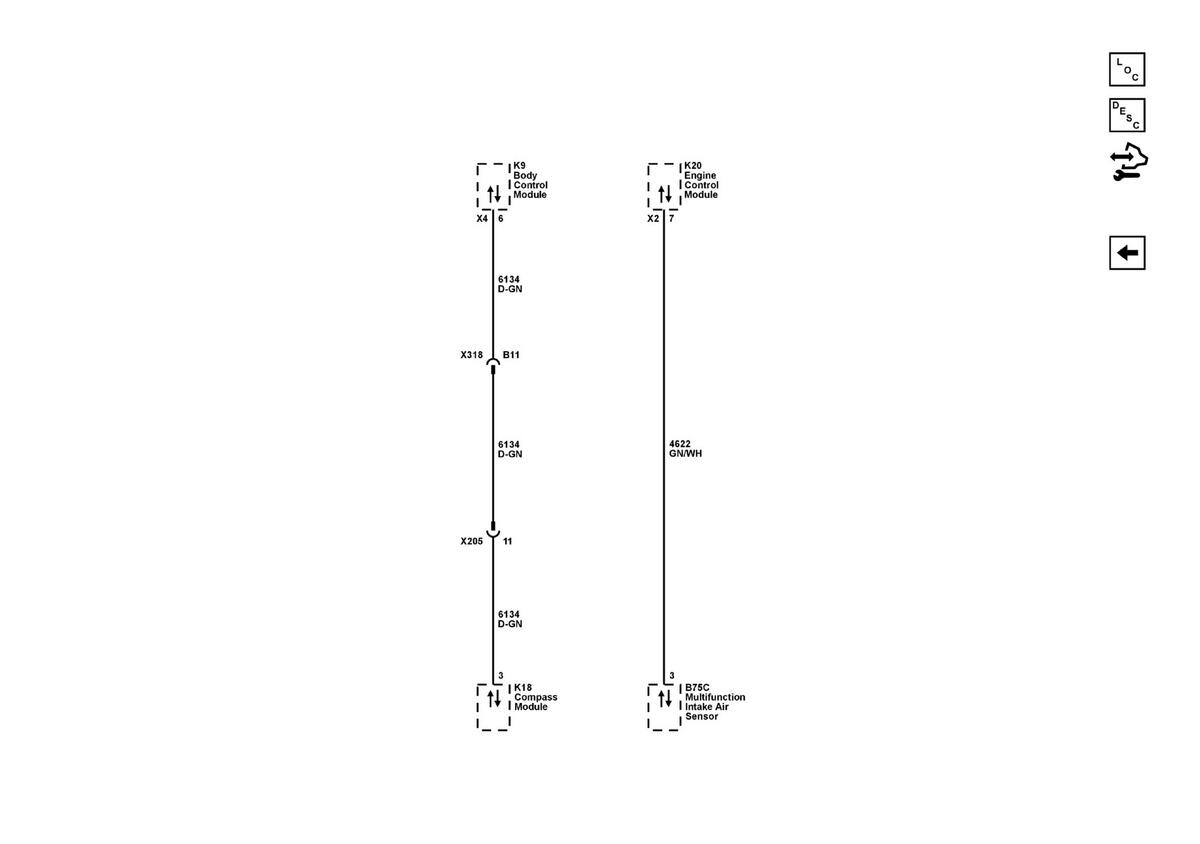

Home >> Chevrolet >> 2024 >> Express 2500 Base, Van Cargo Extended, 6.6L Eng VIN 7 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Local Interconnect Network
