Fastener Specifications

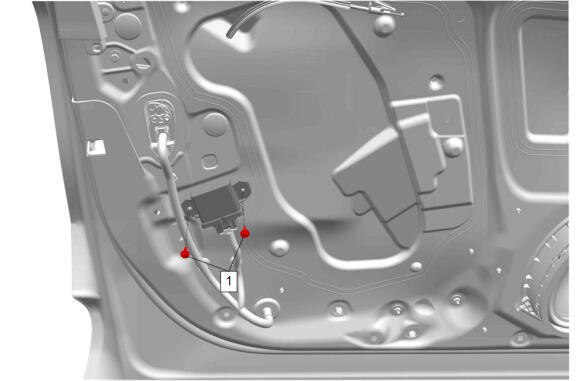

GM6403049Courtesy of GENERAL MOTORS COMPANY
Front Side Door Handle Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Handle Module Bolt [2x] - - 2.5 N.m (2 lb ft) Front Side Door Handle Module Replacement

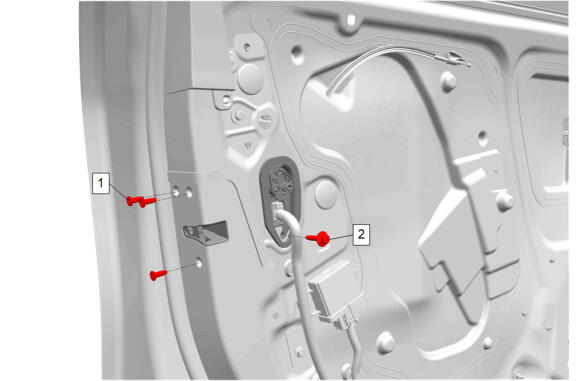

GM6402859Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Front Side Door Latch Replacement
2 Front Side Door Latch Bolt - - 11 N.m (8 lb ft) Front Side Door Latch Replacement
GM4573545Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement

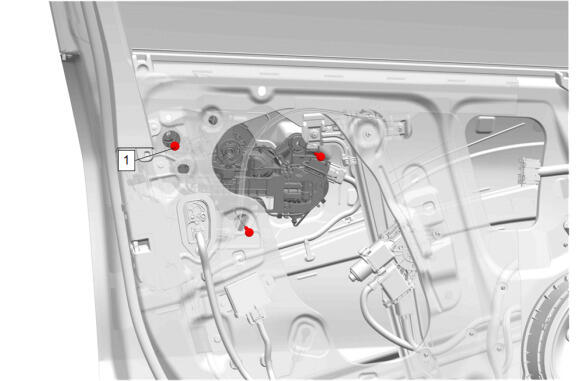

GM6403067Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Bolt [3x] - - 9 N.m (7 lb ft) Front Side Door Outside Handle Replacement

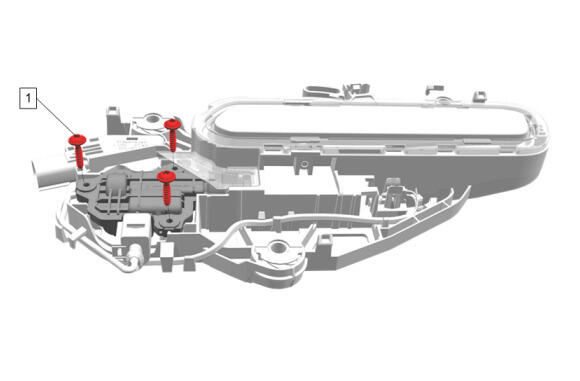

GM6410373Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Actuator Bolt [3x] - - 4.7 N.m (3 lb ft) Front Side Door Outside Handle Actuator Replacement

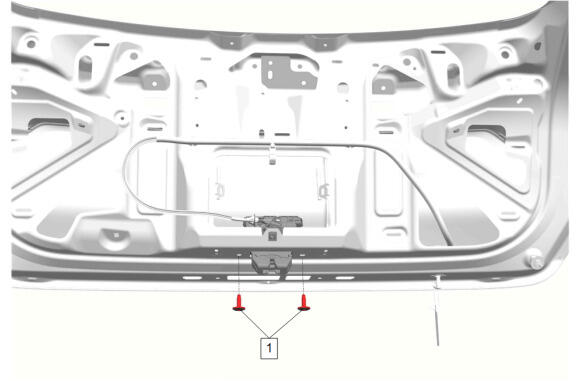

GM6401308Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Replacement
GM4576705Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

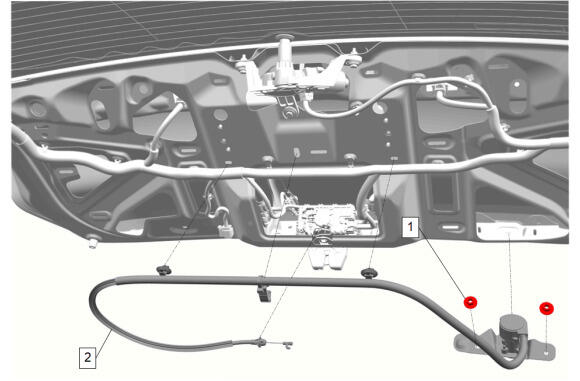

GM6407861Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Lock Cylinder

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Lock Cylinder Nut [2x] - - 9 N.m (7 lb ft) Rear Compartment Lid Lock Cylinder Replacement

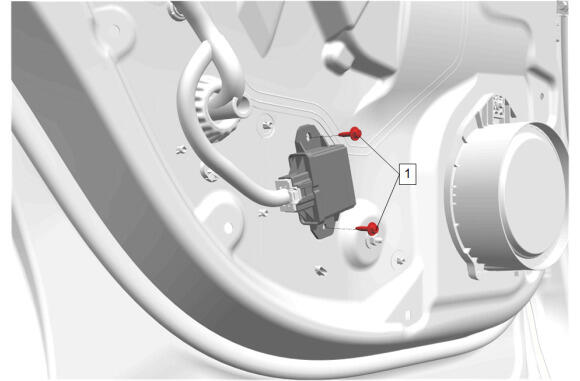

GM6401299Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Handle Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Handle Module Bolt [2x] - - 2.5 N.m (2 lb ft) Rear Side Door Handle Module Replacement

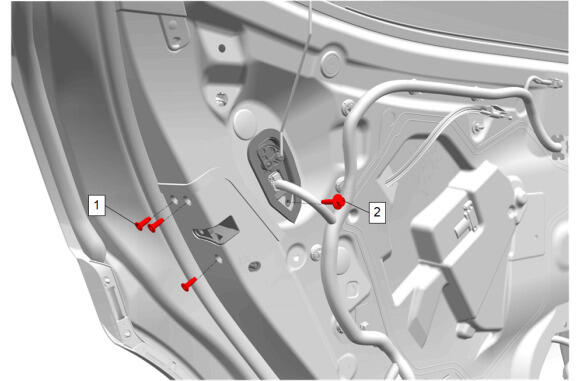

GM6402891Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Rear Side Door Latch Replacement
2 Rear Side Door Latch Bolt - - 11 N.m (8 lb ft) Rear Side Door Latch Replacement
GM4573548Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement

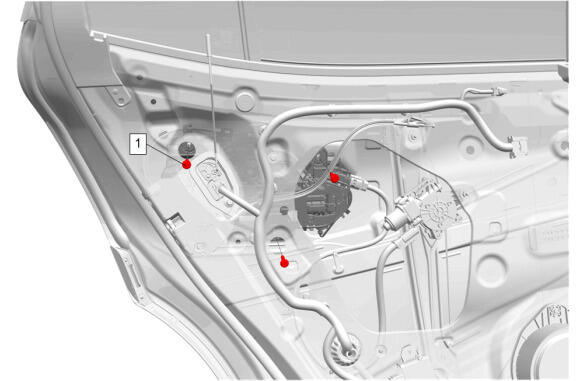

GM6401445Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Bolt [3x] - - 9 N.m (7 lb ft) Rear Side Door Outside Handle Replacement
GM6410373Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Actuator Bolt [3x] - - 4.7 N.m (3 lb ft) Rear Side Door Outside Handle Actuator Replacement
