Removal Procedure

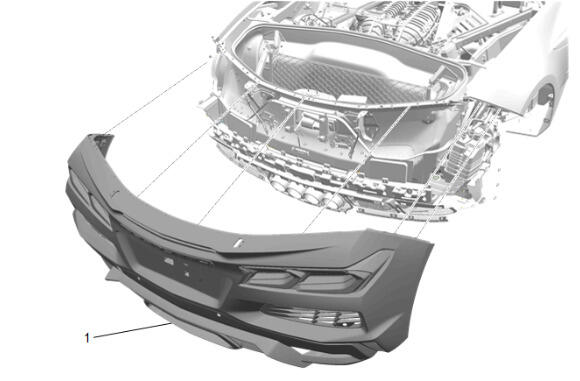

  1. GM5985654Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation (1LT / 2LT / 3LT) , or Rear Bumper Fascia Removal and Installation (T0F / T0G) , or Rear Bumper Fascia Removal and Installation (T0E)

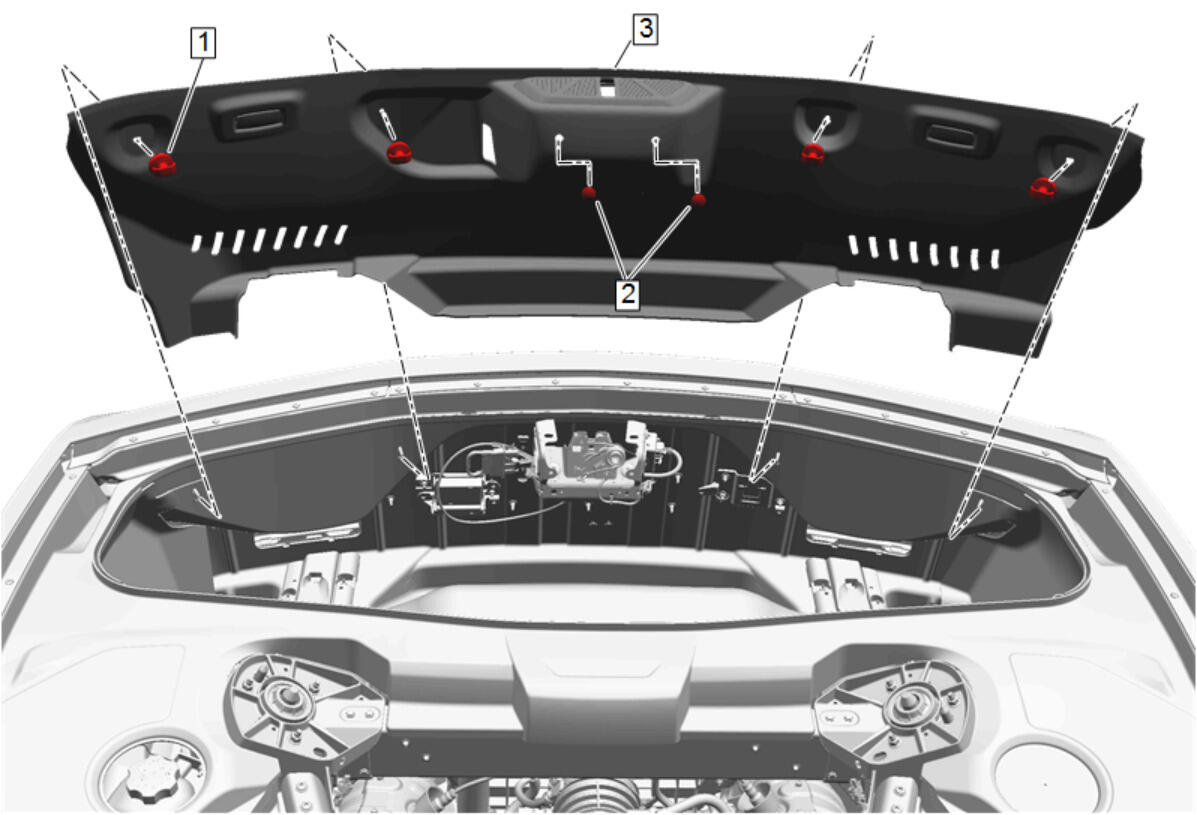

  2. GM5393207Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Cover Panel (3) Remove - Rear End Trim Cover Panel Replacement

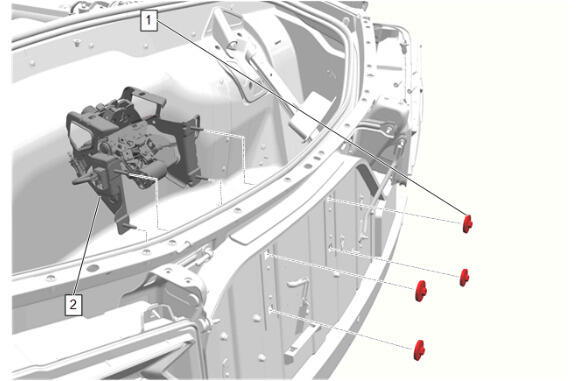

  3. GM6160209Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  4. Liftgate Latch Nut (1) - Remove [4x]
  5. Liftgate Latch (2) - Remove
