Intake Air Splash Shield Replacement (LT4)

Courtesy of GENERAL MOTORS COMPANY

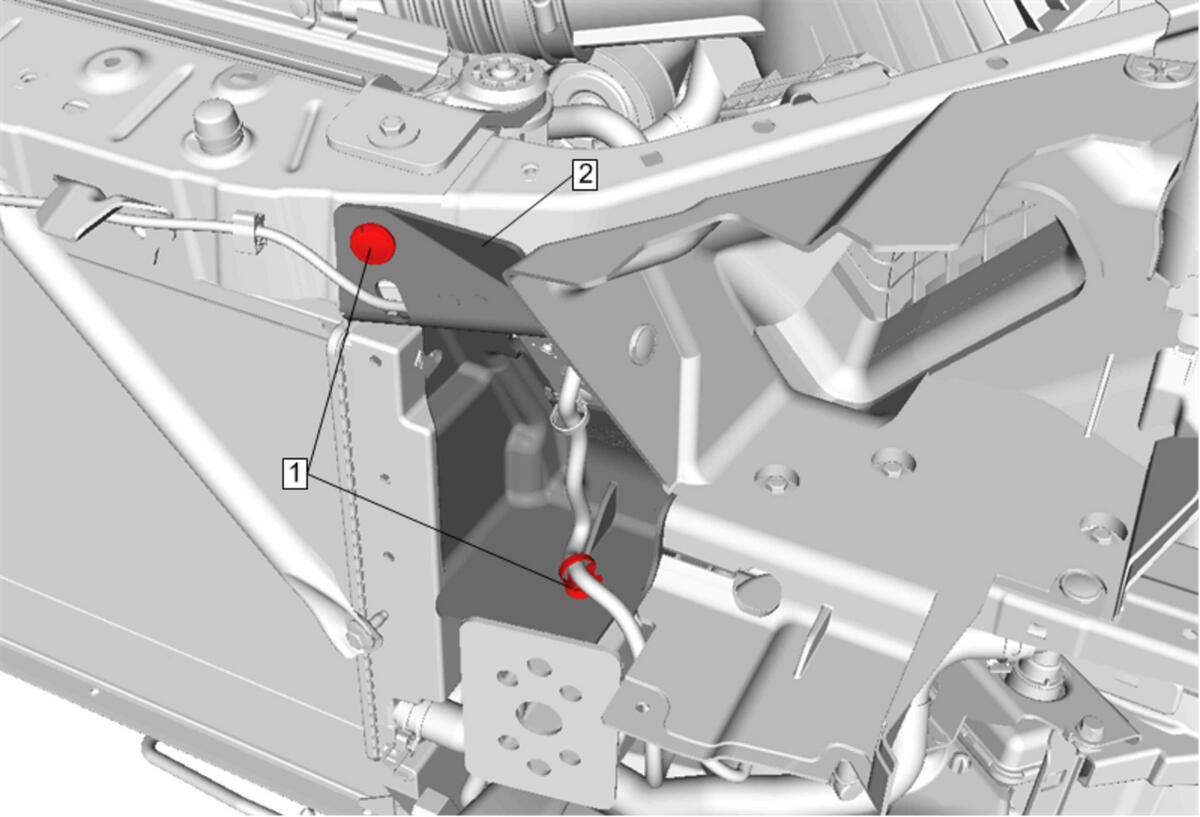

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Headlamp Replacement (HID, ZL1)Front Headlamp Replacement (LED, Uplevel)Front Headlamp Replacement (LED, Base)
1	Intake Air Splash Shield Retainer [2x] CAUTION: Refer to Fastener Caution .
2	Intake Air Splash Shield
