Installation Procedure

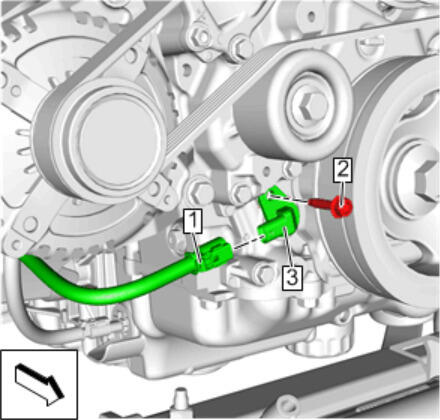

Using the mechanics wire, guide the oil pump flow control solenoid valve harness (3) into place, then remove the wire.
- Oil Pump Flow Control Solenoid Valve Harness Bolt (2) - Install and tighten15 N.m (11 lb ft)
- Engine Wiring Harness (1) - Connect

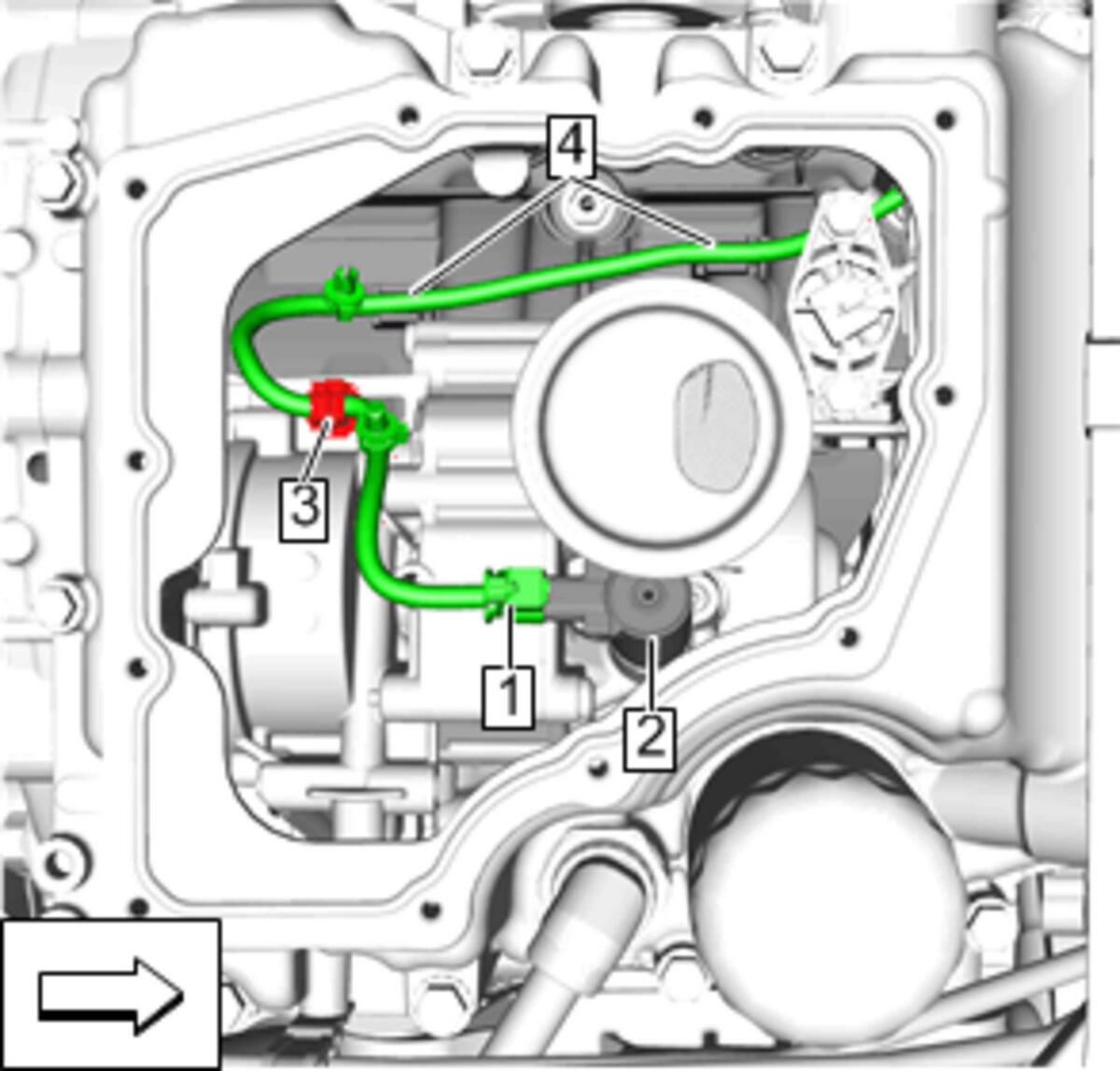

Oil Pump Flow Control Solenoid Valve Harness (1)@Crankshaft Oil Deflector (4) - Install
- Oil Pump Flow Control Solenoid Valve Harness (1)@Retainer (3) - Install
- Oil Pump Flow Control Solenoid Valve Harness (1)@Oil Pump Flow Control Solenoid Valve (2) - Connect
- Lower Oil Pan Replacement - Install
- Front Compartment Lower Noise Shield Replacement (Coupe - LGX, LTG) - Install
CAUTION:
Refer to Fastener Caution .
