Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

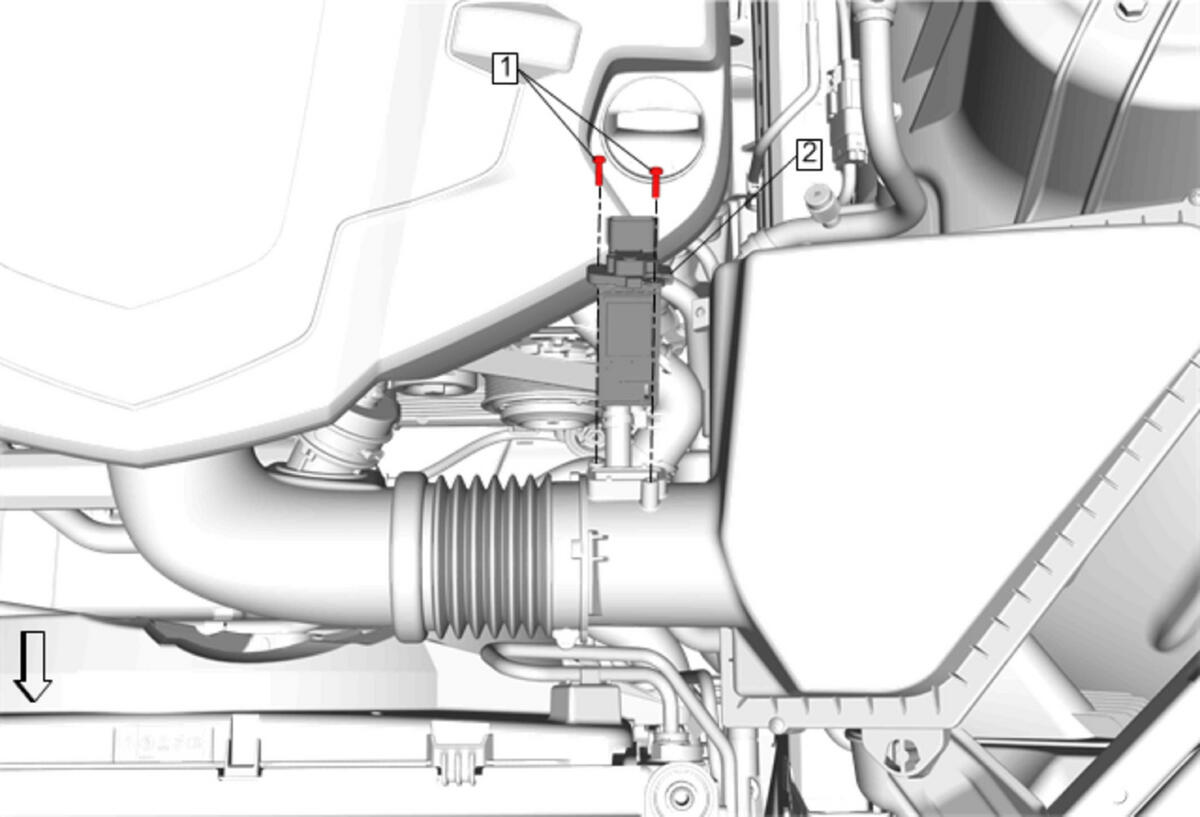

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Mass Airflow Sensor with Intake Air Temperature Sensor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  8 N.m (70 lb in)
2	Mass Airflow Sensor with Intake Air Temperature Sensor Procedure  Disconnect the electrical connector.
