Knock Sensor Replacement - Bank 1

Courtesy of GENERAL MOTORS COMPANY

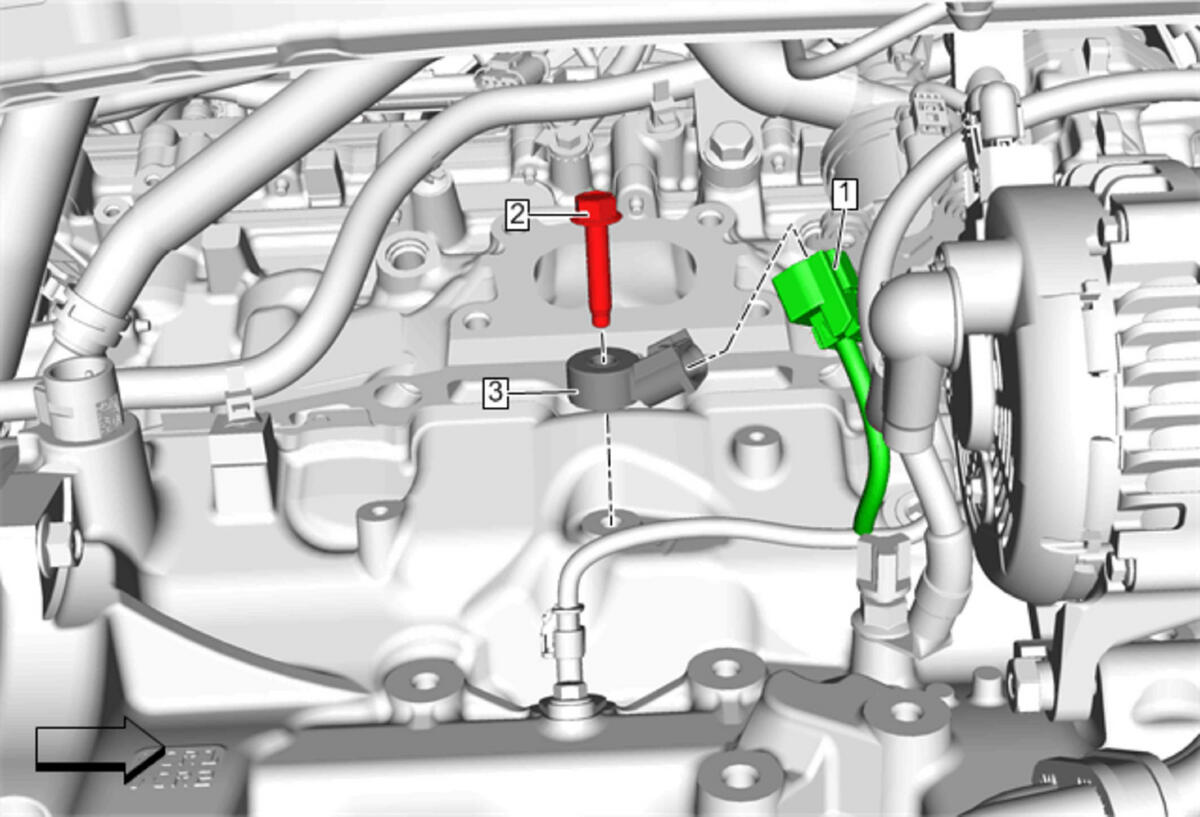

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner-Right Side - Remove - Front Wheelhouse Liner Replacement Front Compartment Lower Noise Shield Replacement (Coupe - LGX, LTG)
1	Electrical Connector
2	Knock Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
3	Knock Sensor
