Single Use Fasteners and Components

Intake Manifold Seal [6x]

Courtesy of GENERAL MOTORS COMPANY

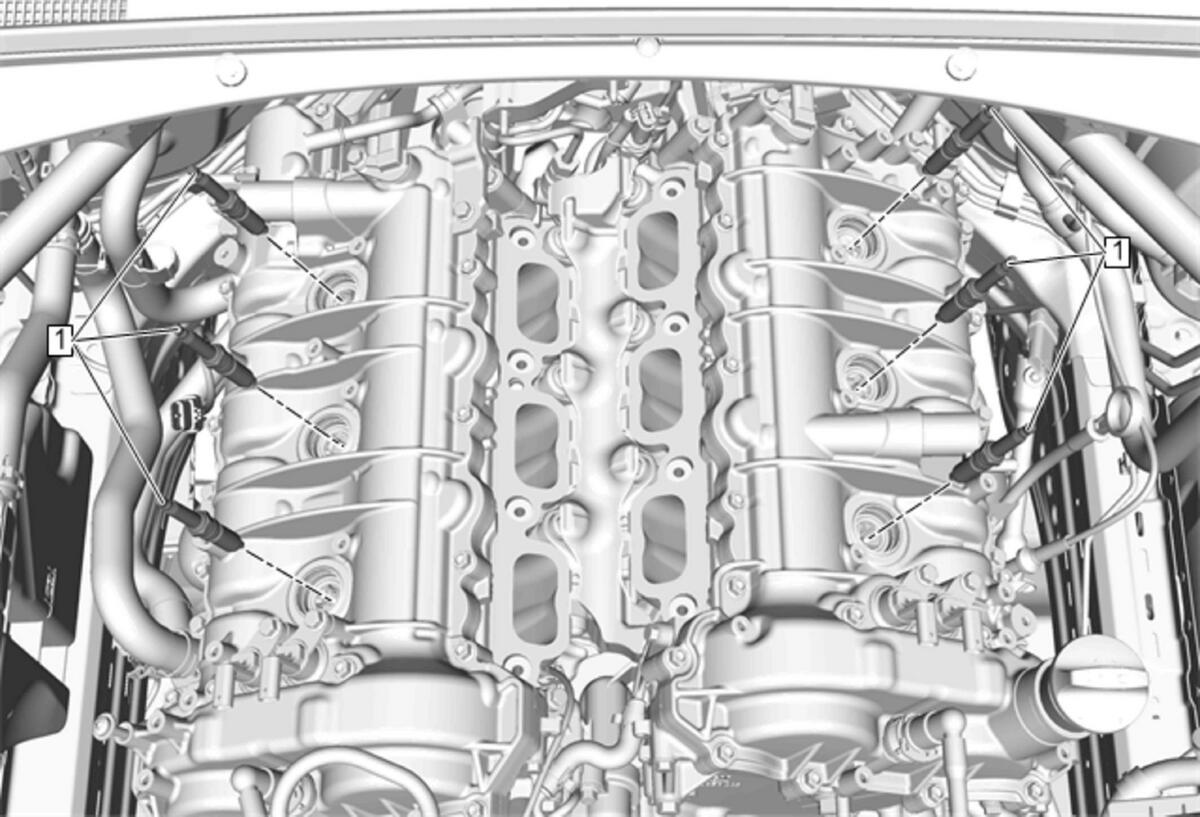

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Ignition Coil Replacement - Bank 1 Ignition Coil Replacement - Bank 2
1	Spark Plug [6x] CAUTION: Refer to Component Fastener Tightening Caution . Procedure If reusing the spark plugs, inspect for wear or damage. Gas Engine Ignition Spark Plug Inspection If using NEW spark plugs do NOT attempt to check gap or damage can occur, plugs come pre gapped. Tighten 18 N.m (13 lb ft)

Callout

Component Name

Preliminary Procedures

Spark Plug [6x]

CAUTION:

Procedure

If reusing the spark plugs, inspect for wear or damage. Gas Engine Ignition Spark Plug Inspection
If using NEW spark plugs do NOT attempt to check gap or damage can occur, plugs come pre gapped.
Tighten

18 N.m (13 lb ft)
