Single Use Fasteners and Components
Crankshaft Position Sensor Seal
NOTE:

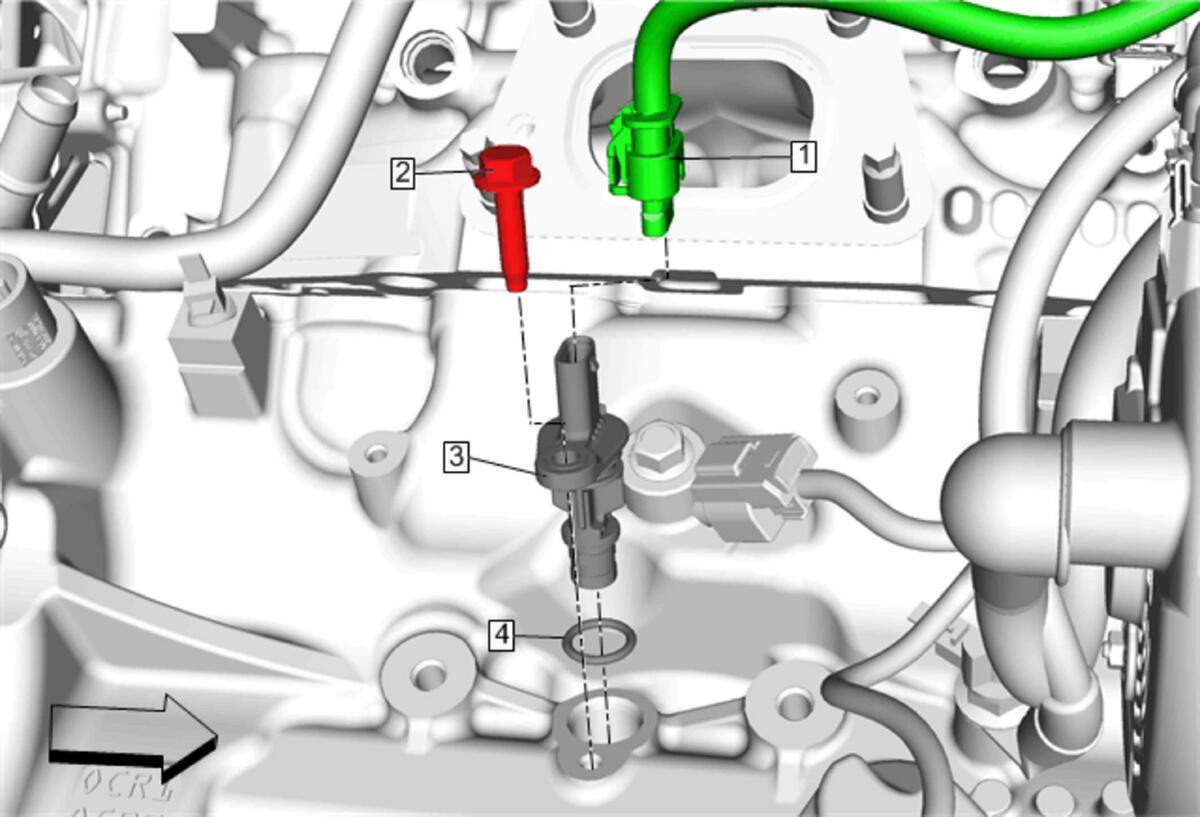

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Lower Noise Shield Replacement (Coupe - LGX, LTG) |
|
| 1 | Electrical Connector |
| 2 | Crankshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten10 N.m (89 lb in) |
| 3 | Crankshaft Position Sensor Procedure After the sensor is installed, perform the crankshaft position system variation learn procedure. Crankshaft Position Variation Learn |
| 4 | Crankshaft Position Sensor Seal Procedure
NOTE:
Lubricate the NEW O-ring seals with clean engine oil. Install a NEW seal. |
