Installation Procedure

  1. GM4747184Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Fan Module Radiator (1) - Install

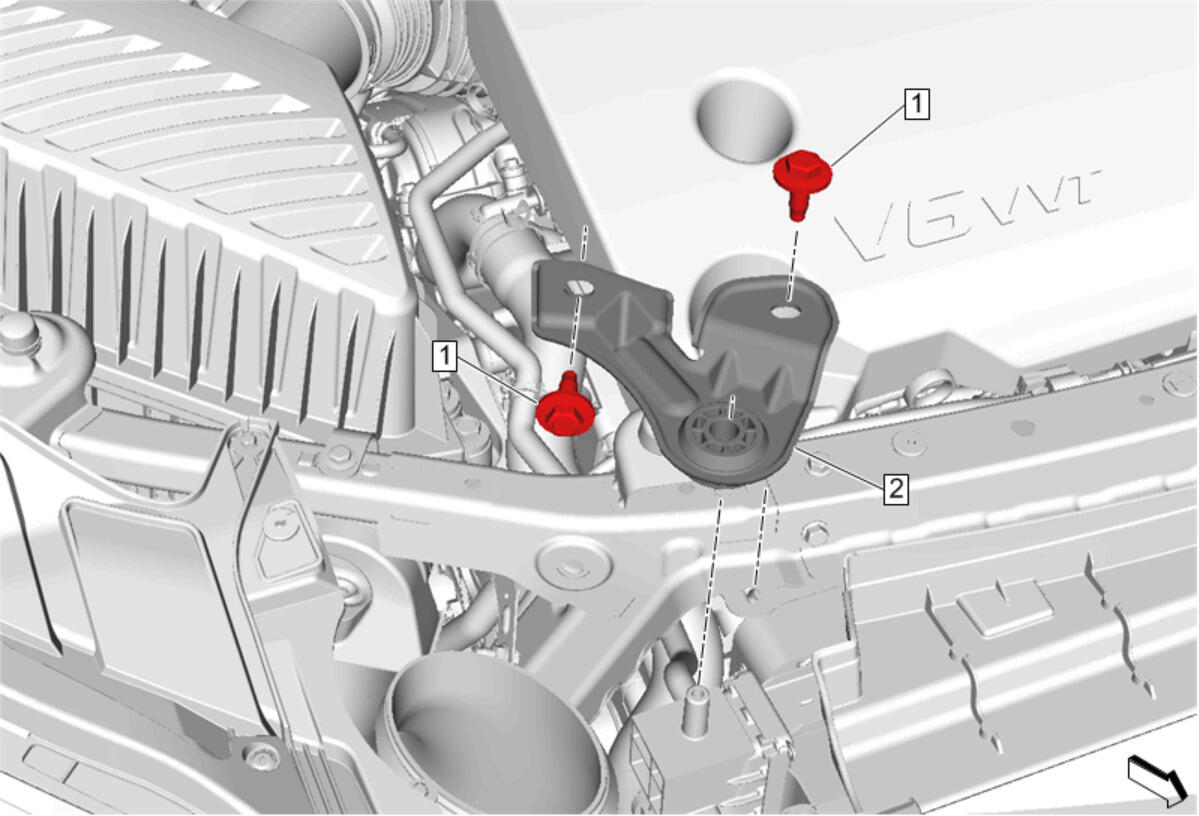

  2. GM4737649Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket-Right Side (2) - Install - Radiator Upper Bracket Replacement - Right Side

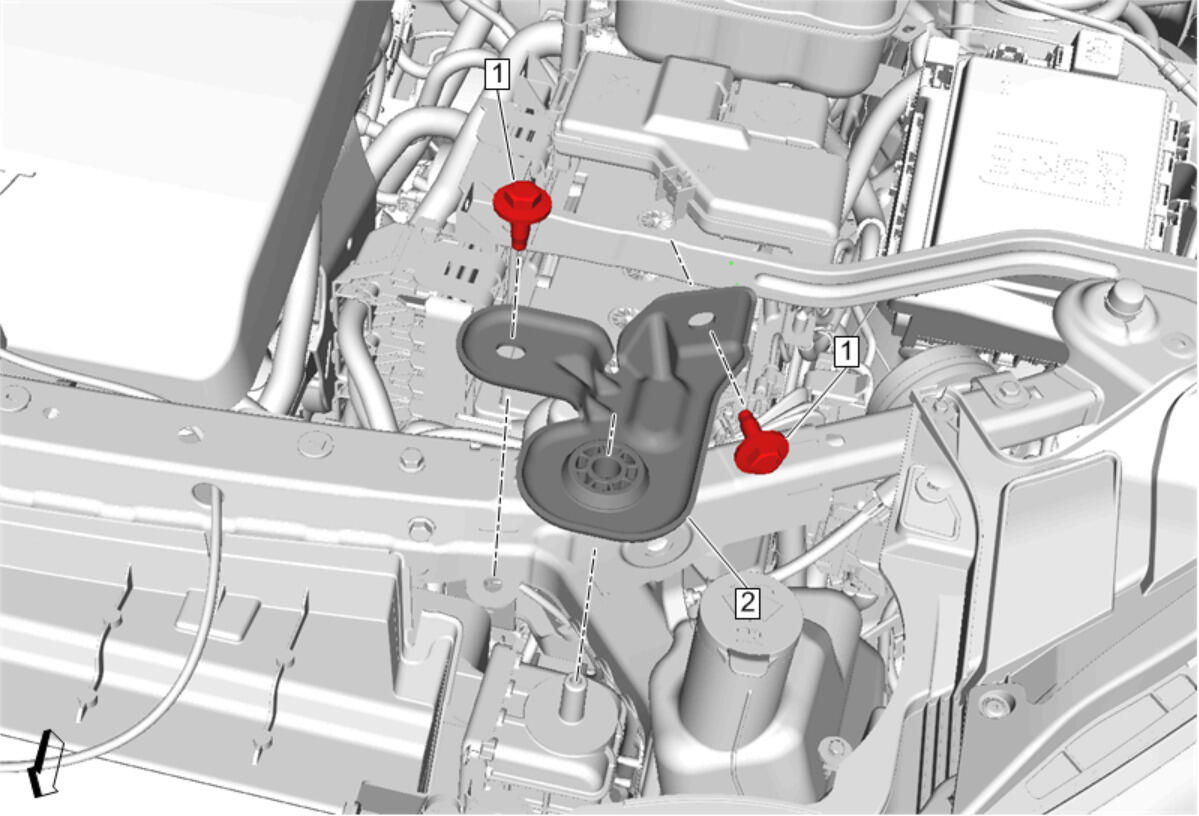

  3. GM4737653Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket-Left Side (2) - Install - Radiator Upper Bracket Replacement - Left Side

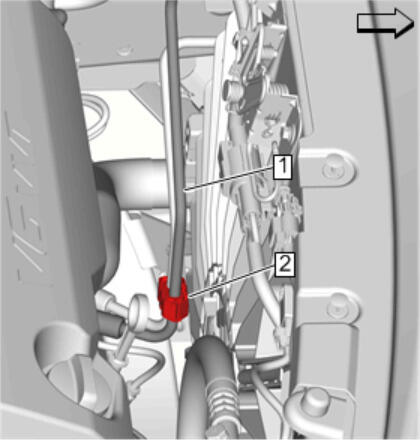

  4. GM4755800Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Clip (2) @ Engine Coolant Fan - Install

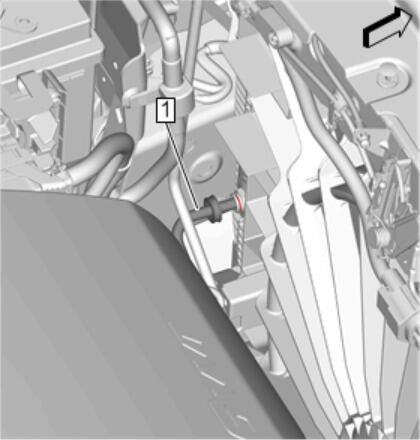

  5. GM4755739Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Inlet Pipe (1) @ Radiator - Install - Transmission Fluid Cooler Inlet Pipe Replacement (without V08)

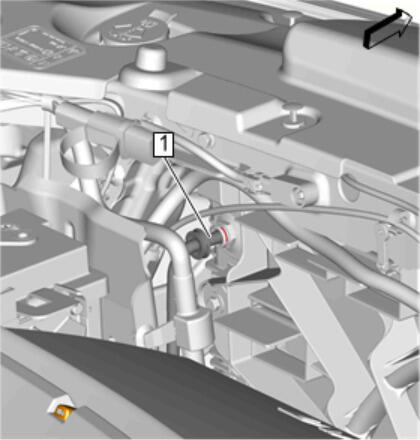

  6. GM4755615Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Outlet Pipe (1) @ Radiator - Install - Transmission Fluid Cooler Outlet Pipe Replacement (without V08)

  7. Wiring Harness @ Engine Coolant Fan - Connect

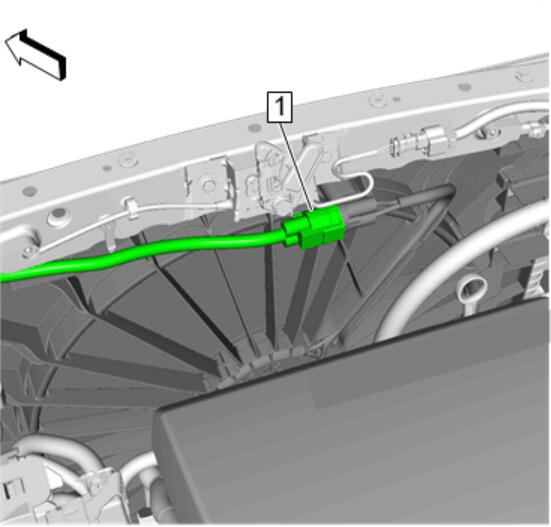

  8. GM4746783Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Engine Coolant Fan - Connect

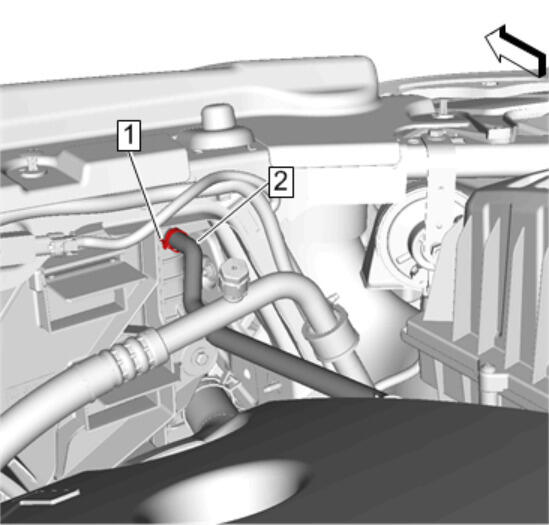

  9. GM4737191Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Overflow Hose (2) @ Radiator - Install - Radiator Surge Tank Overflow Hose Replacement (Engine Coolant Air Bleed Pipe to Radiator)

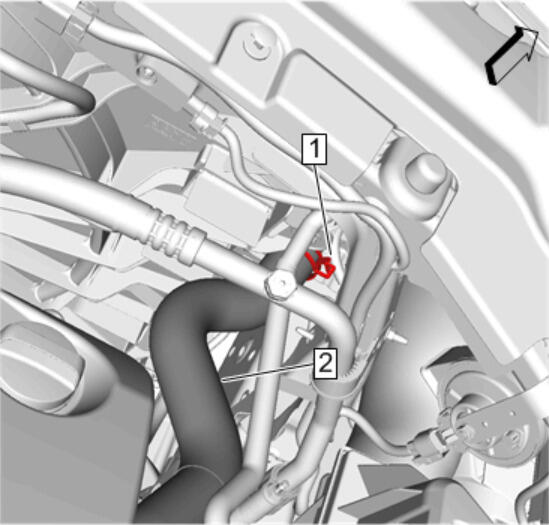

  10. GM4737054Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) @ Radiator - Install - Radiator Inlet Hose Replacement

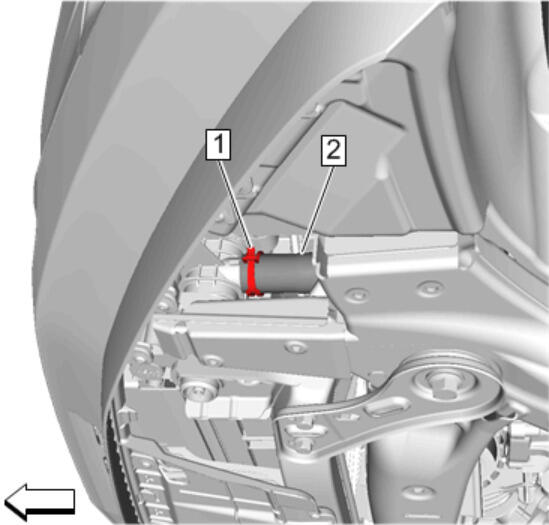

  11. GM4737311Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Radiator - Install - Radiator Outlet Hose Replacement

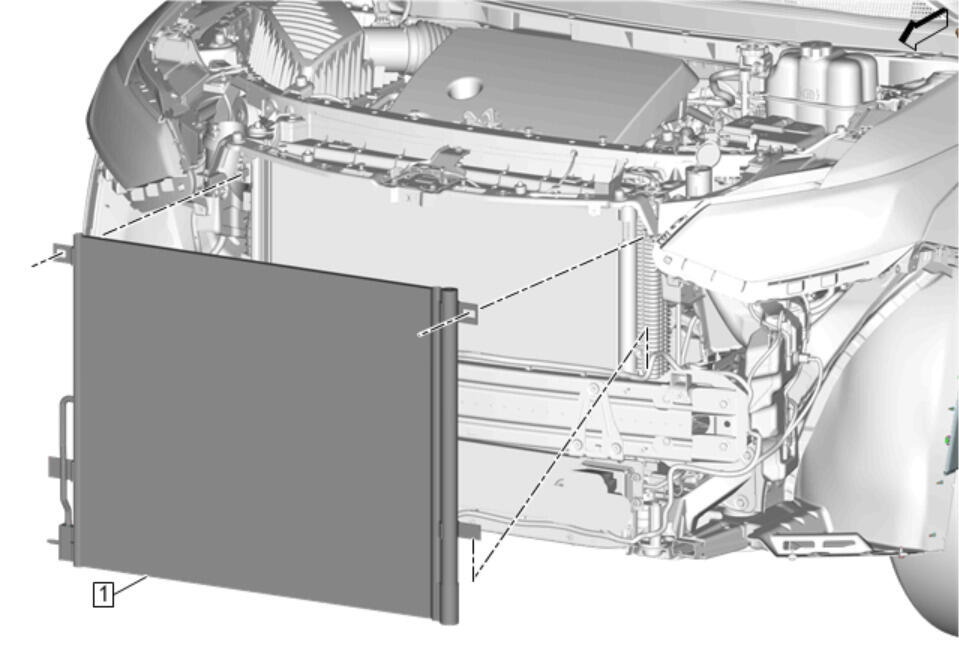

  12. GM4756464Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (1) - Install - Air Conditioning Condenser Replacement (LFY)

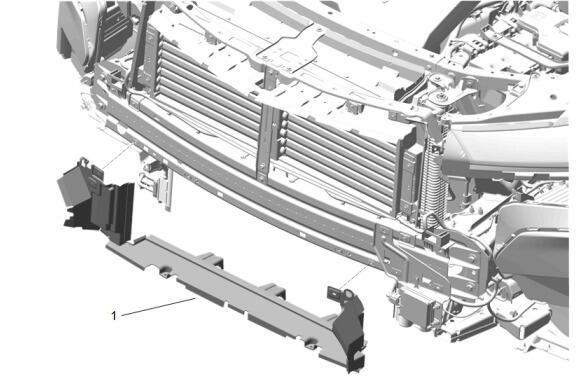

  13. GM5896776Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Lower Baffle (1) - Install - Radiator Air Front Lower Baffle Replacement

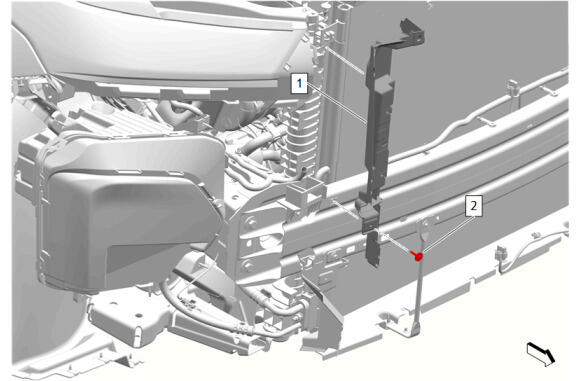

  14. GM5893700Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Upper Baffle - Right Side (1) - Install - Radiator Air Side Upper Baffle Replacement - Right Side (without High Country) , or Radiator Air Side Upper Baffle Replacement - Right Side (with High Country)

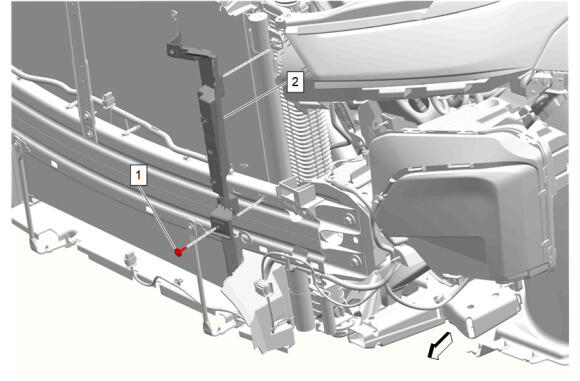

  15. GM5893697Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Upper Baffle - Left Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Left Side

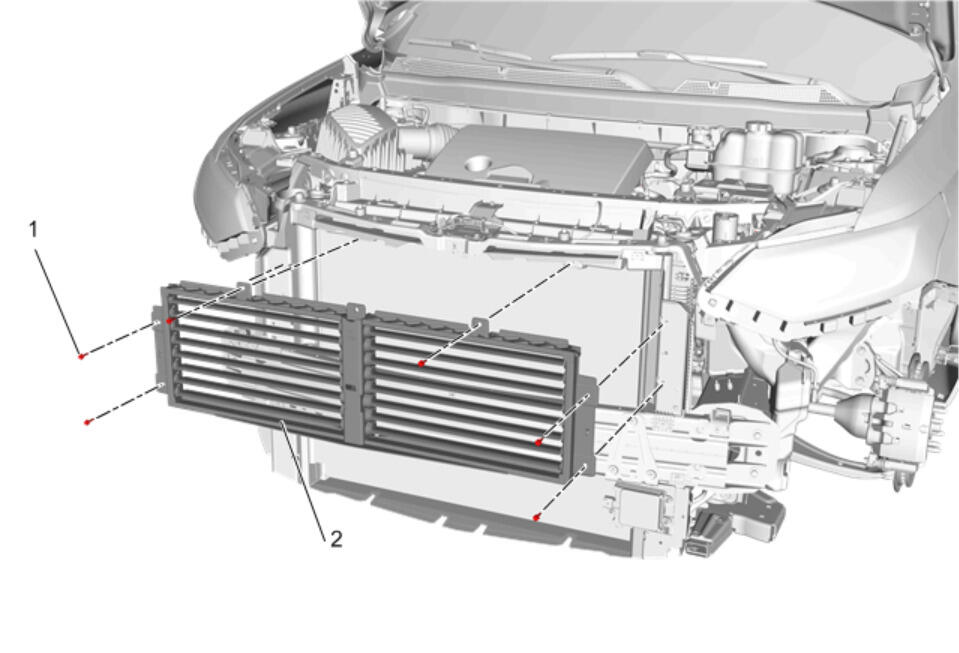

  16. GM4726748Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter - Upper (2) - Install - Front Bumper Shutter Replacement (Upper)

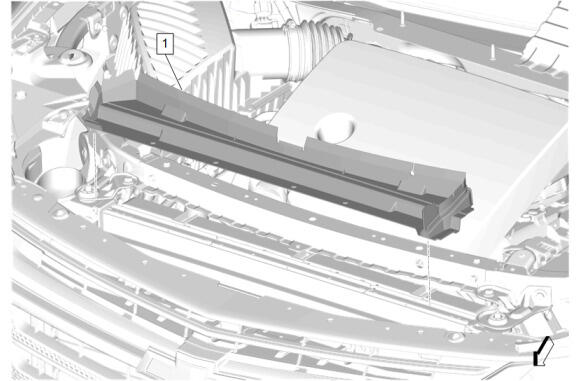

  17. GM5892109Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Install - Radiator Air Upper Baffle Replacement

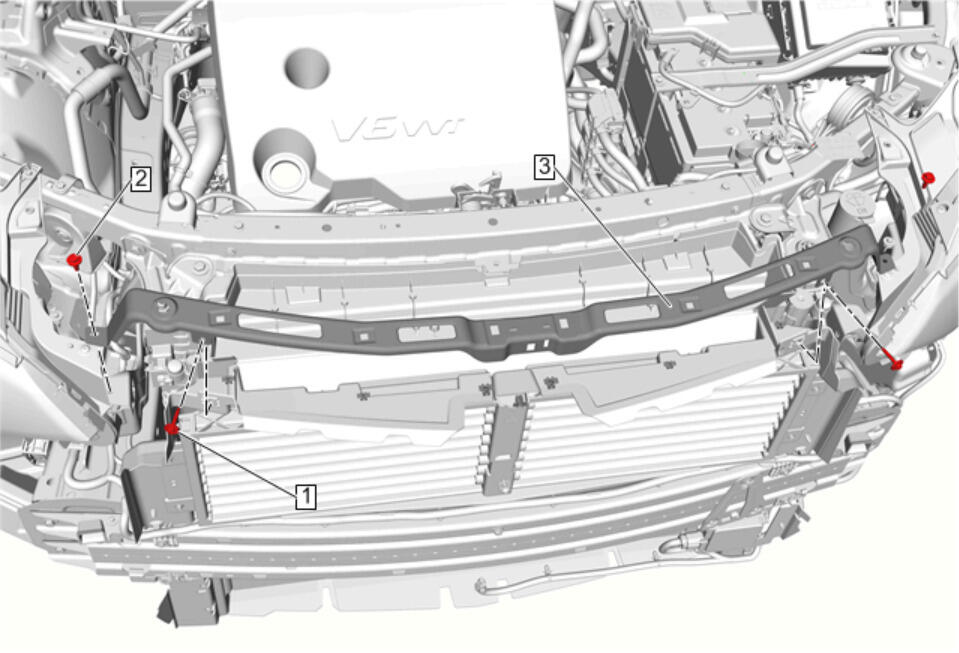

  18. GM4726532Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Support (3) - Install - Front Bumper Fascia Center Support Replacement

  19. Front Bumper Fascia - Install - Front Bumper Fascia Replacement
  20. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
  21. Start the engine and check for coolant leaks.
