Installation Procedure

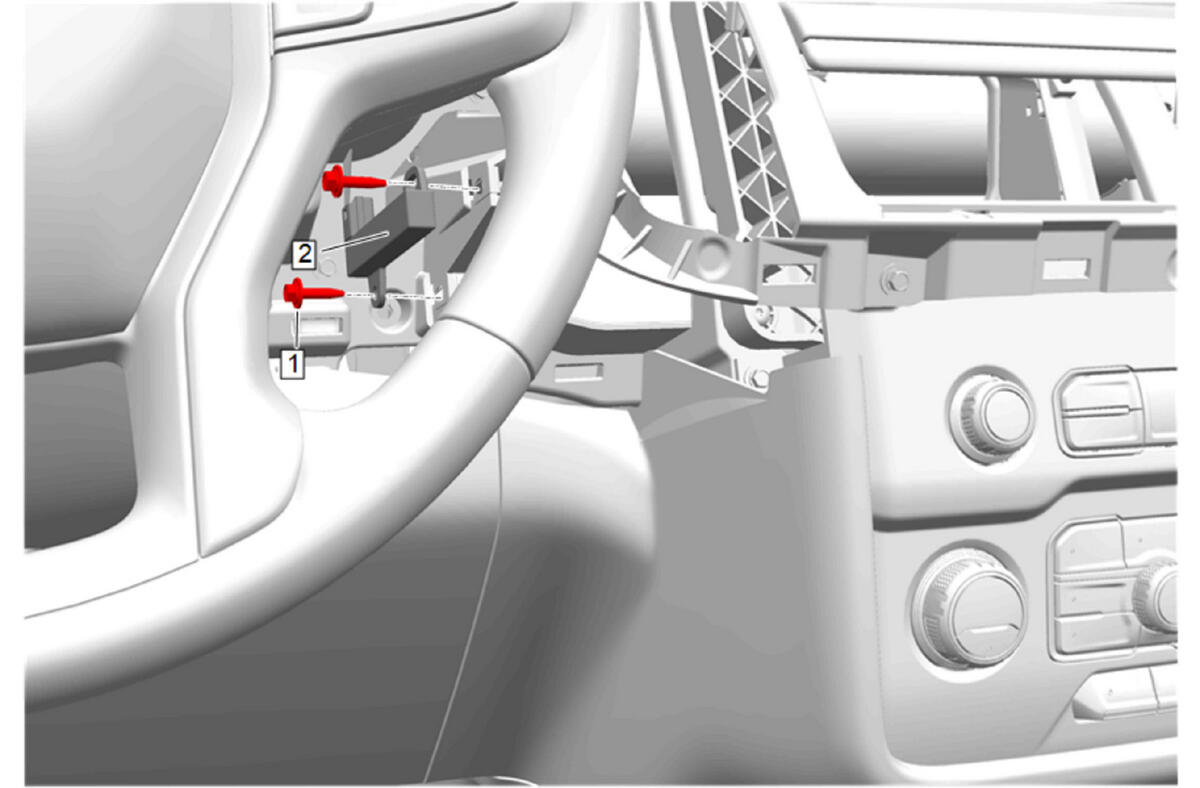

  1. GM5869793Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Low Frequency Instrument Panel Antenna (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Bolt (1) - Install and tighten [2x] - Fastener Specifications

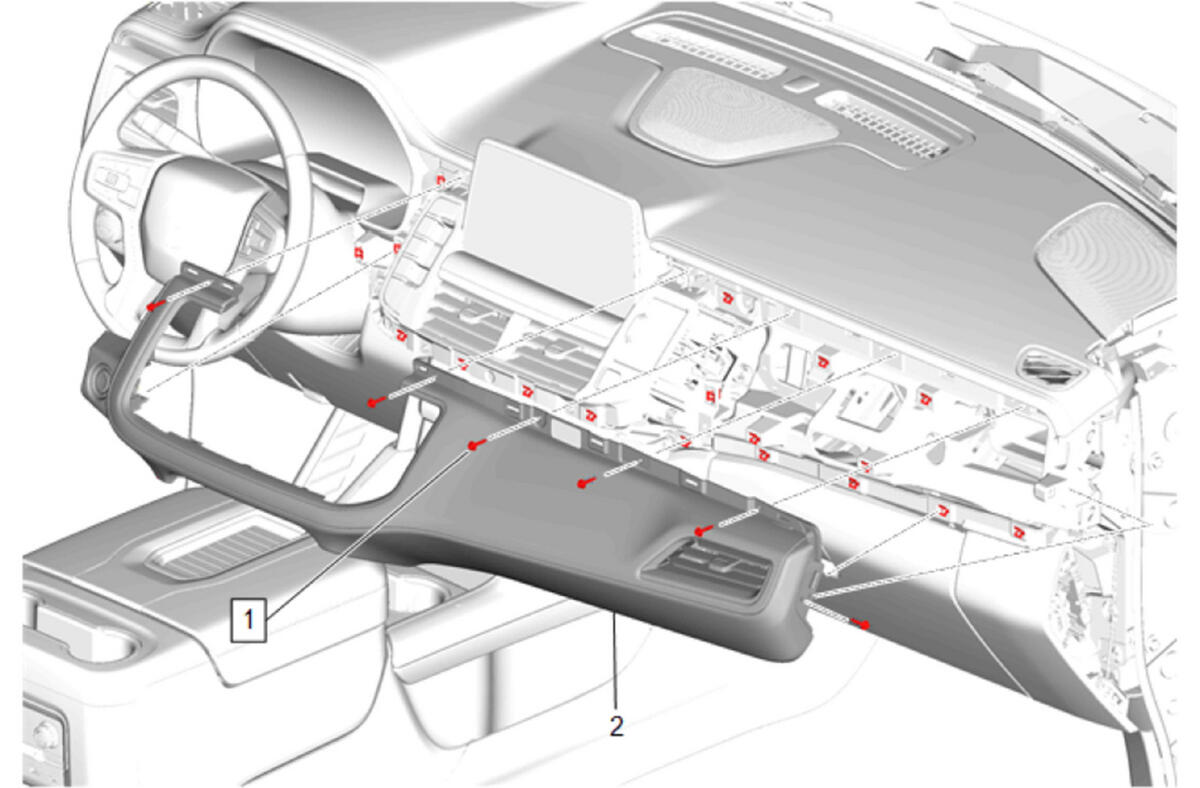

  4. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Instrument Panel Trim Pad-Right Side (2) - Install
  6. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications

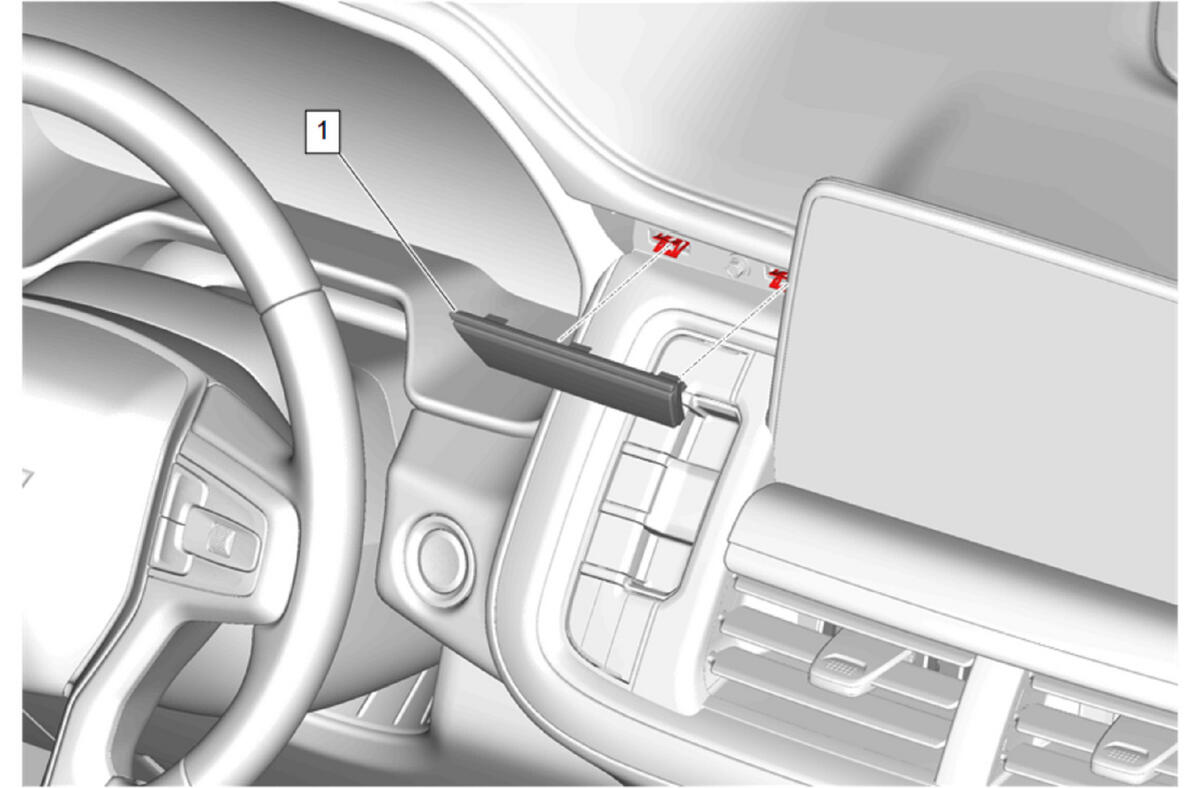

  7. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

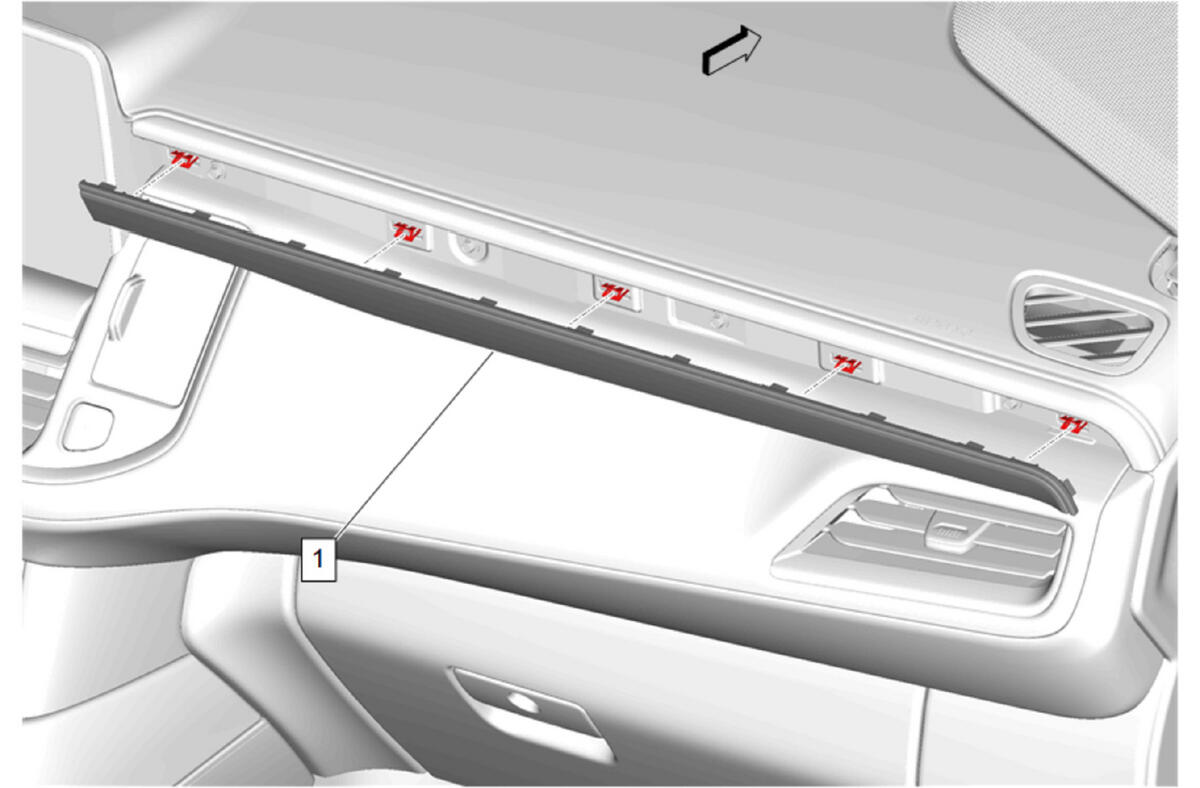

  8. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique-Right Side (1) - Install

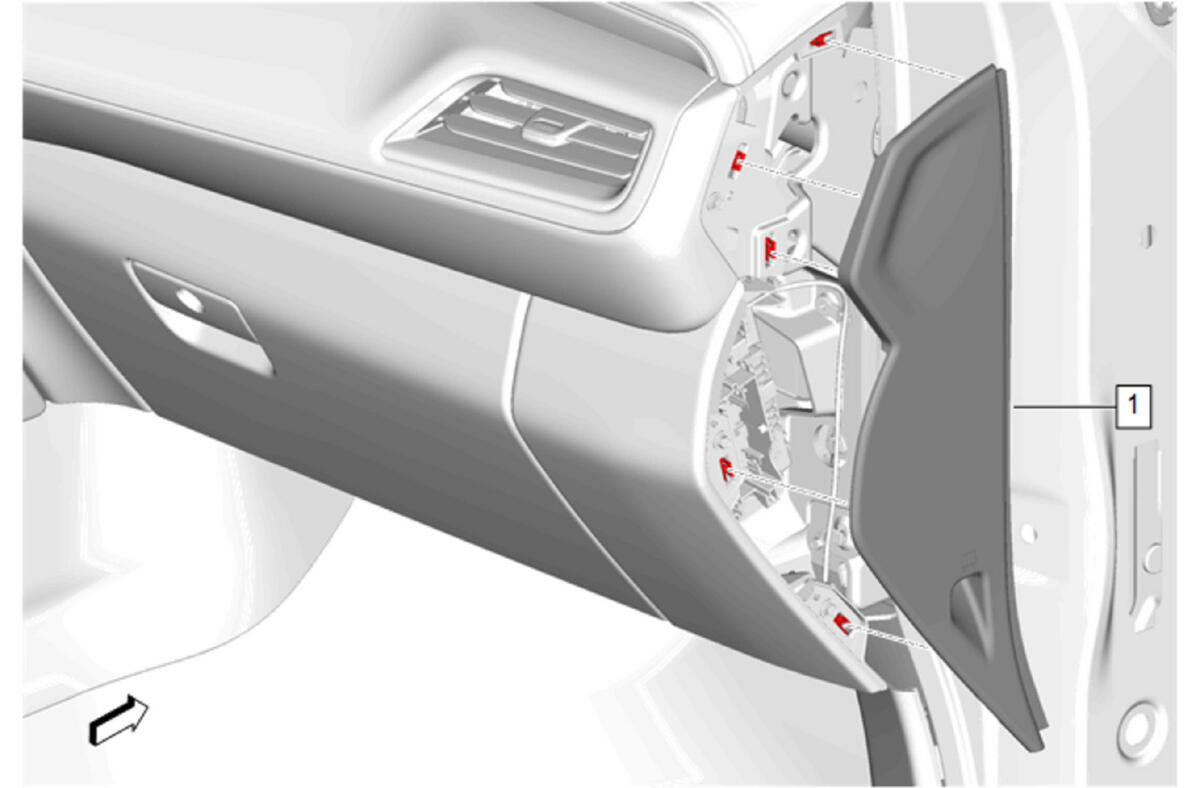

  9. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover-Right Side (1) - Install
