Home >> Chevrolet >> 2023 >> Camaro LS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 2.0L - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Controlled/Monitored Subsystem References

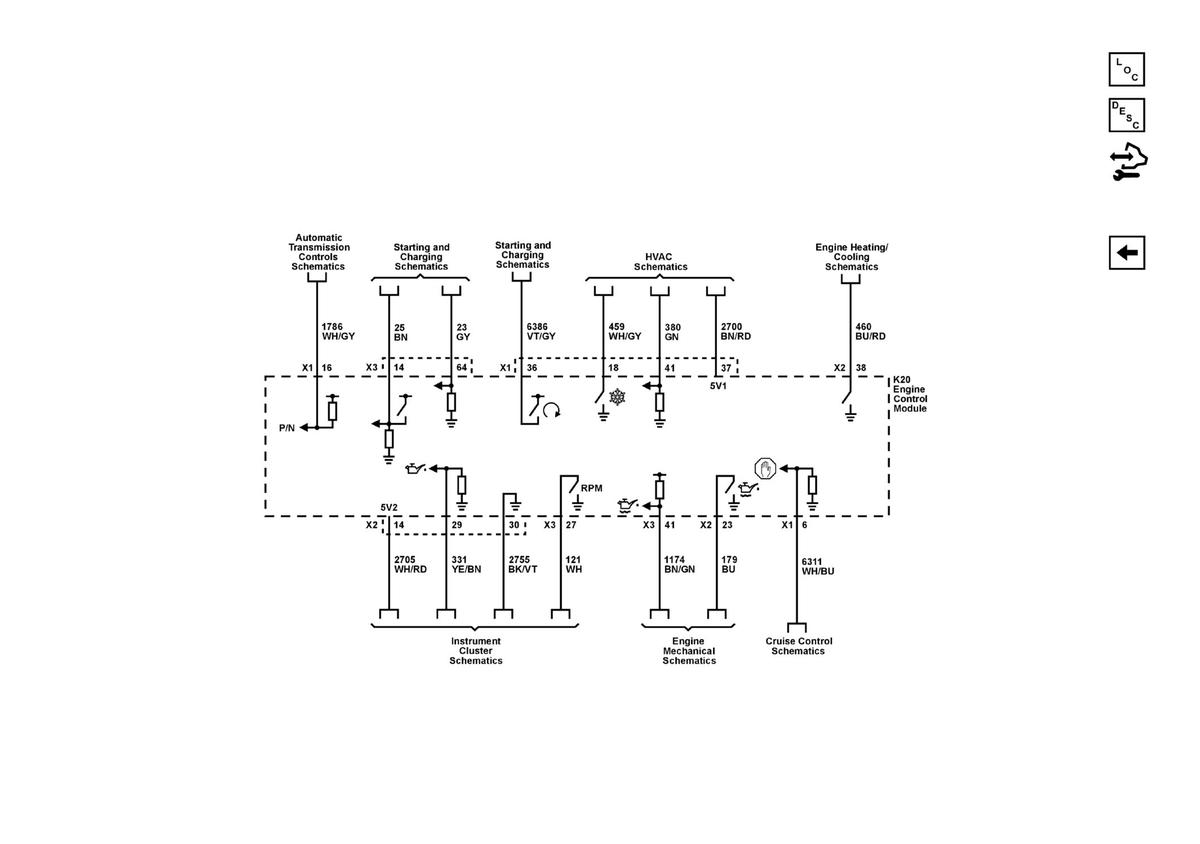

Controlled/Monitored Subsystem References

GM5957347

Courtesy of GENERAL MOTORS COMPANY
