Removal Procedure

WARNING: This page is about a different car, the 2022 Chevrolet Bolt EUV. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Use a flat bladed trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).
Courtesy of GENERAL MOTORS COMPANY

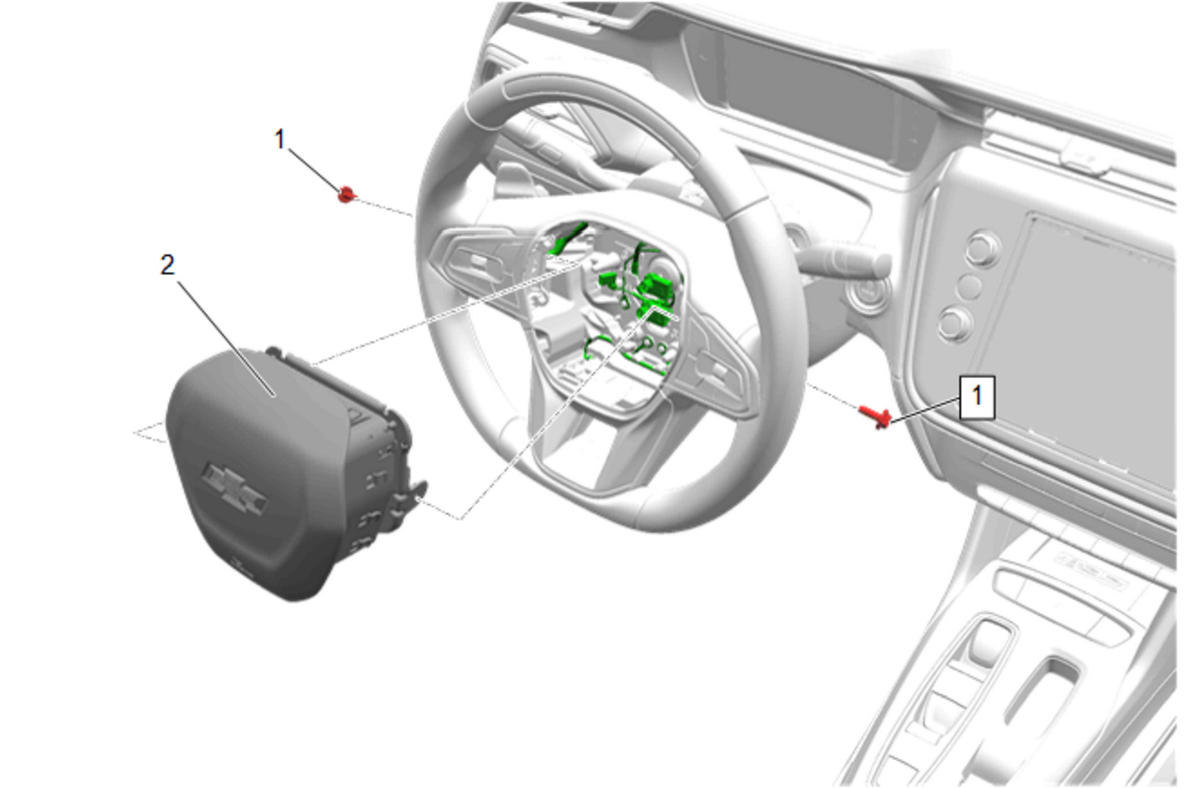

Steering Wheel Airbag Bolt (1) - Remove [2x]
Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Steering Wheel Airbag (2) - Remove
Inflatable Restraint Module Handling and Scrapping
Courtesy of GENERAL MOTORS COMPANY

Loosen the steering wheel bolt (1) so that 2 - 3 threads are engaged.
Wiggle the steering wheel until the wheel disengages completely.
Steering Wheel Bolt (1) - Remove
Steering Wheel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

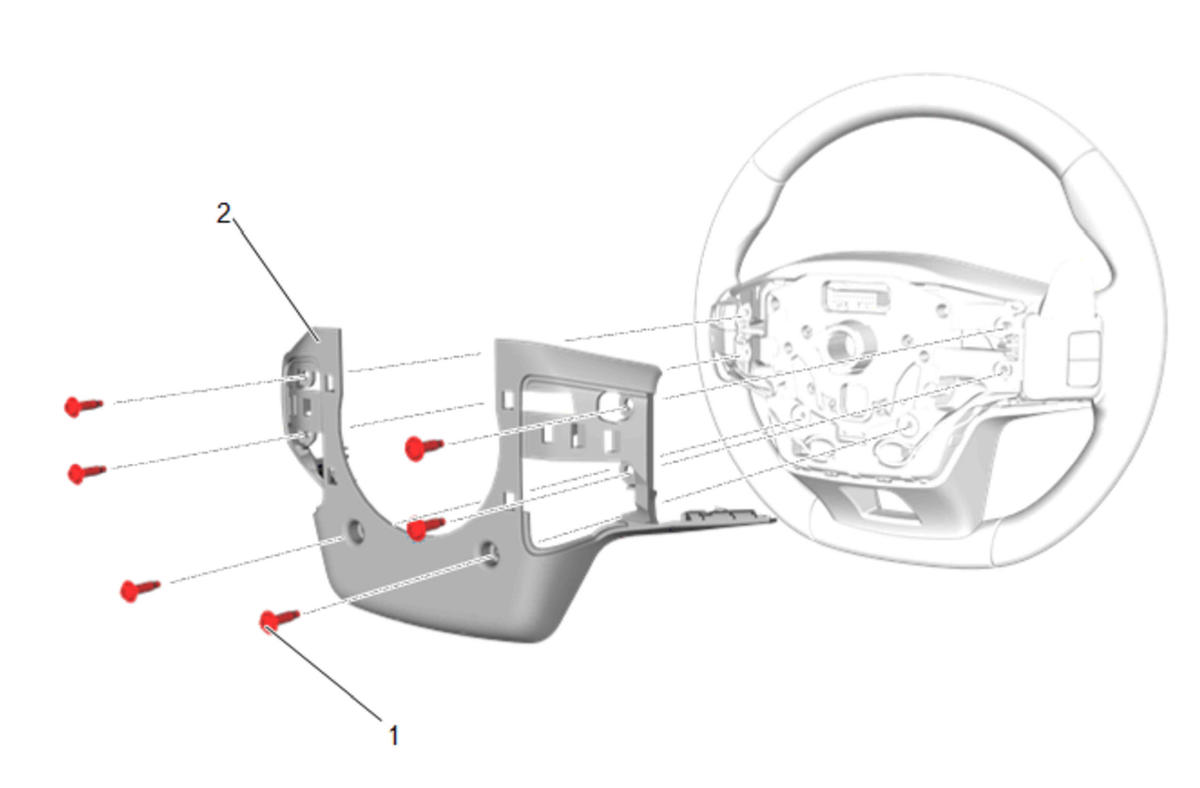

Steering Wheel Shroud Bolt (1) - Remove [6x]
Steering Wheel Shroud (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

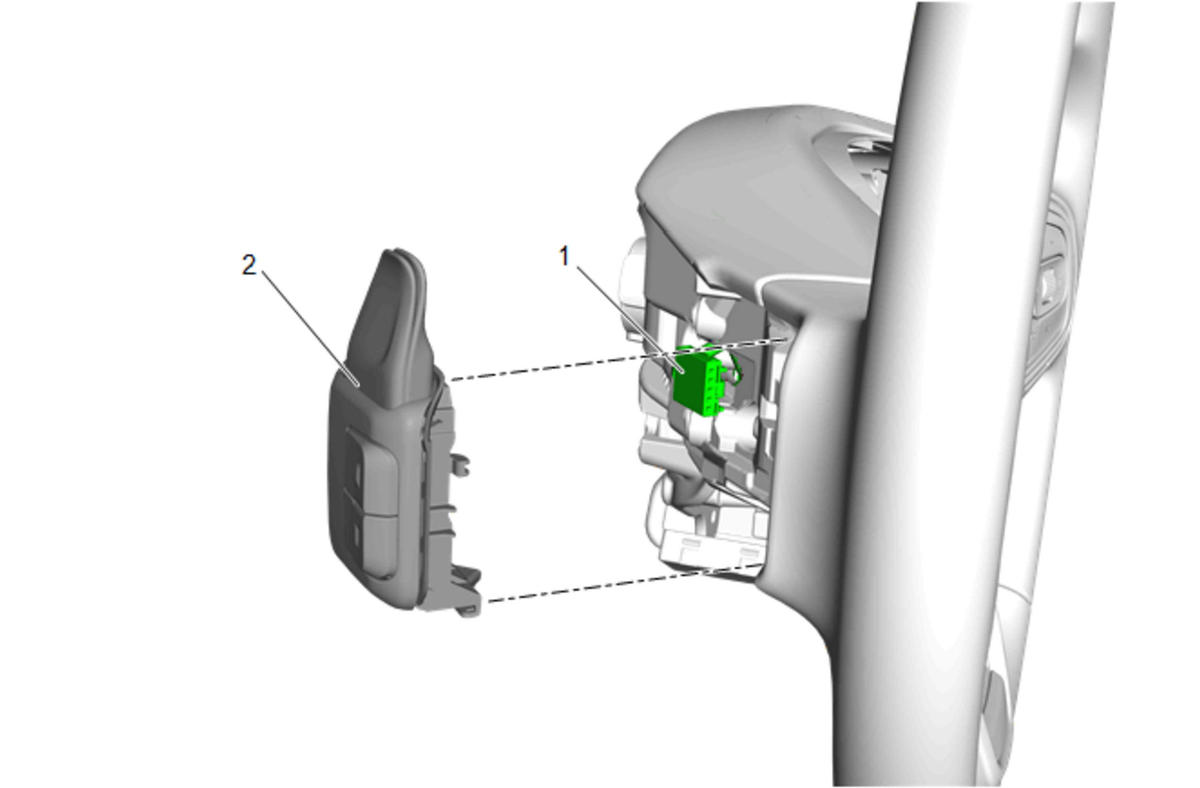

Disconnect the electrical connector. (1)
Automatic Transmission Manual Shift Auxiliary Position Switch (2) - Remove
Remove the radio volume switch (2).
Courtesy of GENERAL MOTORS COMPANY

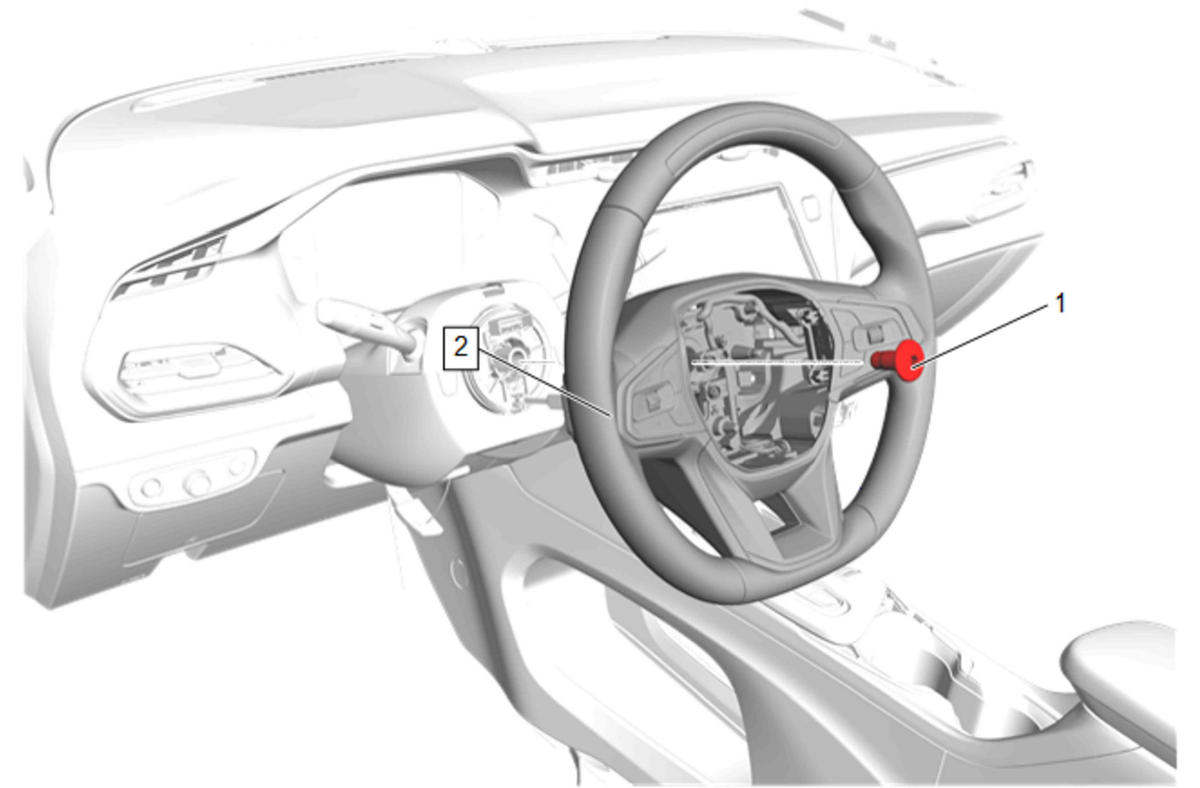

Steering Wheel Bolt (1) @ Radio Bracket - Remove
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch Assembly (1) @ Steering Wheel - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Bolt (1) @ Cruise Control Switch - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

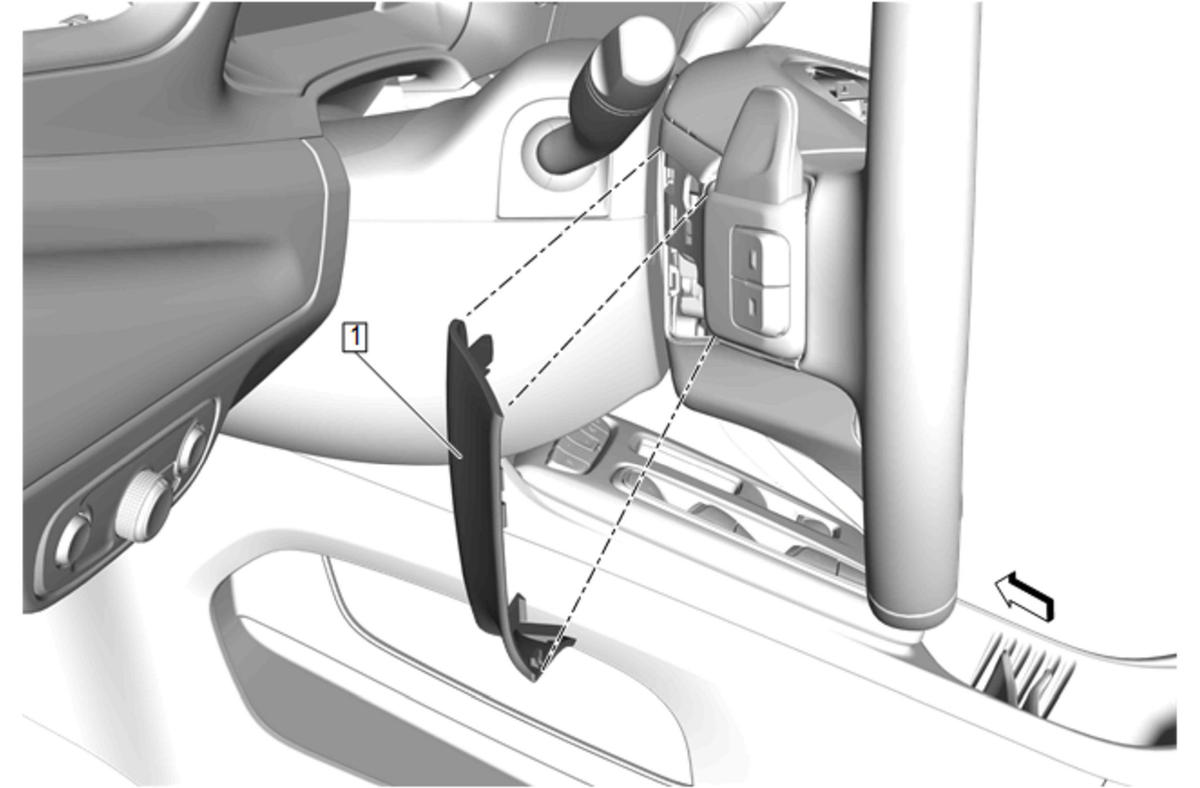

Steering Wheel Trim Spoke Cover Applique (1)- Left Side @ Cruise Control Switch (2) - Remove
