Fastener Specifications
WARNING: This page is about a different car, the 2022 Chevrolet Bolt EUV. However, it is still accessible from the selected car via links, so may be relevant.

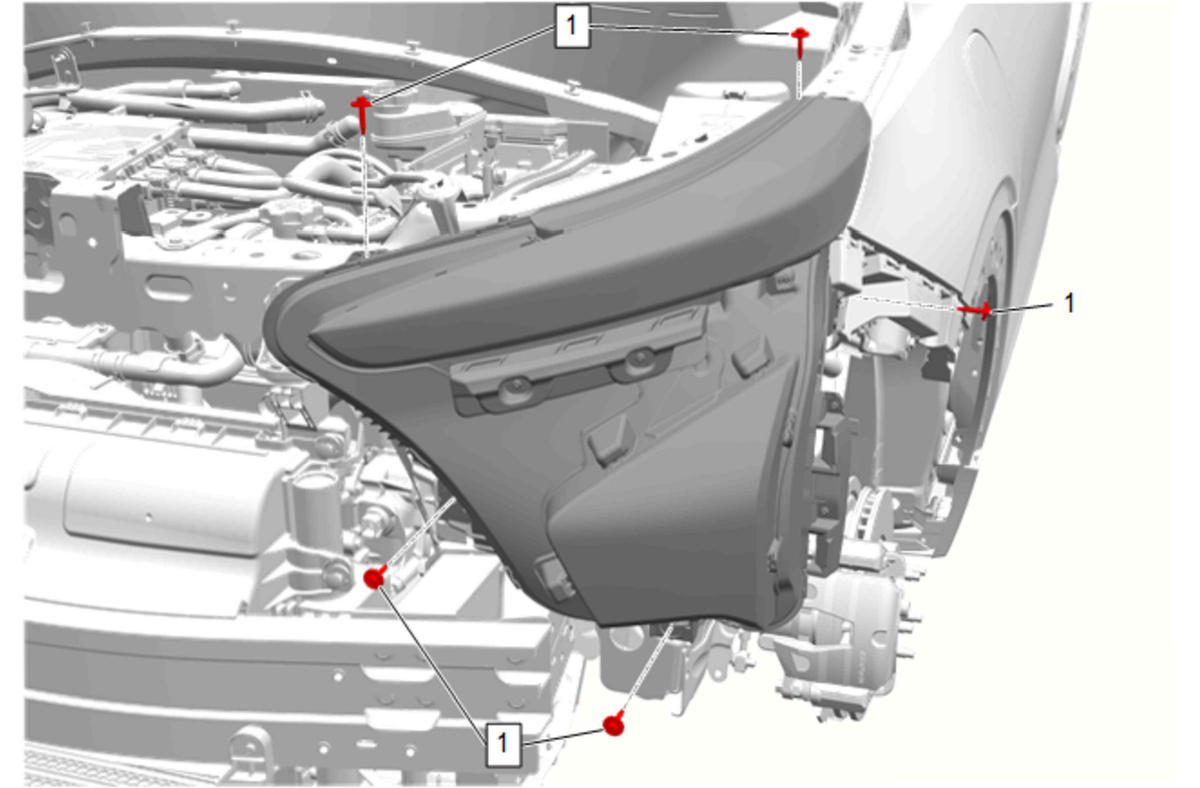

Front Headlamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Headlamp Replacement |

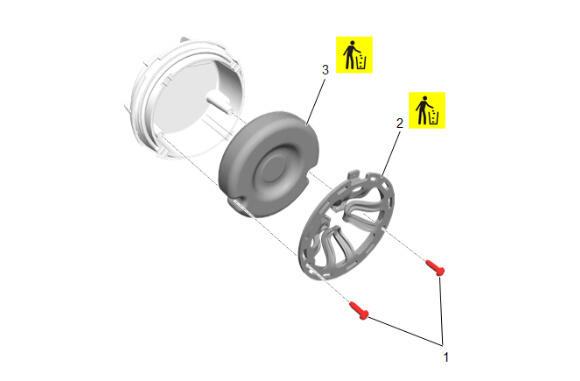

Headlamp Desiccant
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Desiccant Retainer Bolt [2x] | - | - | 0.4 N.m (4 lb in) | Headlamp Desiccant Retainer Replacement |
| 2 | Headlamp Desiccant Retainer | Yes | - | - | Headlamp Desiccant Retainer Replacement |
| 3 | Headlamp Desiccant | Yes | - | - | Headlamp Desiccant Retainer Replacement |

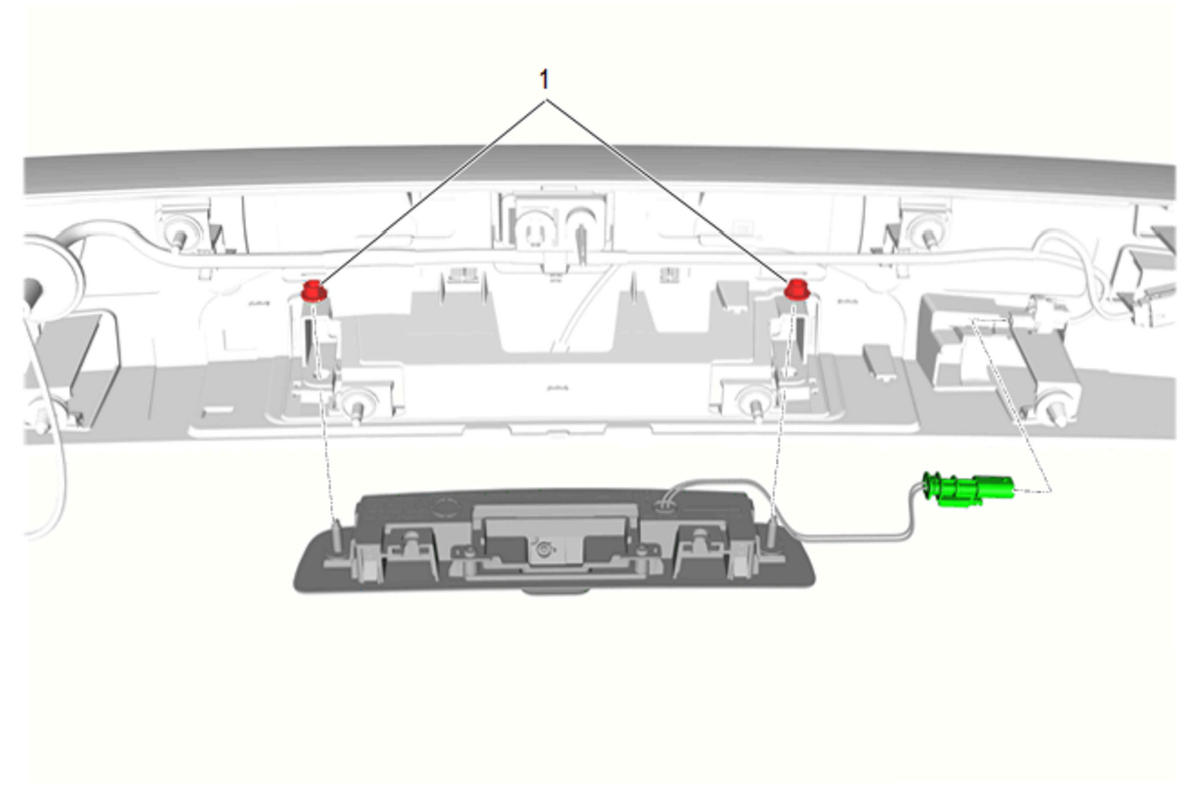

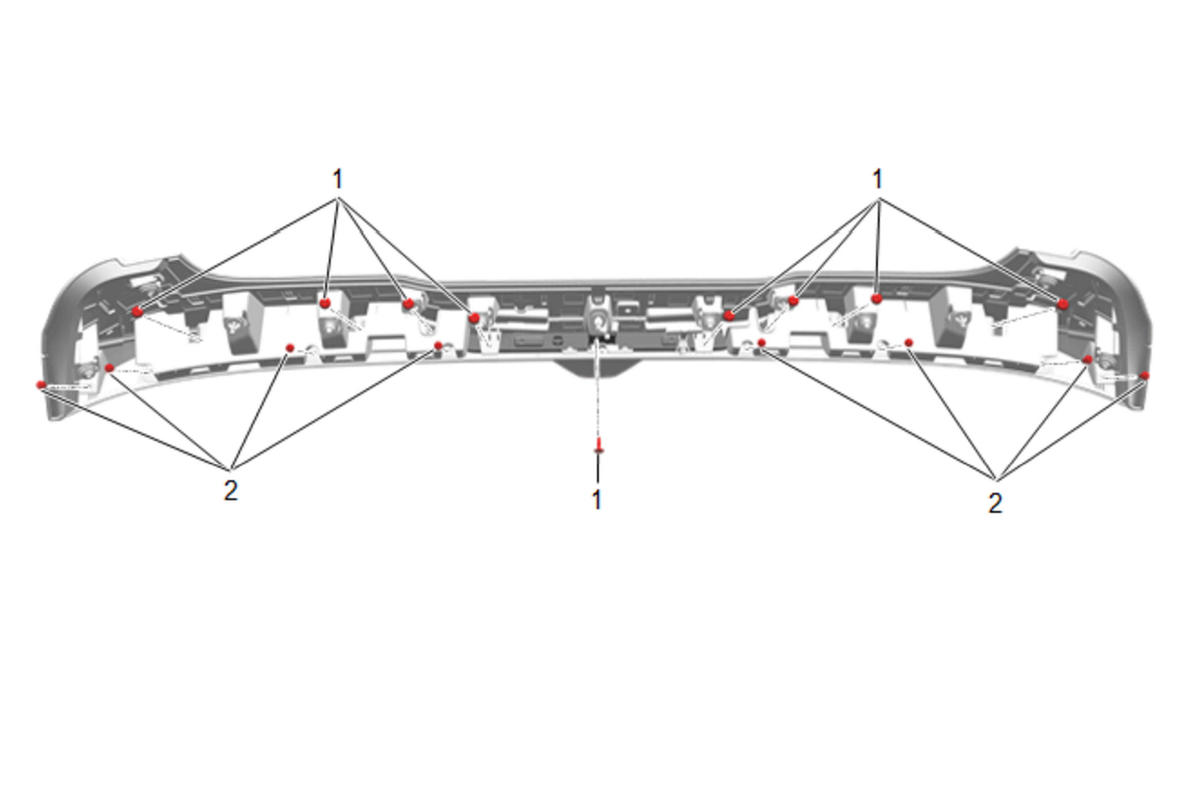

High Mount Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Mount Stop Lamp Bracket Bolt [9x] | - | - | 2.5 N.m (22 lb in) | High Mount Stop Lamp Replacement |
| 2 | Rear End Spoiler Bolt [8x] | - | - | 2.5 N.m (22 lb in) | High Mount Stop Lamp Replacement |

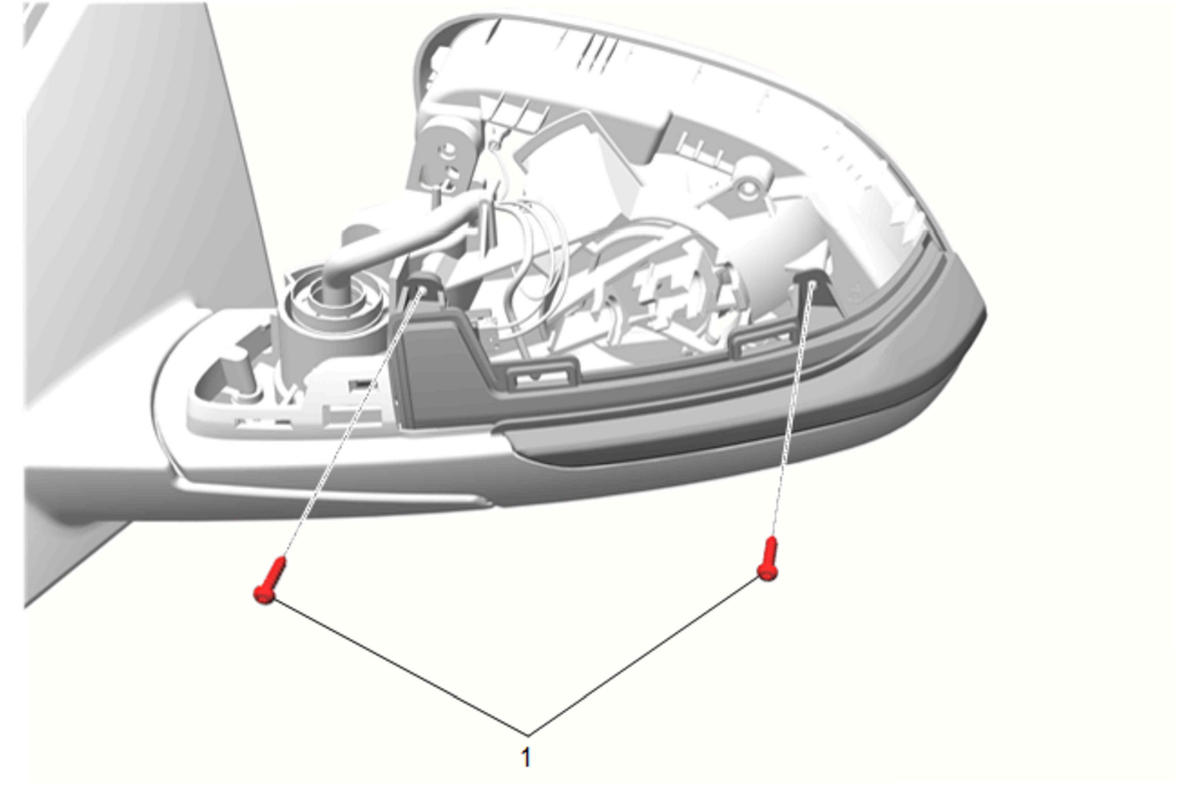

Outside Rearview Mirror Turn Signal Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Turn Signal Lamp Bolt [2x] | - | - | 0.85 N.m (8 lb in) | Outside Rearview Mirror Turn Signal Lamp Replacement |

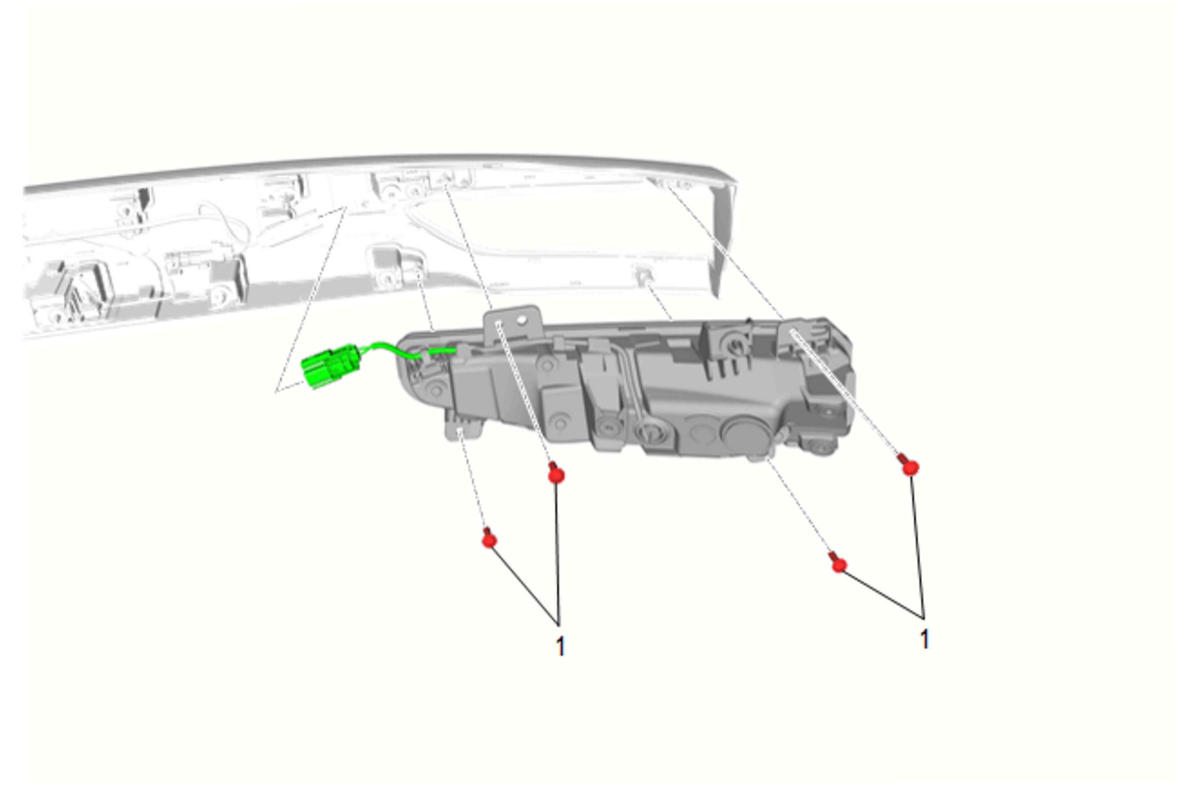

Rear Body Structure Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Body Structure Stop Lamp Replacement |

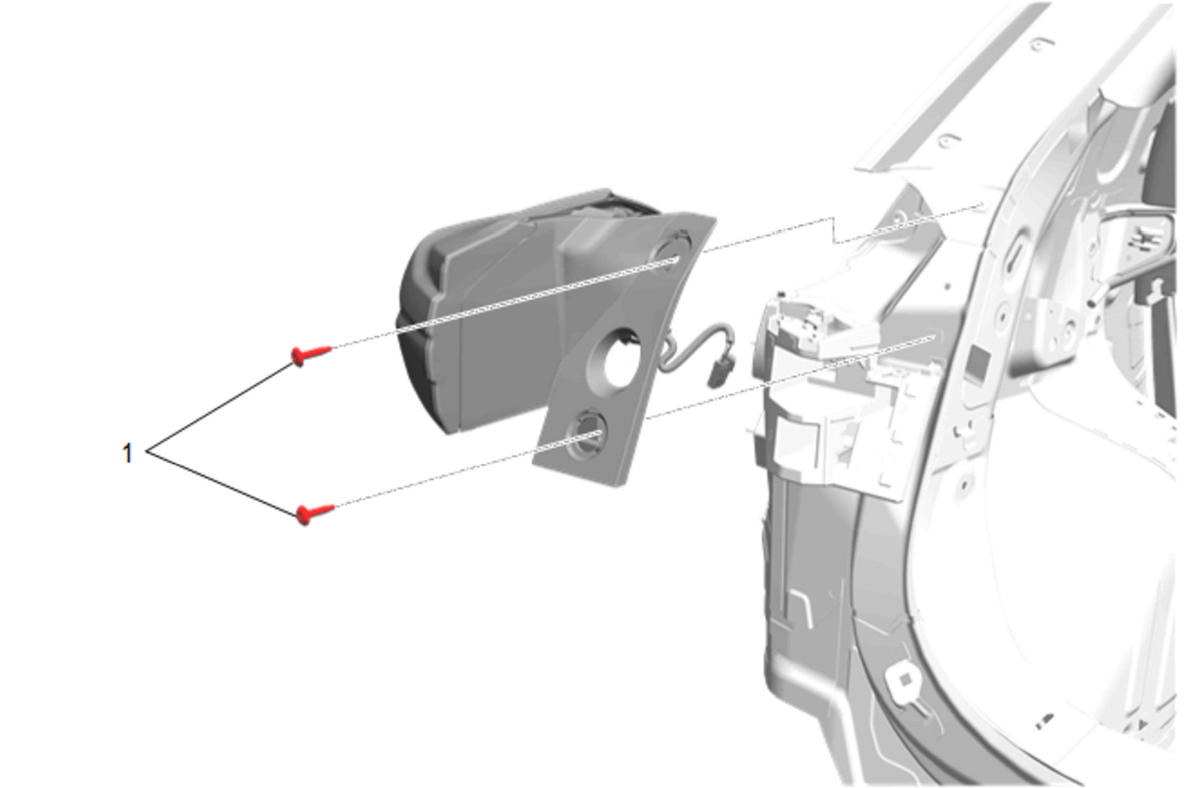

Rear Combination Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Combination Lamp Bolt [4x] | - | - | 1.3 N.m (12 lb in) | Rear Combination Lamp Replacement |

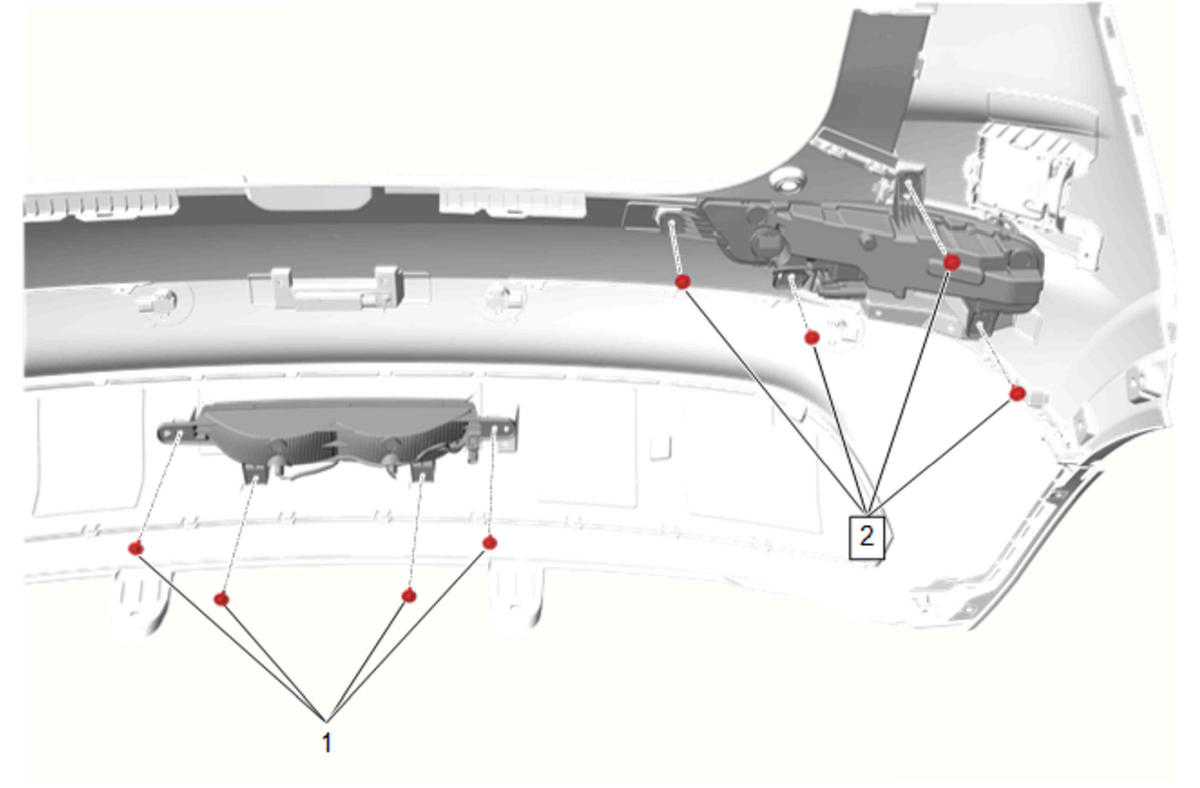

Rear Fascia Signal Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Fascia Lower Signal Lamp Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Rear Fascia Auxiliary Signal Lamp Replacement |
| 2 | Rear Fascia Signal Lamp Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Rear Fascia Signal Lamp Replacement |
Rear License Plate Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear License Plate Lamp Nut [2x] | - | - | 1.5 N.m (13 lb in) | Rear License Plate Lamp Module Replacement |
