Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

With a flat bladed plastic trim tool, start at the front and work your way back to release the clips.

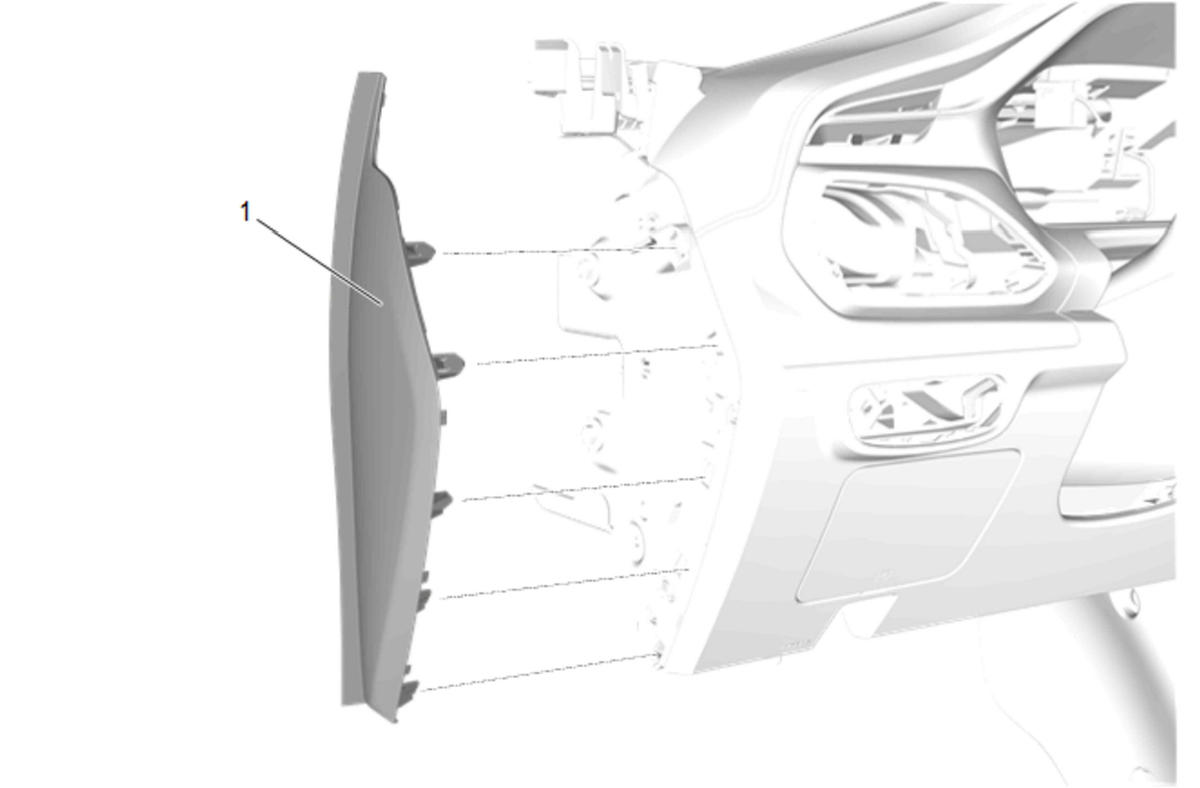

Instrument Panel Outer Trim Cover - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Release Cable Handle (1) @Instrument Panel Knee Bolster - Remove
Courtesy of GENERAL MOTORS COMPANY

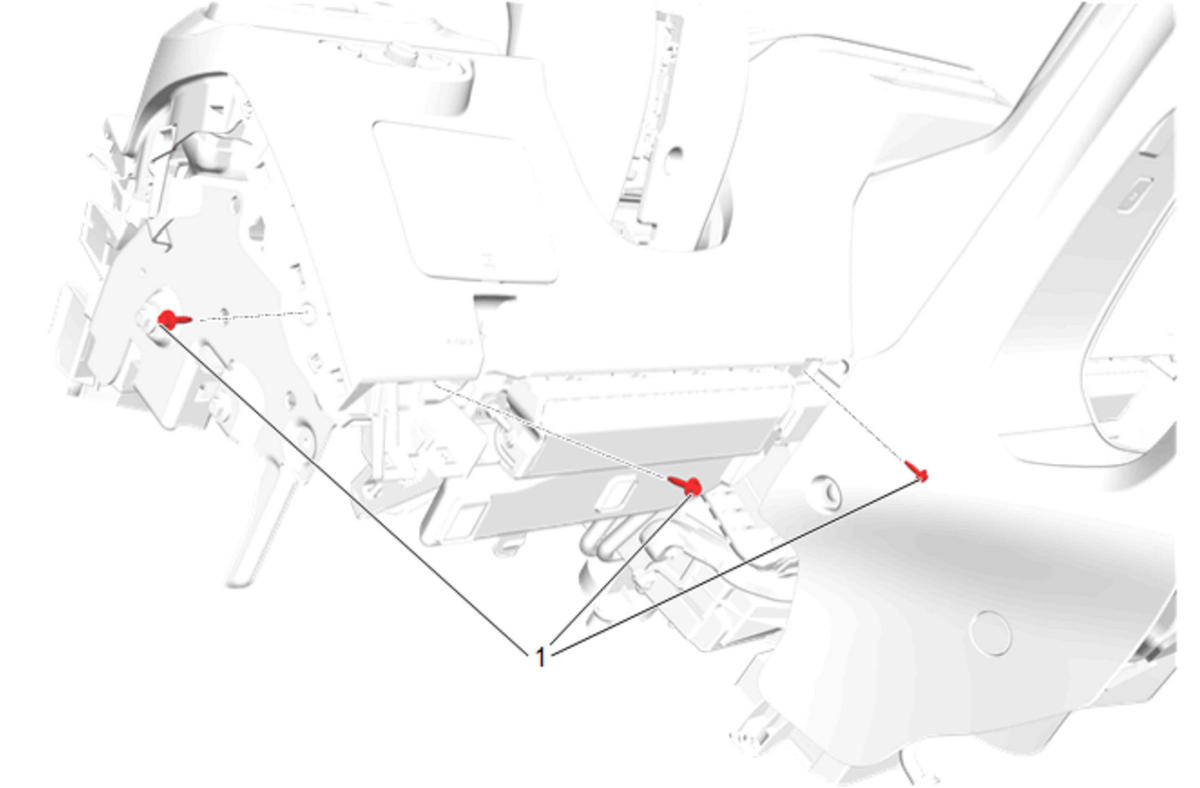

Instrument Panel Knee Bolster Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed tool, release instrument panel knee bolster (1).
Disconnect the electrical connector.
Instrument Panel Knee Bolster (1) - Remove
Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.
Courtesy of GENERAL MOTORS COMPANY

Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.
Courtesy of GENERAL MOTORS COMPANY

Rotate the steering wheel left and right to access the instrument panel steering column lower trim cover bolts (1).
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [4x]
Instrument Panel Steering Column Lower Trim Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Using a suitable plastic trim tool, release instrument panel steering column upper trim cover (1).
Disconnect the electrical connector.
Instrument Panel Steering Column Upper Trim Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Depress the retaining tabs on the on/off vehicle switch (1)
On/Off Vehicle Switch (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Driver Monitoring Camera (1) @ - Instrument Panel Steering Column Upper Trim Cover (2) - Remove
