Installation Procedure

  1. GM4298752Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  2. Fuel Tank (1) - Install
  3. GM4298750Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [2x]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Strap Bolt (1) - Install and tighten [4x] 22 N.m (16 lb ft)
  5. Remove the adjustable jack from under the fuel tank.
  6. GM4298747Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  7. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

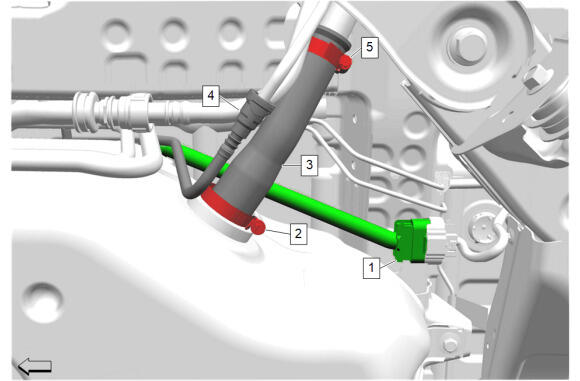

  8. GM6354104Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  9. Fuel Tank Filler Hose (3) - Install
  10. Fuel Tank Filler Hose Clamp (5) - Tighten to 4 N.m (35 lb in)
  11. Fuel Tank Filler Hose Clamp (2) - Tighten to 4 N.m (35 lb in)
  12. Electrical Connector (1) - Connect
  13. Connect the wiring harness retainers as necessary.
  14. Refill the fuel tank.
  15. Inspect for fuel leaks.
