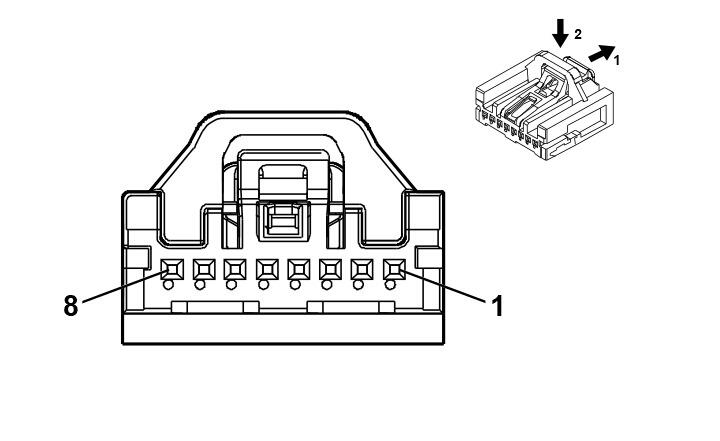

P17 Info Display Module X1 (UIJ/UIK)
WARNING: This page is about a different car, the 2022 GMC Sierra 1500 Limited. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 35068228
- Service Connector: 84769201
- Description: 8-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / WH |
1340 |
Battery Positive Voltage |
I |
- |
| 2 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
BK / WH |
2751 |
Signal Ground |
I |
- |
