Oil Pump Flow Control Solenoid Valve Replacement

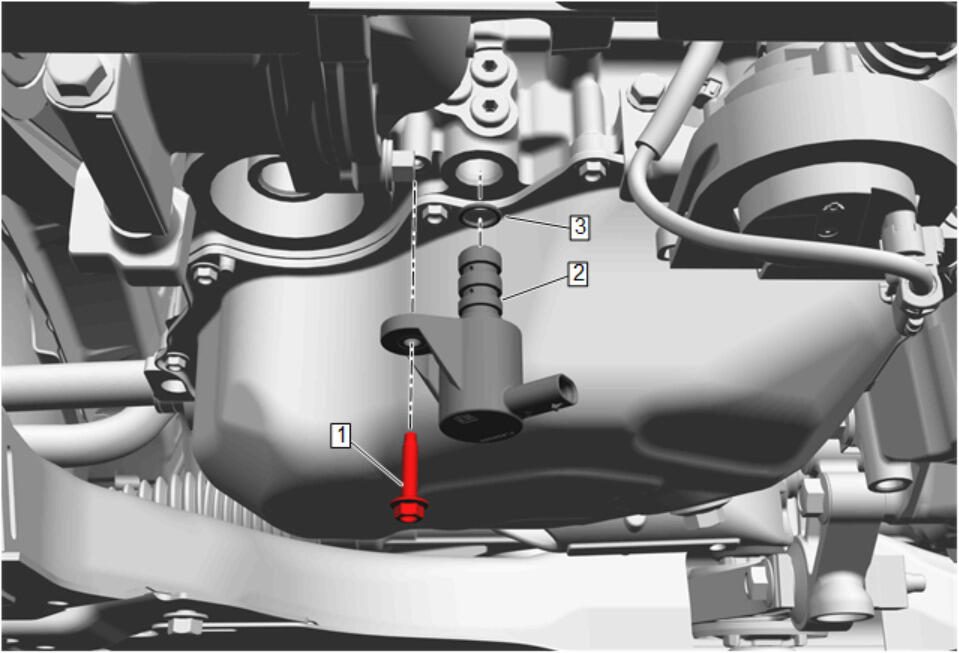

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Oil and Oil Filter Replacement |
|
| 1 | Oil Pump Flow Control Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Oil Pump Flow Control Valve Procedure Disconnect the oil pump flow control valve electrical connector. |
| 3 | Oil Pump Flow Control Valve Seal Procedure Remove and DISCARD the seal. |
