Intake Air Duct Replacement

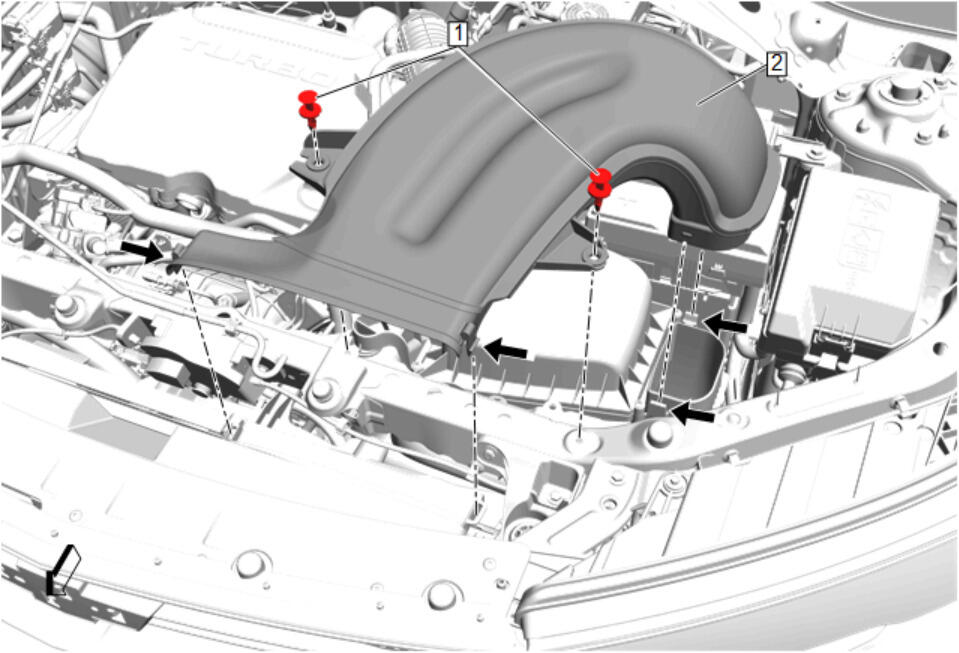

GM5391282Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Air Duct Retainer [2x]
2 Intake Air Duct
Procedure
Release the 4 retainer tabs (arrows) and pull upward the intake air duct.
