Accelerator Pedal Assembly Replacement

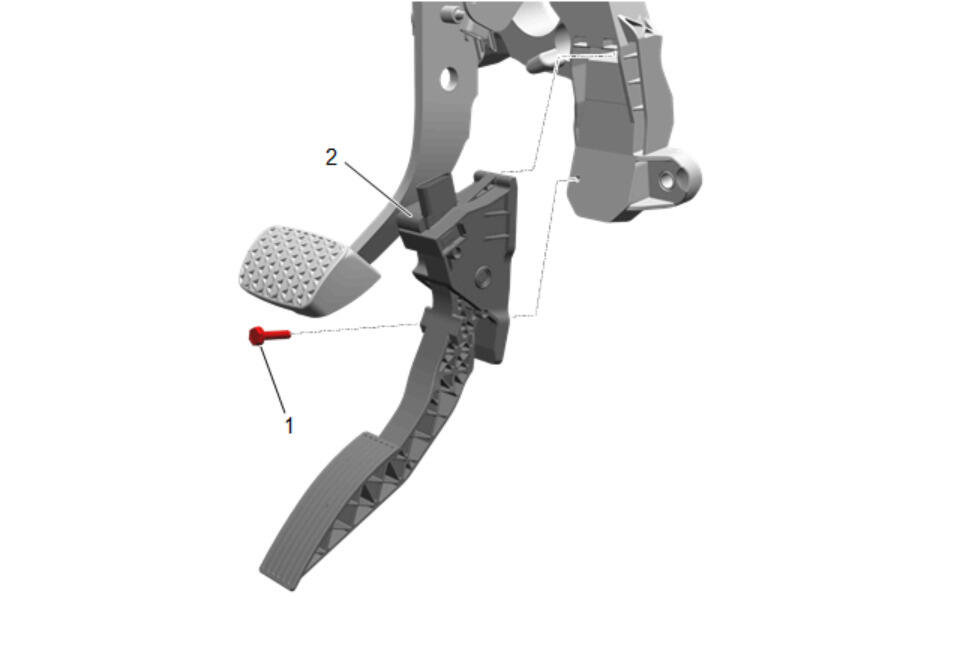

GM5209004Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Accelerator Pedal Fastener
CAUTION:

Fastener Caution


Tighten
3.5 N.m (31 lb in)
2 Accelerator Pedal Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Transfer accelerator pedal pad to pedal.
