Installation Procedure
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

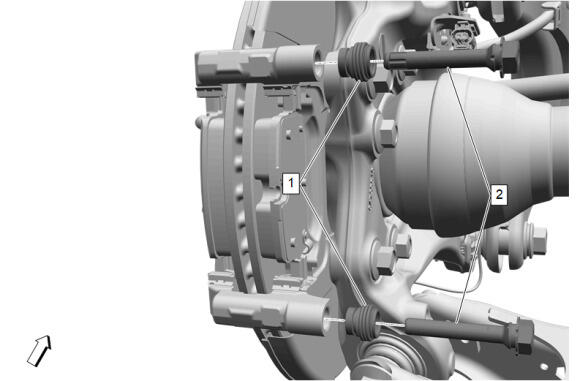

- Rear Brake Caliper Guide Pin Boot (1) - Install NEW [2x]
- Rear Brake Caliper Guide Pin (2) - Install [2x]

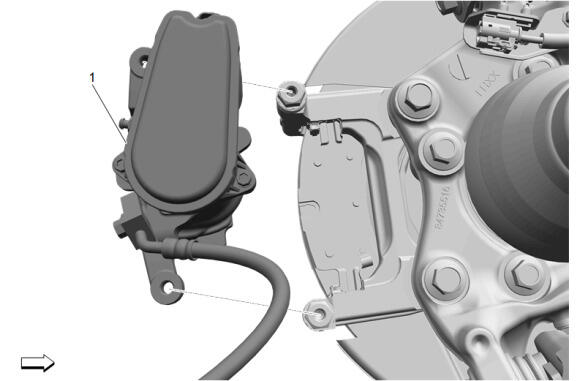

- Rear Brake Caliper (1) - Install

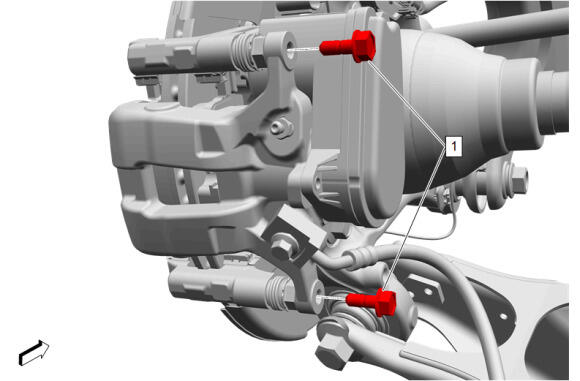

- Rear Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] - Fastener Specifications CAUTION:NOTE:
DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.

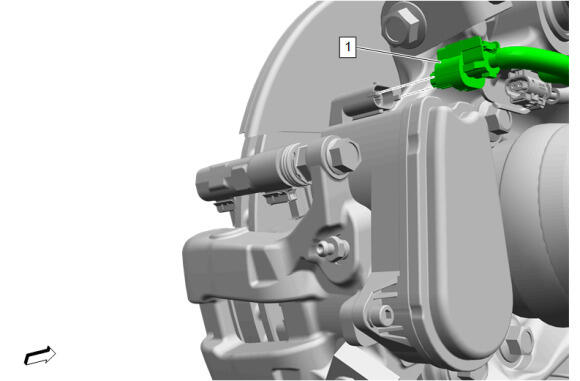

- Electrical Connector (1) @Rear Parking Brake Actuator - Connect

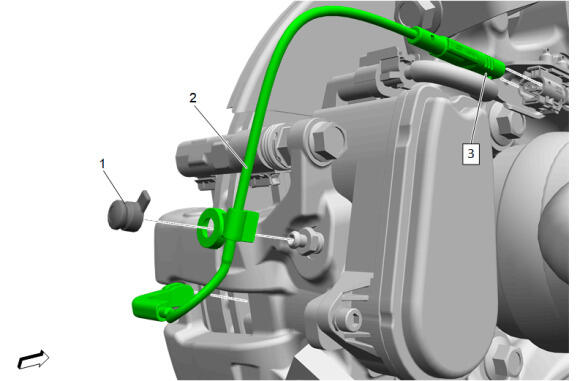

- { If equipped }Rear Disc Brake Pad Wear Sensor (2) @Rear Disc Brake Pad - InstallNOTE:
Rear disc brake pad wear sensor heads are brittle and should be handled with care when installing.
- { If equipped }Rear Brake Bleeder Valve Cap (1) - Install
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Calibrate the park brake. Park Brake Calibration
NOTE:
The upper brake caliper guide pin is equipped with a bushing and must be installed in the same position.
