Home >> Chevrolet >> 2021 >> Traverse LS, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Antilock Brake System Wiring Schematics >> Power, Ground, Serial Data, Traction Control and References

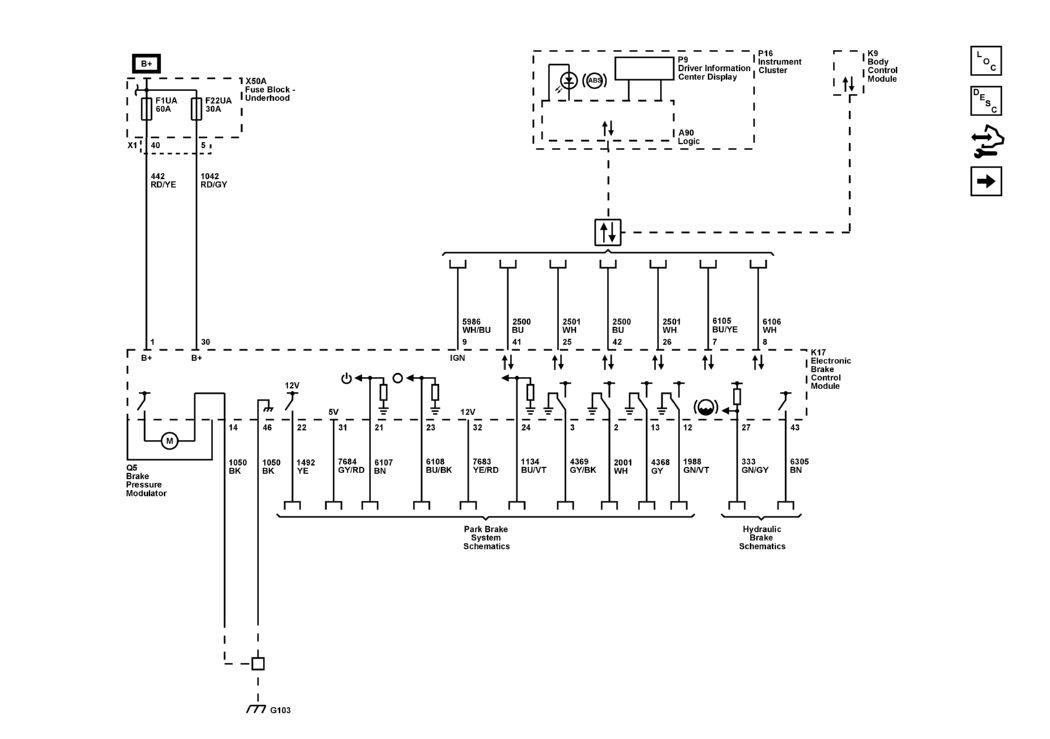

Power, Ground, Serial Data, Traction Control and References

GM5699416

Courtesy of GENERAL MOTORS COMPANY
