Installation Procedure

  1. GM4751162Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Maneuver the steering column lower trim cover around the steering column tilt and telescoping lever as necessary.

    Position the steering column lower trim cover (2) on the steering column.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Steering Column Lower Trim Cover Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
  3. Turn the steering wheel approximately 90 degrees to the right of the centered position.
  4. GM4751161Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

  5. Turn the steering wheel approximately 90 degrees to the left of the centered position.
  6. GM4751160Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

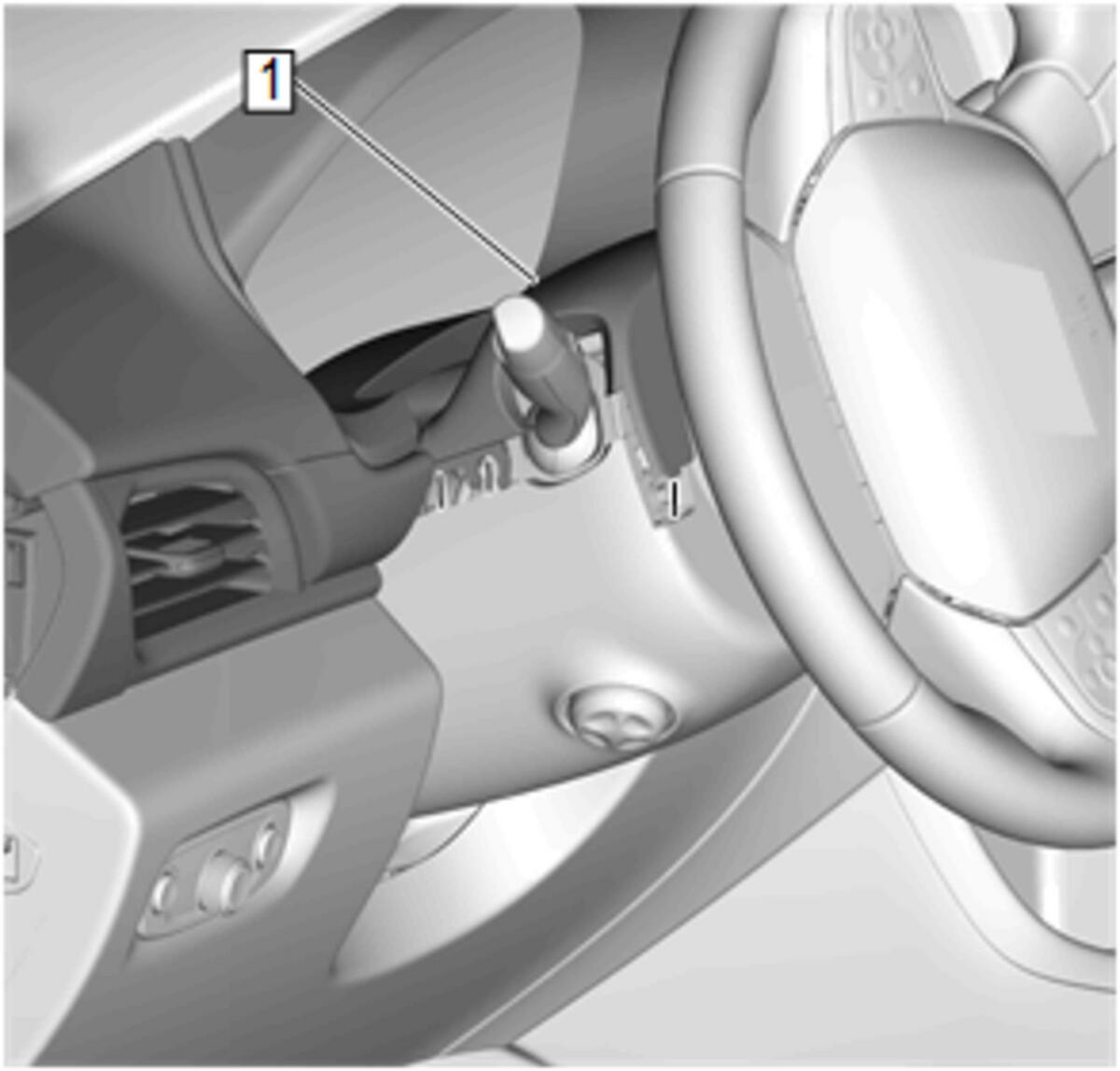

  7. GM5121915Courtesy of GENERAL MOTORS COMPANY

    Install the Instrument Panel Trim Pad - Left Side (1) to the steering column lower trim cover. Instrument Panel Trim Pad Replacement - Left Side

  8. Turn the steering wheel to the centered position.
