B109 Transfer Case Fluid Temperature Sensor
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

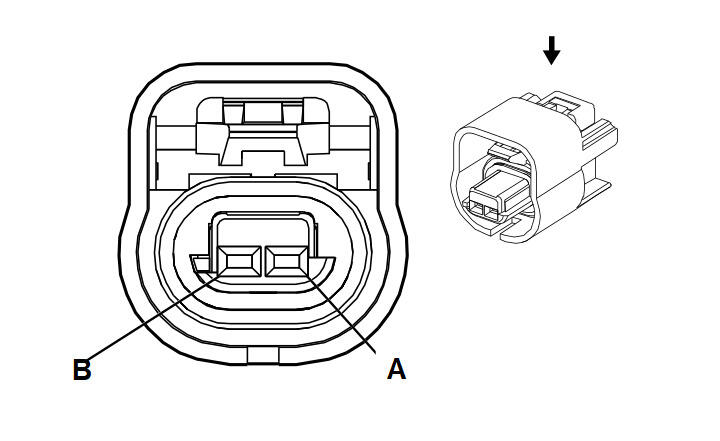

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-14 (GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| A | 0.35 0.5 |
BN / WH BN / WH |
2458 2458 |
Transfer Case Sump Oil Temperature Sensor 5 Volt Reference Transfer Case Sump Oil Temperature Sensor 5 Volt Reference |
I I |
F46 -F46 |
| B | 0.35 0.5 |
BK / BU BK / BU |
2459 2459 |
Transfer Case Fluid Temperature Sensor Signal 2 Transfer Case Fluid Temperature Sensor Signal 2 |
I I |
F46 -F46 |
