B35 Engine Oil Level Indicator Switch
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

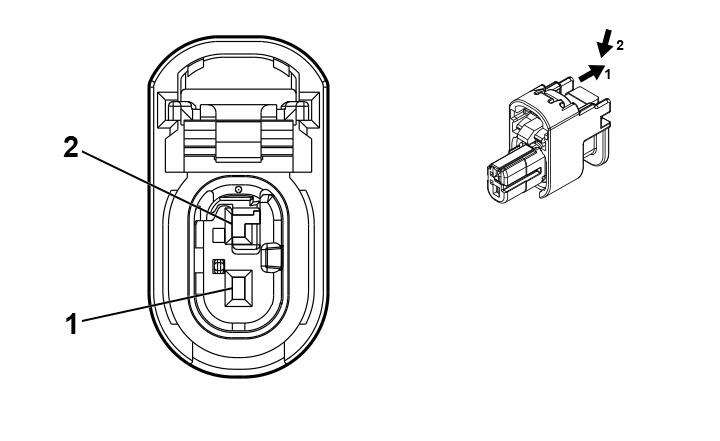

Connector Part Information
- Harness Type:Engine Oil Level Sensor Harness
- OEM Connector: 13514239
- Service Connector: Service by Harness - See Part Catalog
- Description: 2 -Way
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK / WH |
6151 |
Engine Control Module Ground 61 |
I |
- |
| 2 |
- |
BN / GN |
1174 |
Oil Level Switch Signal |
I |
- |
