Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

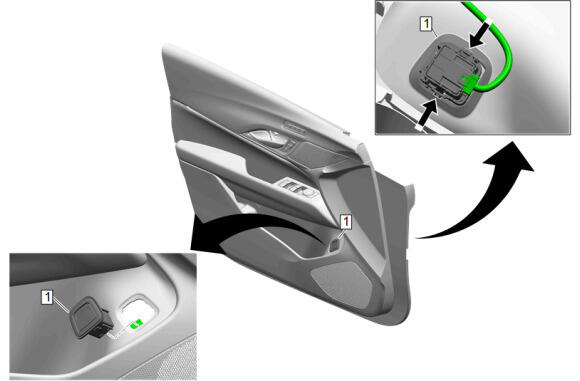

  1. GM5485013Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid Release Switch (1) - Install

  2. Connect the electrical connectors.
  3. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
