Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

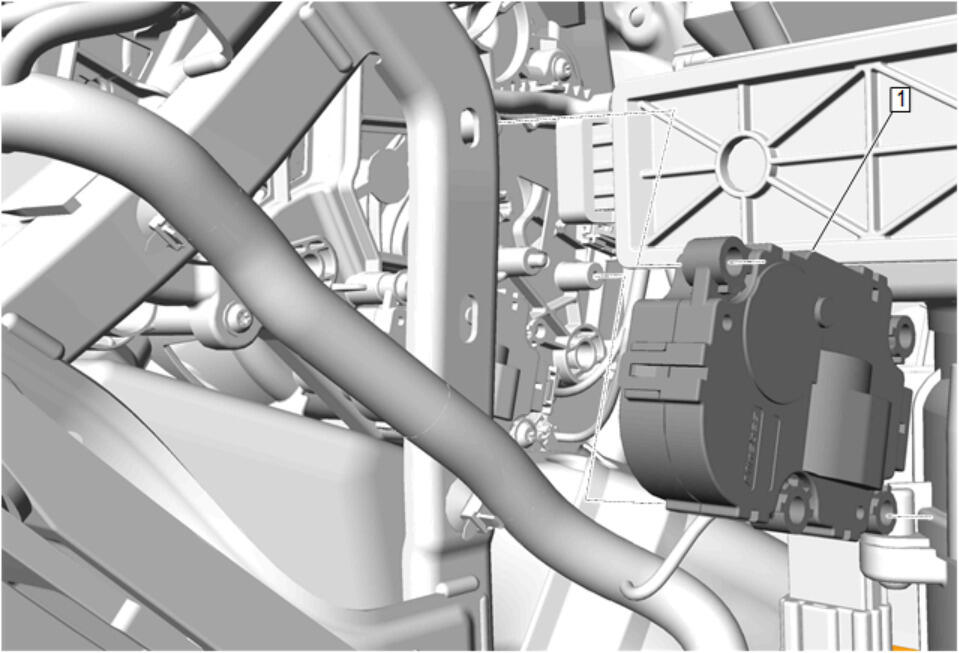

Programmable Temperature Valve Actuator-Mode Valve Actuator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

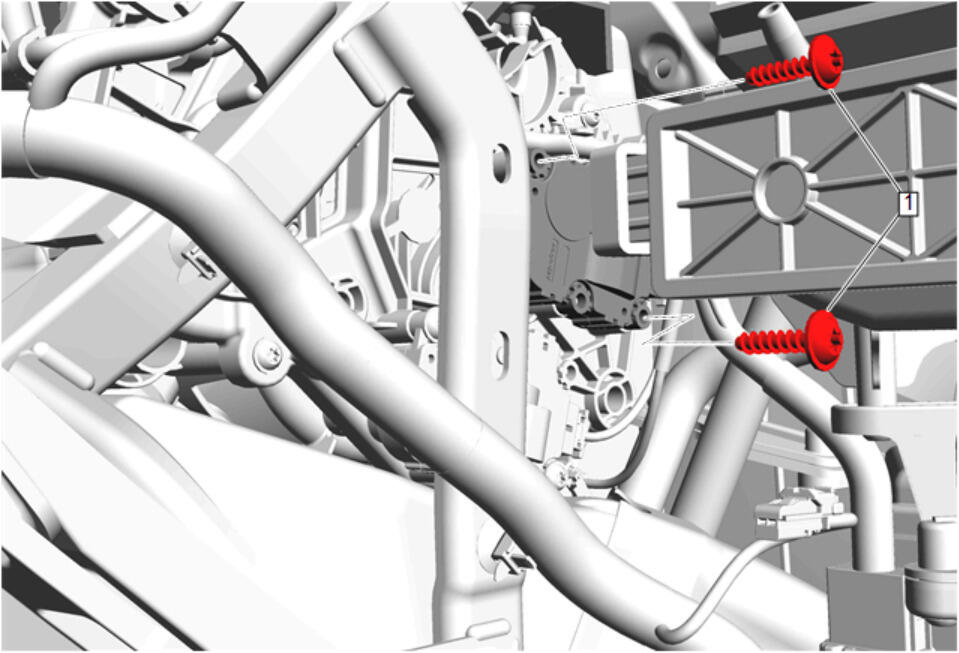

Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors at the instrument panel compartment.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications
Connect the instrument panel lower airbag electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Passenger Side (2) - Install
Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
Connect electrical connections, if applicable.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

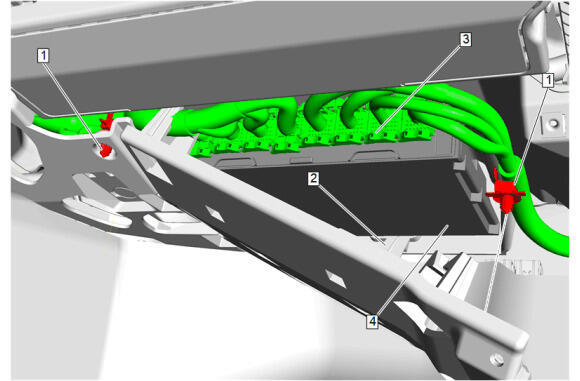

Connect the body control module connectors (3).
Body Control Module (4) - Install
Attach the wiring harness clips (1) onto the body control module bracket.
Install the detent (2) onto the instrument panel lower trim panel insulator.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Lock the body control module bracket (2) to the instrument panel lower trim panel insulator.
Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Enable the SIR System. SIR Disabling and Enabling
