Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.
Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.
- Instrument Panel Steering Column Upper Trim Cover (1) - Reposition
Rotate the steering wheel left and right to access the instrument panel steering column lower trim cover bolts (1).
- Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [3x]
- Instrument Panel Steering Column Lower Trim Cover (2) - Remove

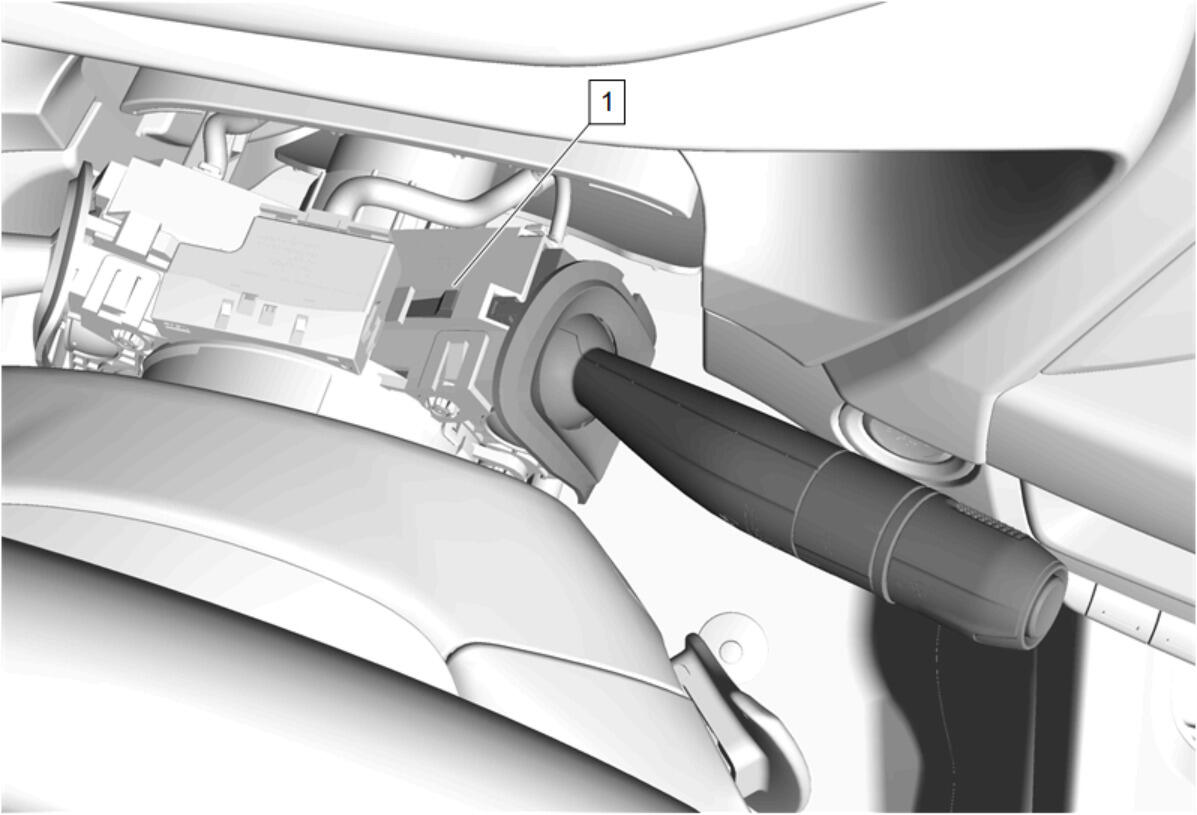

Disengage the windshield wiper and windshield washer switch lower retaining tab (1).

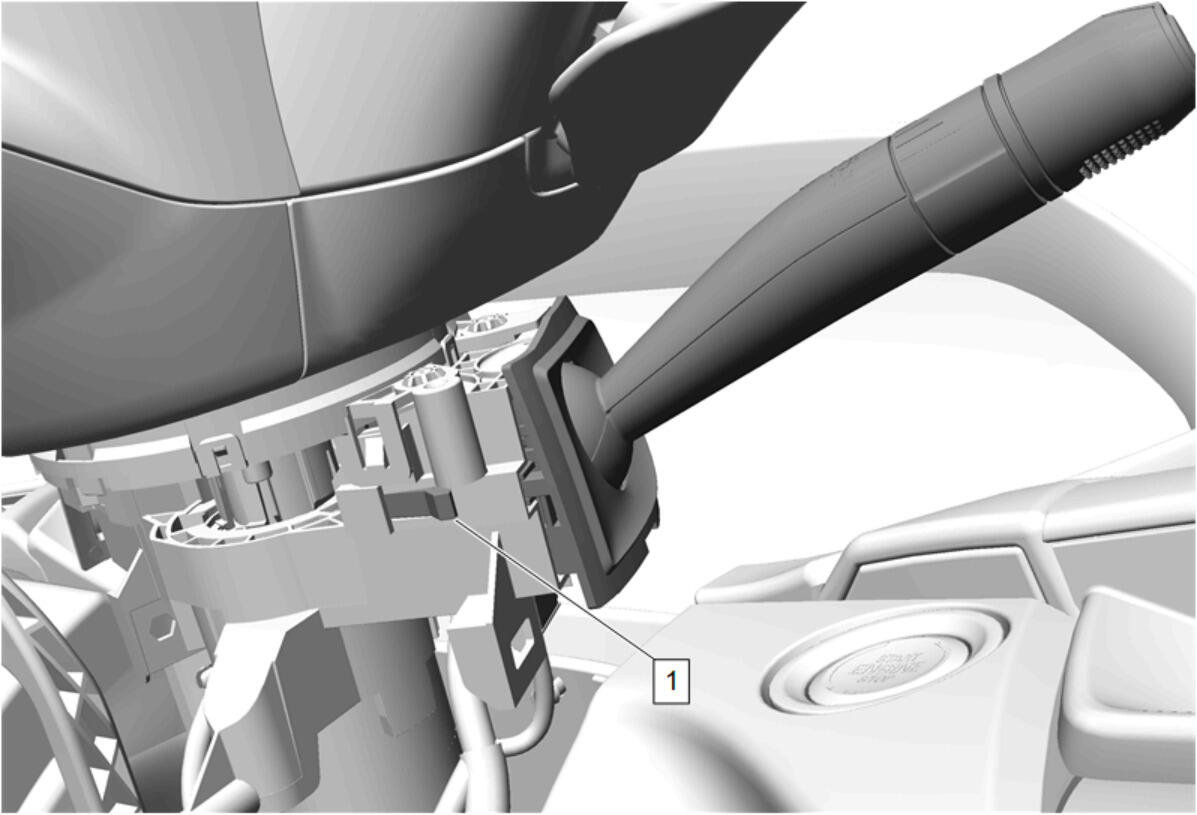

Disengage the windshield wiper and windshield washer switch upper retaining tab (1).
- Disconnect the electrical connector.
Windshield Wiper and Windshield Washer Switch (1) - Remove
