Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

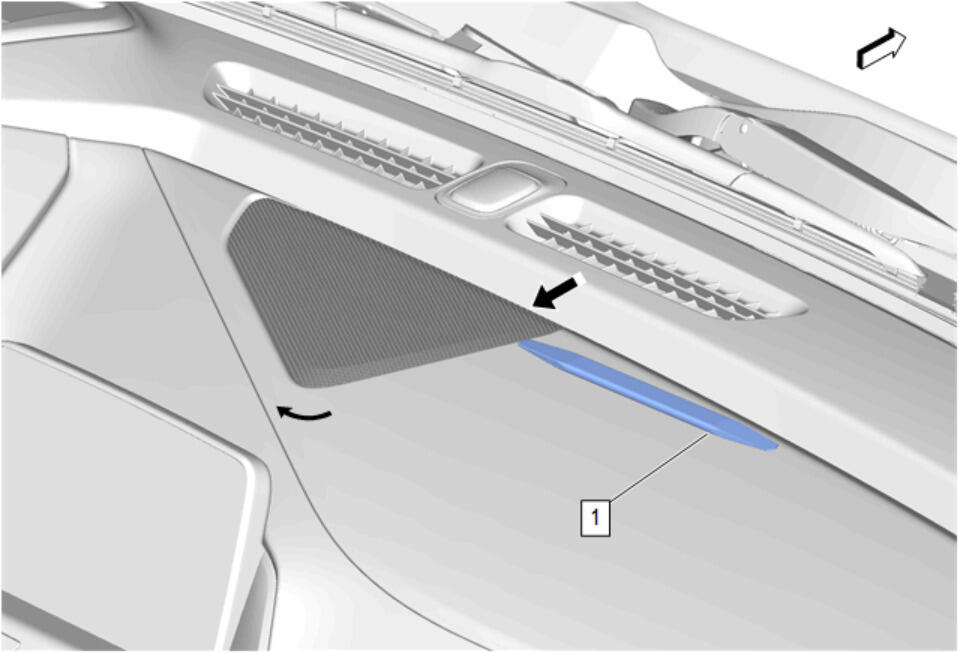

Push on the grille where indicated to create a opening for the flat-bladed plastic trim tool.
- Using a flat-bladed plastic trim tool (1), release the retainer clips in a clockwise direction.
Radio Front Center Speaker Grille (1) - Remove
Radio Front Center Speaker Bolt (1) - Remove [ 2x ]
- Disconnect the electrical connector.
- Radio Front Center Speaker (2) - Remove
