Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

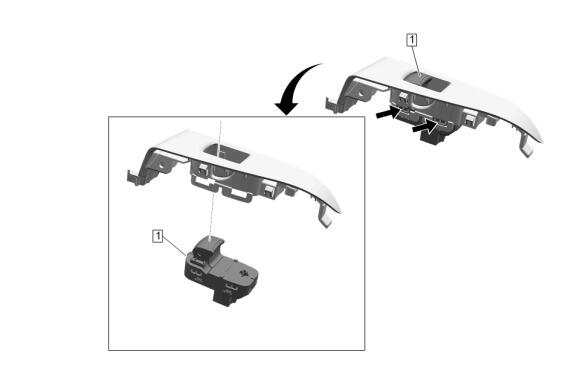

Rear Side Door Window Switch (1) - Install
Connect the electrical connector.

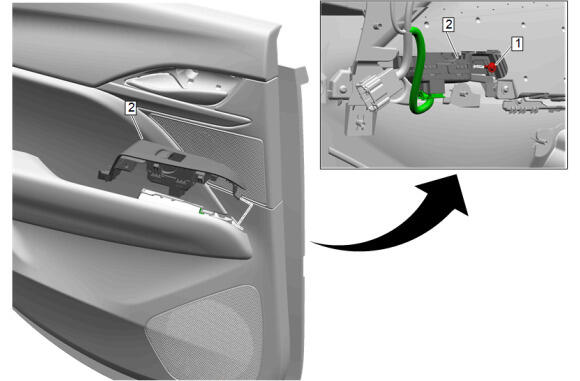

- Rear Side Door Armrest Switch Mount Plate (2) - Install
- Rear Side Door Trim Bolt (1) - Install and tighten - Fastener Specifications
- Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
CAUTION:
Refer to Fastener Caution .
