Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

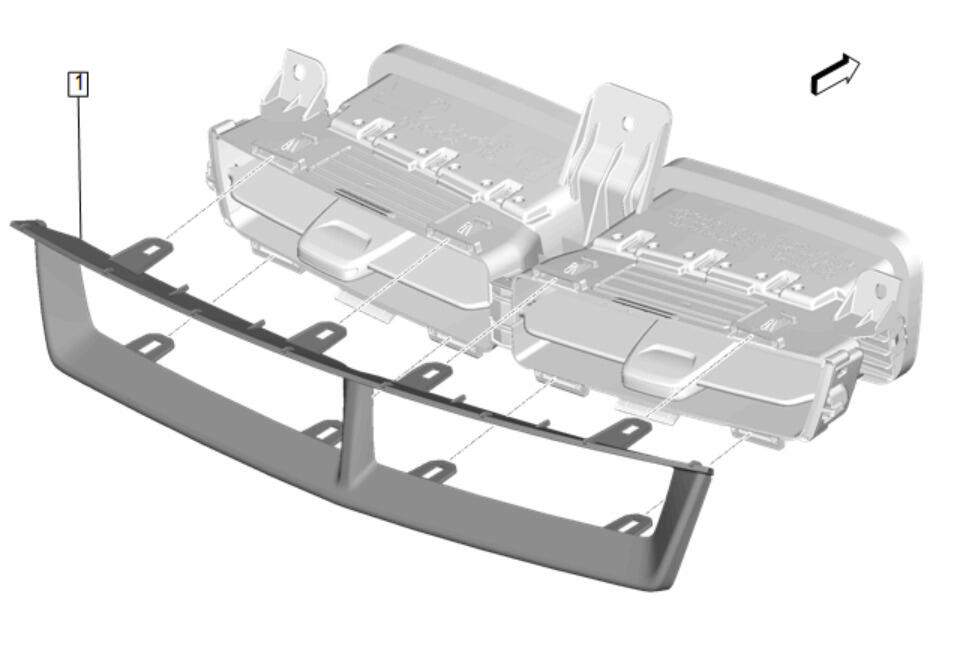

Install the instrument panel trim plate (1) to the instrument panel center air outlet.
Instrument Panel Trim Plate (2) - Install
- Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Connect the electrical connectors.
- Radio Control (2) - Install
- Radio Control Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Instrument Panel Radio Front Trim Plate (1) - Install
Instrument Panel Radio Front Trim Plate (1) - Install
CAUTION:
Refer to Fastener Caution .
