Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

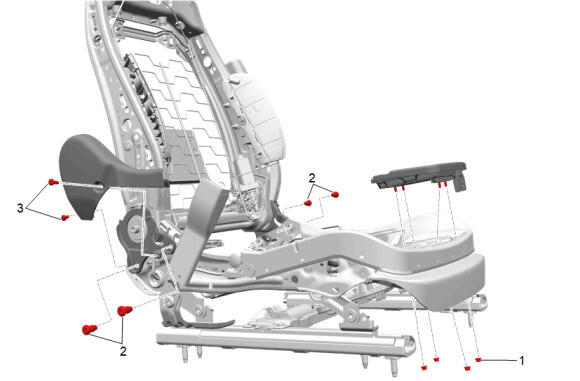

Front Seat - Inboard
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Cushion Front Extension Frame Nut [ 4x ] | - | - | 4.7 (42 lb in) | Front Seat Cushion Front Extension Frame Replacement |
| 2 | Front Seat Frame Bolt [ 4x ] | - | - | 45 (33 lb ft) | Front Seat Back Frame Replacement |
| 3 | Front Seat Inner Recliner Finish Cover Bolt [ 2x ] | - | - | 4 (35 lb in) | Front Seat Inner Recliner Finish Cover Replacement |

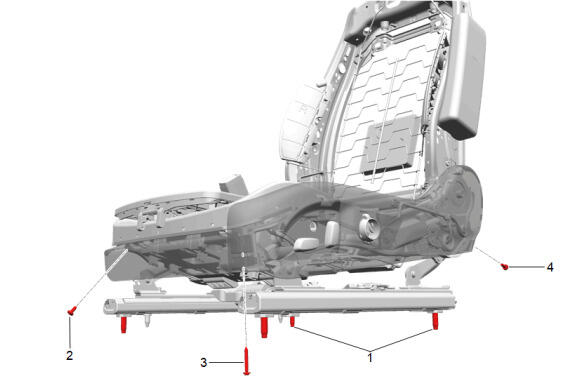

Front Seat - Outboard
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Bolt [ 4x ] | - | - | 45 (33 lb ft) | Front Seat Removal and Installation |
| 2 | Front Seat Cushion Front Finish Cover Bolt | - | - | 4 (35 lb in) | Front Seat Cushion Front Finish Cover Replacement |
| 3 | Front Seat Cushion Outer Finish Cover Bolt-Front | - | - | 4 (35 lb in) | Front Seat Cushion Outer Finish Cover Replacement |
| 4 | Front Seat Cushion Outer Finish Cover Bolt-Rear | - | - | 4 (35 lb in) | Front Seat Cushion Outer Finish Cover Replacement |

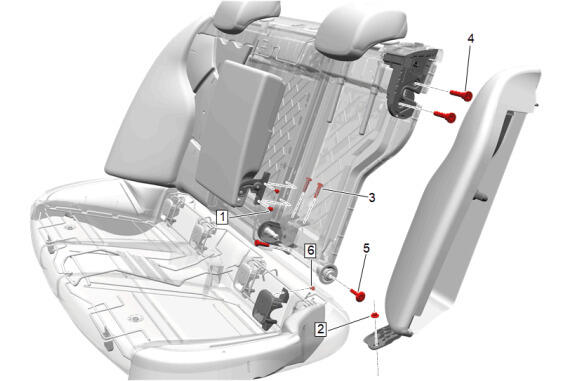

Rear Seat
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Armrest Bolt [ 2x ] | - | - | 6 (53 lb in) | Rear Seat Armrest Replacement |
| 2 | Rear Seat Back Bolster Nut | - | - | 9 (80 lb in) | Rear Seat Back Bolster Replacement |
| 3 | Rear Seat Back Cushion Hinge Bolt [ 3x ] | - | - | 45 (33 lb ft) | Rear Seat Back Hinge Replacement |
| 4 | Rear Seat Back Cushion Latch Bolt [ 2x ] | - | - | 45 (33 lb ft) | Rear Seat Back Cushion Latch Replacement |
| 5 | Rear Seat Back Outer Pivot Bolt | - | - | 23 (17 lb ft) | Rear Seat Back Cover and Pad Replacement (60 Percent Seat) Rear Seat Back Cover and Pad Replacement (40 Percent Seat) |
| 6 | Rear Seat Hinge Bracket Bolt | - | - | 2 (18 lb in) | Child Seat Bracket Trim Cover Replacement |
