Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

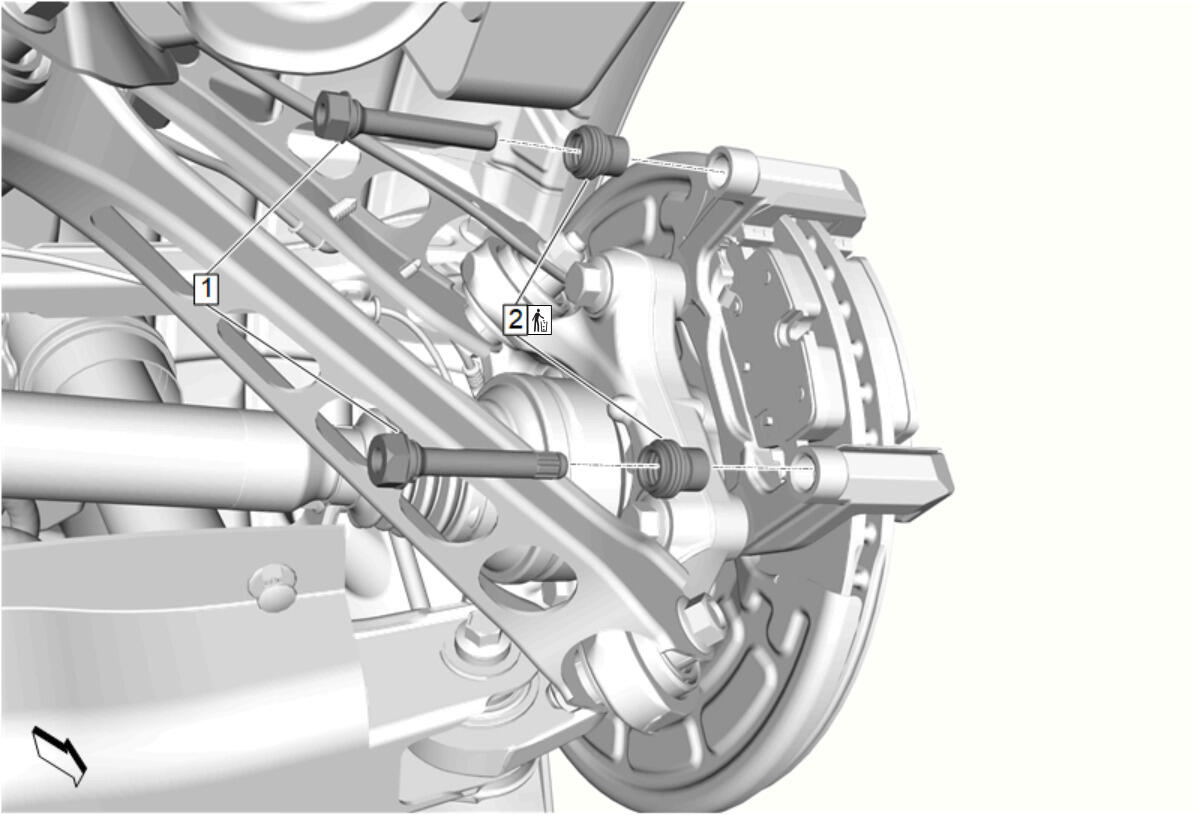

Rear Brake Caliper Guide Pin Boot (2) - Install NEW [2x]

NOTE:

DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
The lower brake caliper guide pin is equipped with a bushing and must be installed in the same position.

Rear Brake Caliper Guide Pin (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

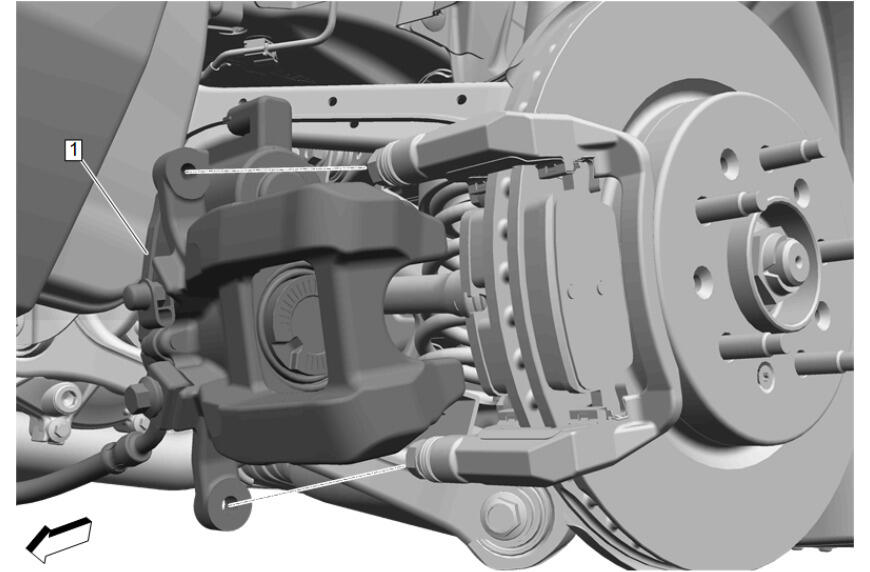

Rear Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

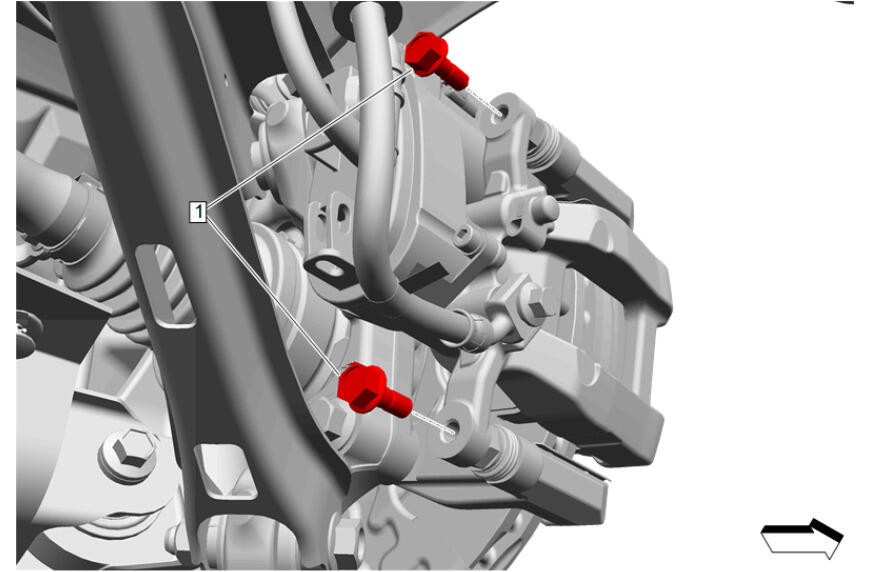

Rear Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

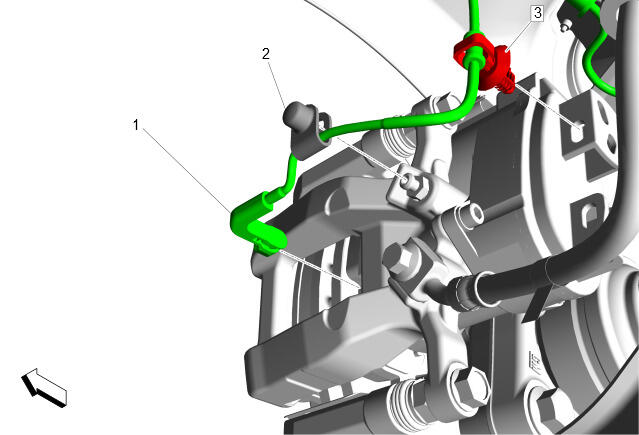

{If equipped} Rear Disc Brake Pad Wear Sensor (1) - Install
{If equipped} Rear Brake Caliper Bleeder Valve Cap (2) - Install
{If equipped} Retainer (3) - Install
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Calibrate the park brake. Park Brake Calibration
