Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

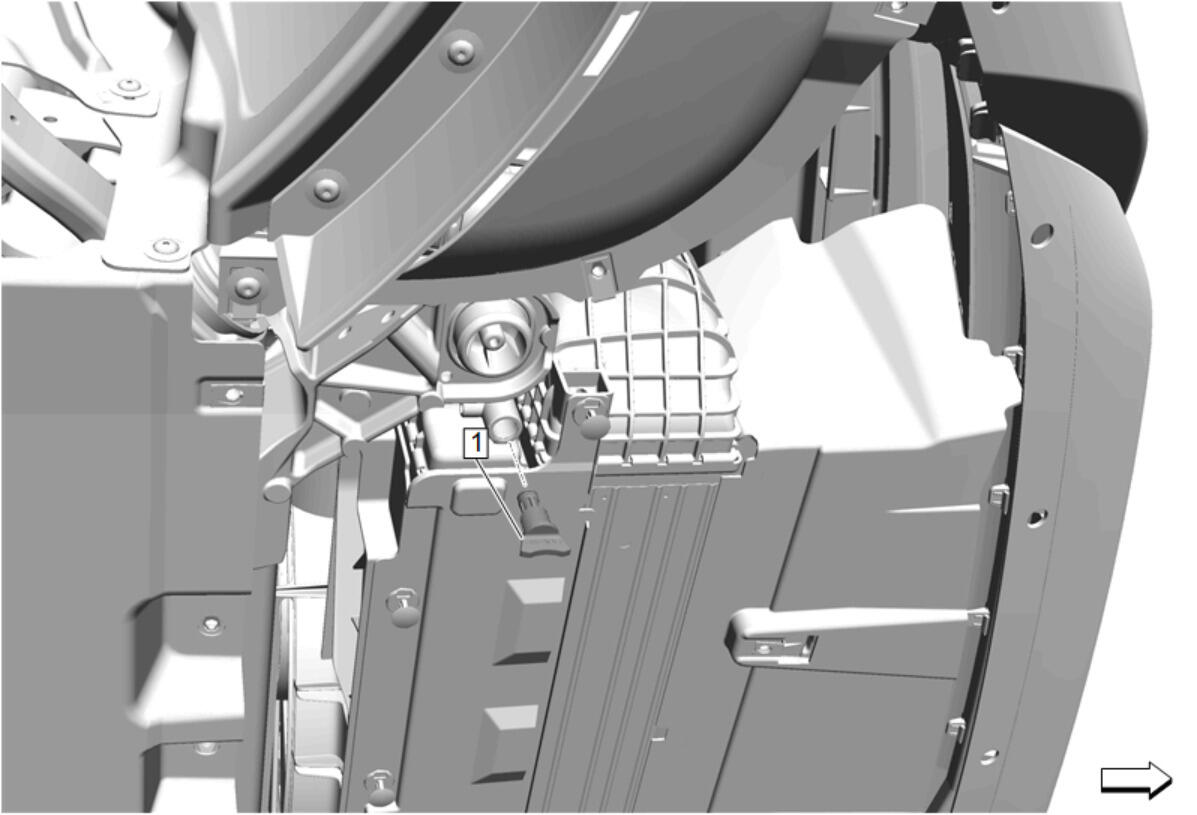

- Install the radiator drain cock (1) to the engine radiator and rotate clockwise to close.
- Remove the drain pan.
- Front Bumper Fascia Center Air Deflector (1) - Install
- Front Bumper Fascia Center Air Deflector Retainer (3) - Install [2x]CAUTION:
Refer to Fastener Caution .
- Front Bumper Fascia Center Air Deflector Bolt (2) - Install and tighten Fastener Specifications
- Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten Fastener Specifications
[6x]
- Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [3x] - Fastener Specifications
- Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [10x] Fastener Specifications .
- Remove the support and lower the vehicle.
- Fill the cooling system to the proper level. Cooling System Draining and Filling (L3B Static Fill) Cooling System Draining and Filling (L3B GE 47716)
- Start the engine and check for coolant leaks.
