Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Air Conditioning Compressor and Condenser Hose Seal - Install NEW
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

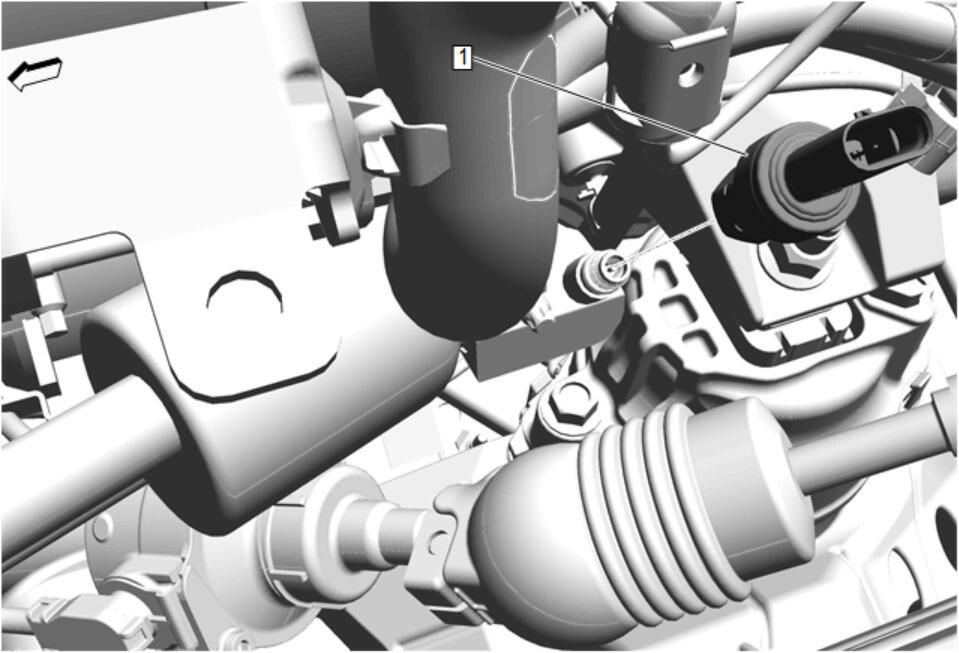

Air Conditioning Refrigerant Pressure Sensor (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

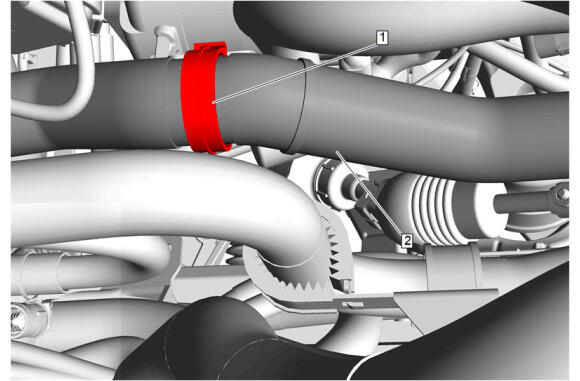

Position the radiator inlet hose (2) to its original routing and fasten the radiator inlet hose clip (1).
