Fastener Specifications

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5423965Courtesy of GENERAL MOTORS COMPANY

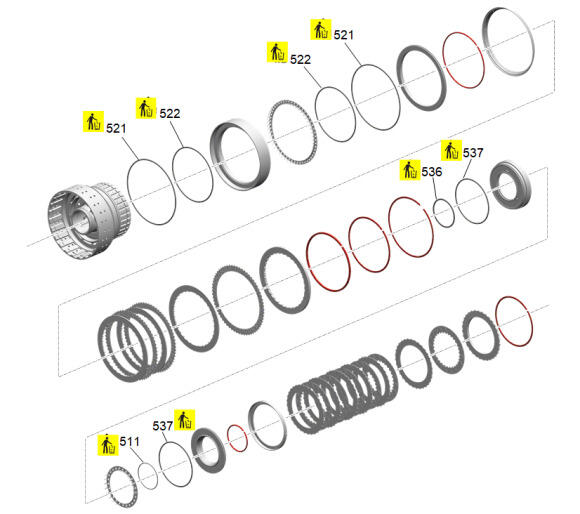

1-2-3-4-6-7-8-10 Reverse and 4-5-6-7-8-9-10 Reverse Clutch Assembly

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
510 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring - - - Triple Clutch Housing Assemble
511 2-3-4-5-7-9-10 Clutch Piston Seal - Inner Yes - - Triple Clutch Housing Assemble
521 4-5-6-7-8-9-10-Reverse Clutch Piston Seal - Outer [ 2x ] Yes - - Triple Clutch Housing Assemble
522 4-5-6-7-8-9-10-Reverse Clutch Piston Seal - Inner [ 2x ] Yes - - Triple Clutch Housing Assemble
527 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Retaining Ring - - - Triple Clutch Housing Assemble
533 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring - Inner - - - Triple Clutch Housing Assemble
534 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring - Middle - - - Triple Clutch Housing Assemble
535 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring - Outer - - - Triple Clutch Housing Assemble
536 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Inner Yes - - Triple Clutch Housing Assemble
537 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Outer [ 2x ] Yes - - Triple Clutch Housing Assemble
547 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring - - - Triple Clutch Housing Assemble
GM5423967Courtesy of GENERAL MOTORS COMPANY

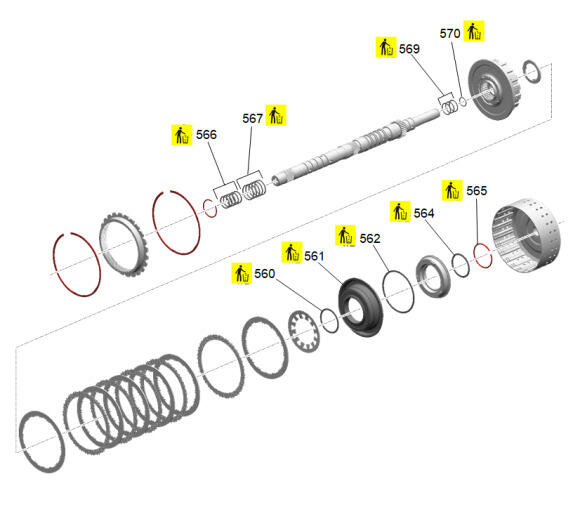

1-3-5-6-7-8-9 Clutch Assembly

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
550 Direct Overdrive Internal Gear Retaining Ring [ 2x ] - - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
553 Turbine Shaft Retainer Ring - - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
560 1-3-5-6-7-8-9 Clutch Piston Seal Yes - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
561 1-3-5-6-7-8-9 Clutch Piston Yes - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
562 1-3-5-6-7-8-9 Clutch Piston Dam Seal Yes - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
564 1-3-5-6-7-8-9 Clutch Piston Dam Seal Yes - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
565 1-3-5-6-7-8-9 Clutch Piston Dam Retaining Ring Yes - - 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble
566 Turbine Shaft Seal [ 5x ] Yes - - Turbine Shaft Seal Installation
567 Turbine Shaft Seal [ 5x ] Yes - - Turbine Shaft Seal Installation
569 Turbine Shaft Seal [ 3x ] Yes - - Turbine Shaft Seal Installation
570 Turbine Shaft Seal Yes - - Rotating Clutch, Gear, and Shaft Shell Assembly Assemble

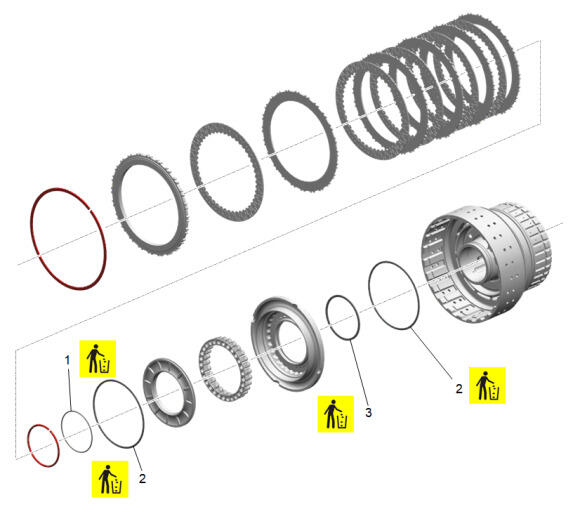

GM5423964Courtesy of GENERAL MOTORS COMPANY
2-3-4-5-7-9-10 Clutch Assembly

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
505 2-3-4-5-7-9-10 Clutch Backing Plate Retaining Ring - - - Triple Clutch Housing Assemble
510 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring - - - Triple Clutch Housing Assemble
511 2-3-4-5-7-9-10 Clutch Piston Dam Seal - Inner Yes - - Triple Clutch Housing Assemble
512 2-3-4-5-7-9-10 Clutch Piston Seal - Outer [ 2x ] Yes - - Triple Clutch Housing Assemble
536 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Inner Yes - - Triple Clutch Housing Assemble
GM5422618Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Manual Shift Auxiliary Position Switch

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Automatic Transmission Manual Shift Auxiliary Position Switch [ 4x ] - - 3.5 (31 lb in)
GM5509252Courtesy of GENERAL MOTORS COMPANY

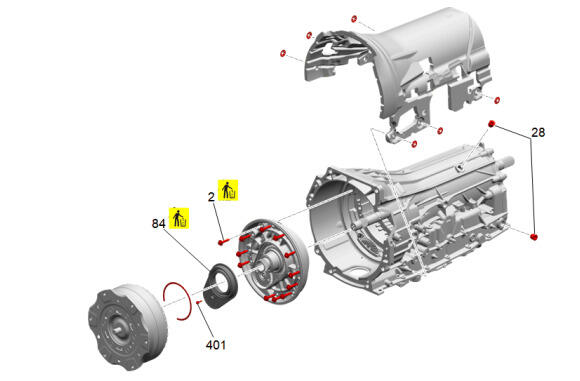

Case and Associated Parts (1 of 5)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
2 Input Shaft Support Bolt m8 x 27 [ 12x ] Yes Yes Input Shaft Support Bolt Sequence  Automatic Transmission Case Front Cover Installation
28 Automatic Transmission Case Plug M18 x 16.25 [ 2x ] - Yes 40 (29.5 lb ft) Automatic Transmission Case Plug Installation
78 Transmission Nut [ 6x ] - - - Transmission Housing Sound Insulator Installation
84 Automatic Transmission Case Front Cover Yes - - Automatic Transmission Case Front Cover Assemble
398 Automatic Transmission Case Cover Retaining Ring - - - Automatic Transmission Case Front Cover Assemble
401 Automatic Transmission Case Front Cover BoltM5 x 16.5 - - 4.7 (42 lb in) Automatic Transmission Case Front Cover Assemble
GM5423940Courtesy of GENERAL MOTORS COMPANY

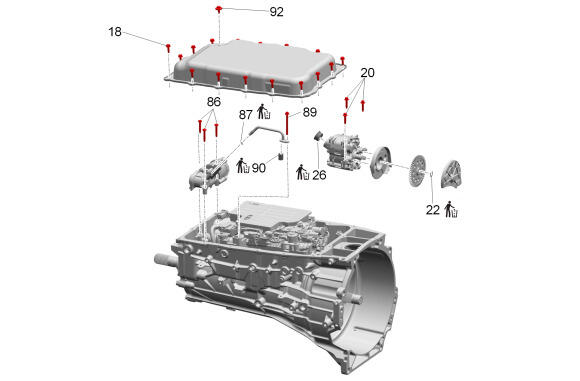

Case and Associated Parts (2 of 5)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)

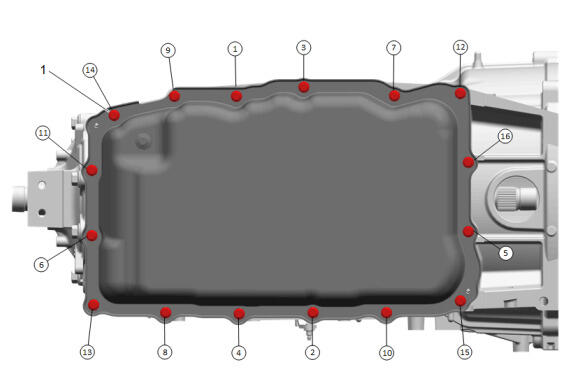

18 Automatic Transmission Fluid Pan Bolt M6 x 20 [ 16x ] - - Automatic Transmission Fluid Pan Bolt Sequence  Transmission Fluid Pan and Filter Assembly Installation
20 Automatic Transmission Fluid Pump Bolt M6 x 25 [ 3x ] - - 8 (71 lb in) Automatic Transmission Fluid Pump Installation
22 Automatic Transmission Fluid Pump Drive Shaft Retaining Ring Yes - - Automatic Transmission Fluid Pump Driven Gear Installation
26 Automatic Transmission Fluid Pump Seal Yes - - Automatic Transmission Fluid Pump Installation
86 Automatic Transmission Auxiliary Fluid Pump Bolt M6 x 35 [ 3x ] - - 10.5 (93 lb in) Auxiliary Fluid Pump Installation
87 Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal Yes - - Auxiliary Fluid Pump Installation
89 Control Valve Upper Body Bolt M6 x 68 - - 6 (53 lb in) Auxiliary Fluid Pump Installation
90 Automatic Transmission Auxiliary Fluid Pump Seal Yes - - Auxiliary Fluid Pump Installation
92 Transmission Oil Level Check Plug M6 x 16 - - 9 (80 lb in) -
GM5525883Courtesy of GENERAL MOTORS COMPANY

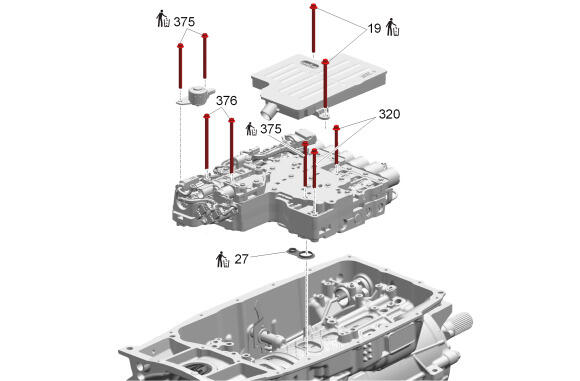

Case and Associated Parts (3 of 5)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
19 Automatic Transmission Fluid Filter Bolt M6 x 85 [ 2x ] Yes - First Pass:5 (44 lb in)
Final Pass:128 degrees		 Transmission Fluid Pan and Filter Assembly Installation
27 Automatic Transmission Fluid Pump Seal Yes - - Control Valve Assembly Assemble
320 Control Valve Solenoid Body Bolt M6 x 68 [ 2x ] - - Control Valve Solenoid Body Bolt Sequence  Control Valve Assembly and Transmission Wiring Harness Installation
375 Control Valve Solenoid Body Bolt M6 x 80 [ 3x ] Yes Yes Control Valve Solenoid Body Bolt Sequence  Control Valve Assembly and Transmission Wiring Harness Installation
376 Control Valve Solenoid Body Bolt M6 x 100 [ 2x ] - - Control Valve Solenoid Body Bolt Sequence  Control Valve Assembly and Transmission Wiring Harness Installation

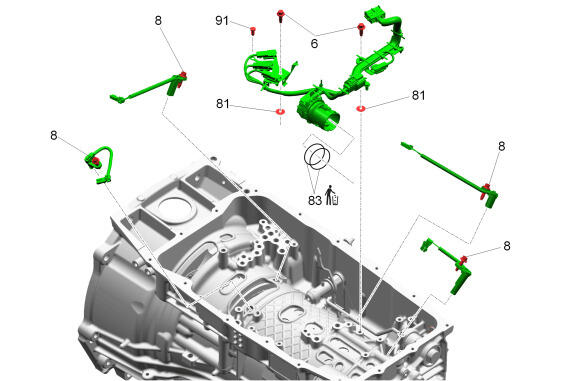

GM5525895Courtesy of GENERAL MOTORS COMPANY
Case and Associated Parts (4 of 5)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
6 Automatic Transmission Control Wiring Harness Clip Bracket Bolt M6 x 16 [ 2x ] - - 9 (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
8 Automatic Transmission Speed Sensor Bolt M6 x 20 [ 4x ] - - 9 (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
81 Automatic Transmission Control Wiring Harness Retainer [ 2x ] Yes - - Control Valve Assembly and Transmission Wiring Harness Installation
83 Wiring Harness Connector Seal [ 2x ] Yes - - Control Valve Assembly and Transmission Wiring Harness Installation
91 Automatic Transmission Control Wiring Harness Retainer Yes - - Control Valve Assembly and Transmission Wiring Harness Installation

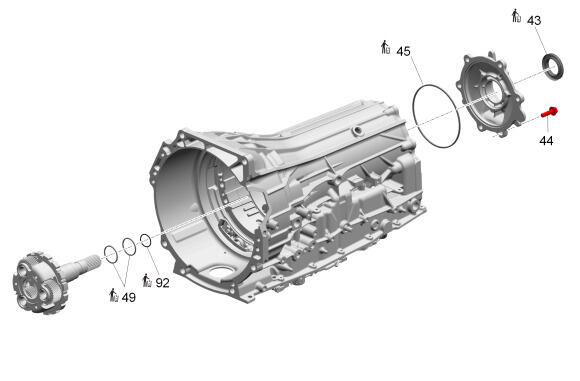

GM5424482Courtesy of GENERAL MOTORS COMPANY
Case and Associated Parts (5 of 5)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
43 Propeller Shaft Transmission Flange Fluid Seal Yes - - Case Extension Assemble (AWD)Case Extension Assemble (2WD)
44 Automatic Transmission Case Extension BoltM10 x 35 [ 6x ] - - Automatic Transmission Case Extension Bolt Sequence - 2WD

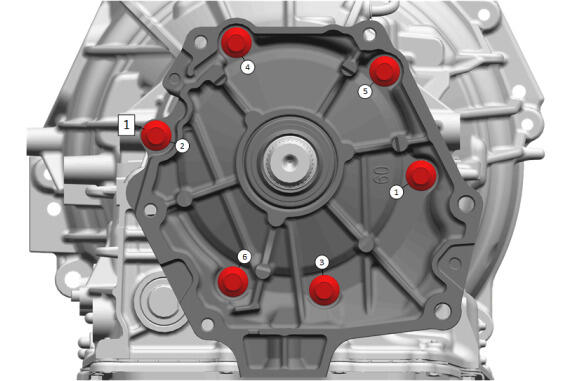

Automatic Transmission Case Extension Bolt Sequence - AWD 		 Case Extension Assembly Installation (AWD)Case Extension Assembly Installation (2WD)
45 Automatic Transmission Case Extension Seal Yes - - Case Extension Assembly Installation (AWD)Case Extension Assembly Installation (2WD)
49 Output Shaft Seal [ 2x ] Yes - - Output Carrier Assembly and Output Carrier Thrust Bearings Installation (AWD)Output Carrier Assembly and Output Carrier Thrust Bearings Installation (2WD)
92 Output Shaft Seal - Model Dependant Yes - - Output Carrier Assembly and Output Carrier Thrust Bearings Installation (AWD)Output Carrier Assembly and Output Carrier Thrust Bearings Installation (2WD)
GM5423960Courtesy of GENERAL MOTORS COMPANY

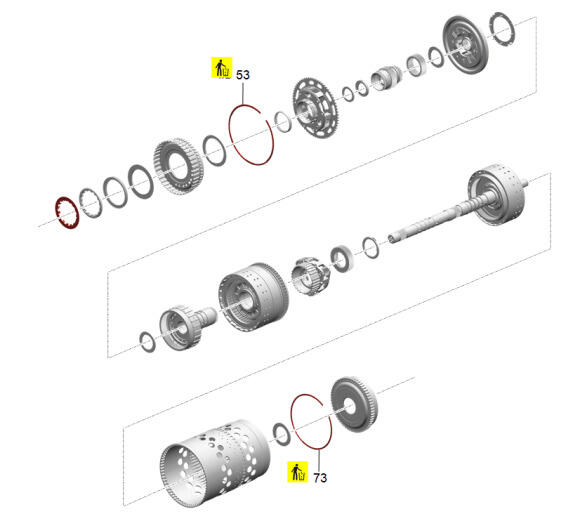

Clutch Assemblies and Associated Parts

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
50 Reaction Internal Gear Spacer Retainer - - - Rotating Clutch, Gear, and Shaft Shell Assembly Assemble
53 Reaction Carrier Hub Retaining Ring Yes - - Rotating Clutch, Gear, and Shaft Shell Assembly Assemble
73 Output Carrier Internal Gear Retaining Ring Yes - - Rotating Clutch, Gear, and Shaft Shell Assembly Assemble
GM5423961Courtesy of GENERAL MOTORS COMPANY

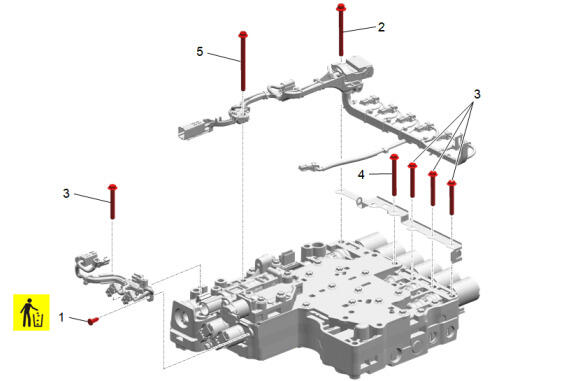

Control Valve Assembly

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
91 Automatic Transmission Control Wiring Harness Retainer Yes - - Control Valve Assembly Assemble
320 Control Valve Solenoid Body Bolt M6 x 68 - - 9 (80 lb in) Control Valve Assembly Assemble
372 Control Valve Upper Body Bolt M6 x 45 [ 4x ] - - 9 (80 lb in) Control Valve Assembly Assemble
373 Control Valve Upper Body Bolt M6 x 55 - - 9 (80 lb in) Control Valve Assembly Assemble
377 Control Valve Upper Body Bolt M6 x 60 - - 9 (80 lb in) Control Valve Assembly Assemble
GM5423963Courtesy of GENERAL MOTORS COMPANY

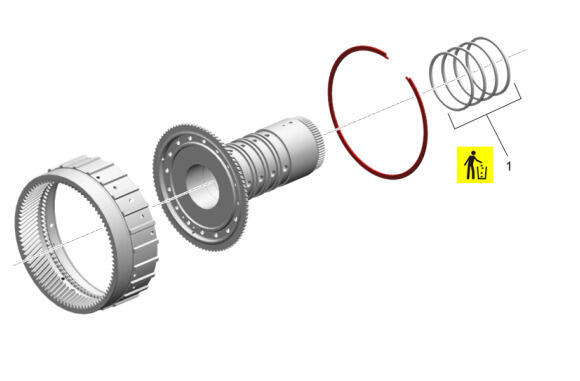

Direct/Overdrive Sun Gear Shaft Assembly

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
502 Input Internal Gear Retaining Ring - - - Direct Overdrive Sun Gear Shaft Assemble
503 Direct Overdrive Sun Gear Shaft Seal [ 4x ] Yes - - Direct Overdrive Sun Gear Shaft Assemble

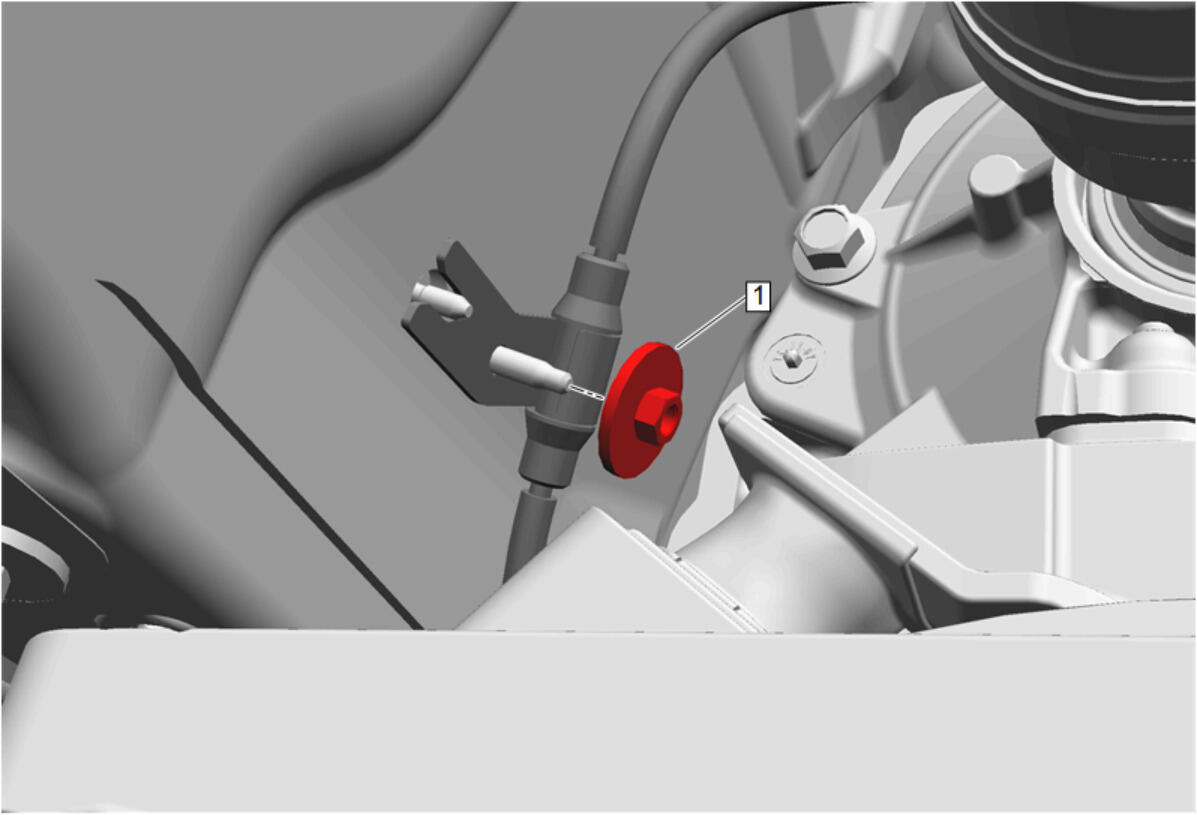

GM5328679Courtesy of GENERAL MOTORS COMPANY
Electronic Transmission Range Selector Manual Park Release Cable Guide

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Transmission Range Selector Manual Park Release Cable Guide Nut - - 9 (80 lb in) Electronic Transmission Range Selector Manual Park Release Cable Replacement
GM5525567Courtesy of GENERAL MOTORS COMPANY

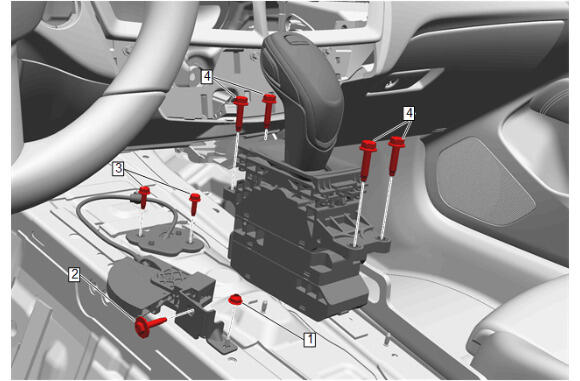

Electronic Transmission Range Selector Park Release Cable and Transmission Control

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Transmission Range Selector Manual Park Release Shift Lever Nut - - 2.5 (22 lb in) Electronic Transmission Range Selector Manual Park Release Cable Replacement
2 Front Floor Console Bracket Bolt - - 7 (62 lb in) Electronic Transmission Range Selector Manual Park Release Cable Replacement
3 Automatic Transmission Range Selector Lever Cable Grommet Bolt - - 9 (80 lb in) Electronic Transmission Range Selector Manual Park Release Cable Replacement
4 Automatic Transmission Control Bolt - - 9 (80 lb in) Electronic Transmission Range Selector Manual Park Release Cable Replacement
GM5423968Courtesy of GENERAL MOTORS COMPANY

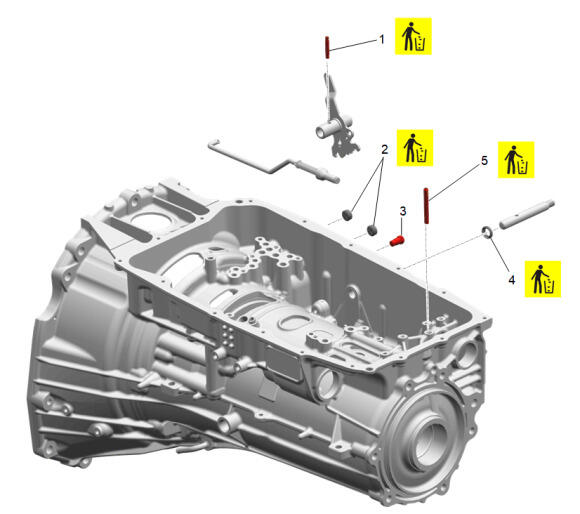

Park System Components

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
605 Manual Shift Shaft Pin Yes - - Park Release Lever and Park Pawl Actuator Installation
607 Transmission Fluid Cooler Pipe Fitting Seal [ 2x ] Yes - - Park Release Lever and Park Pawl Actuator Installation
608 Automatic Transmission Fluid Pressure Test Hole Plug 1/8" - 27 NPTF - Yes 11 (97 lb in) Automatic Transmission Fluid Pressure Test Hole Plug Replacement
609 Manual Shift Shaft Seal Yes - - Manual Shift Shaft Seal Installation
610 Park Pawl Actuator Guide Pin Yes - - Park Release Lever and Park Pawl Actuator Installation
GM5423962Courtesy of GENERAL MOTORS COMPANY

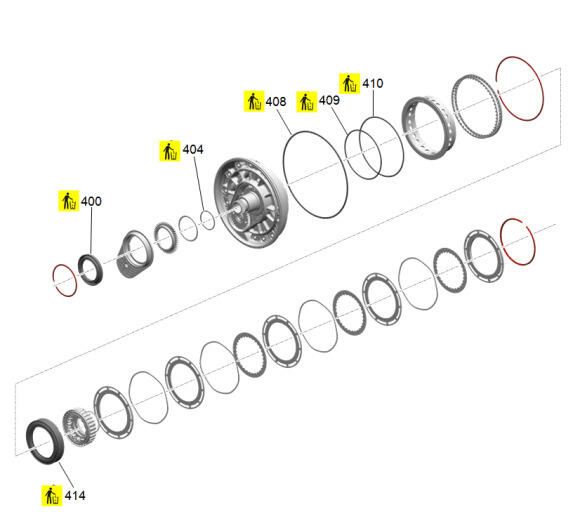

Stator Shaft Support Assembly

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
399 Torque Converter Fluid Seal Retaining Ring - - - Automatic Transmission Case Front Cover Assemble
400 Torque Converter Fluid Seal Yes - - Automatic Transmission Case Front Cover Assemble
404 Torque Converter Fluid Seal Yes - - Automatic Transmission Case Front Cover Assemble
408 Stator Shaft Support Seal Yes - - Automatic Transmission Case Front Cover Assemble
409 1-2-3-4-5-6-Reverse Clutch Piston Seal - Inner Yes - - Automatic Transmission Case Front Cover Assemble
410 1-2-3-4-5-6-Reverse Clutch Piston Seal - Outer Yes - - Automatic Transmission Case Front Cover Assemble
413 1-2-3-4-5-6 Clutch Spring Retaining Ring - - - Automatic Transmission Case Front Cover Assemble
414 1-2-8-9-10-Reverse Clutch Piston Yes - - Automatic Transmission Case Front Cover Assemble
420 1-2-8-9-10-Reverse Clutch Backing Plate Retaining Ring - - - Automatic Transmission Case Front Cover Assemble
GM5342773Courtesy of GENERAL MOTORS COMPANY

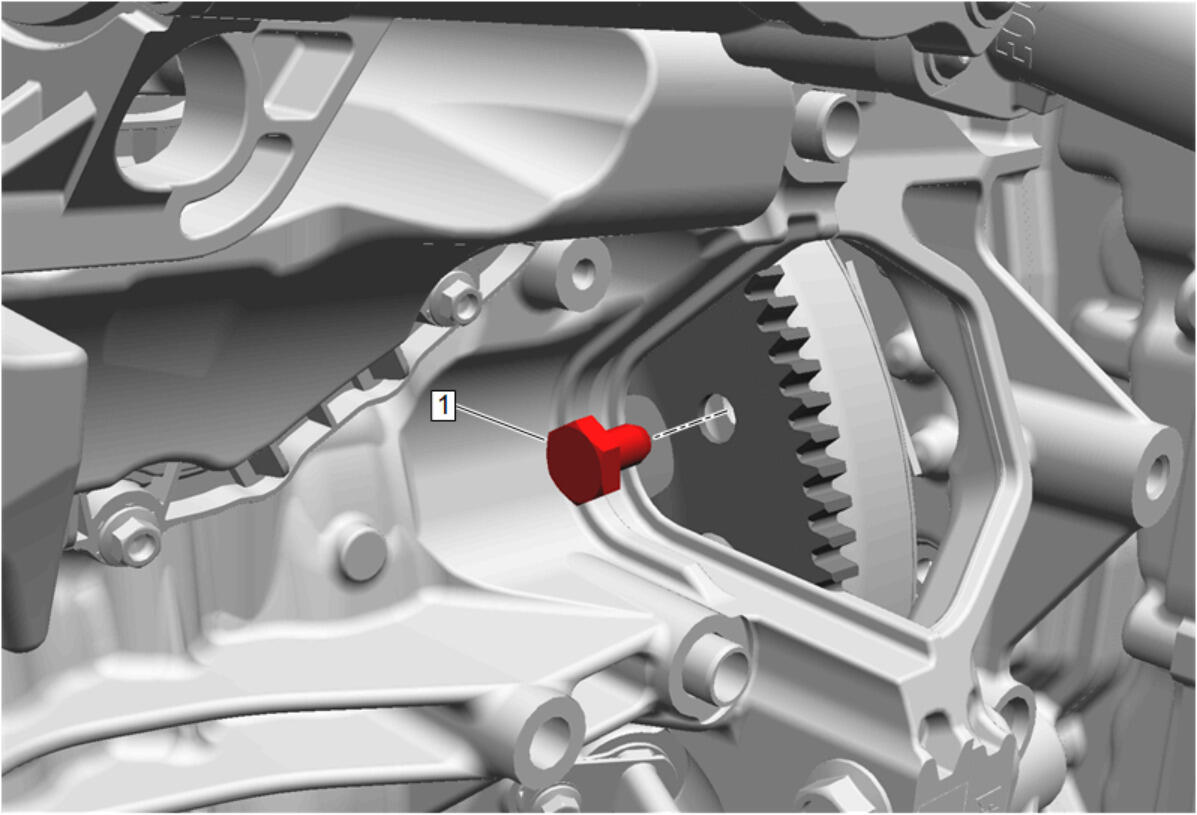

Torque Converter Bolt

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Torque Converter Bolt [ 6x ] - Yes 60 (44 lb ft) Transmission Replacement (All Wheel Drive)Transmission Replacement (Rear Wheel Drive)
GM5523009Courtesy of GENERAL MOTORS COMPANY

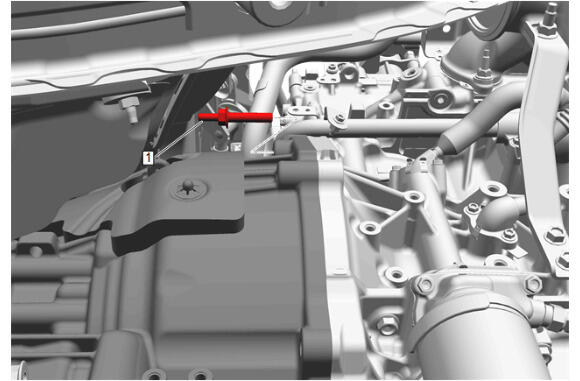

Transmission Bolts

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Bolt - - 58 (43 lb ft) Transmission Replacement (All Wheel Drive)Transmission Replacement (Rear Wheel Drive)
GM5522052Courtesy of GENERAL MOTORS COMPANY

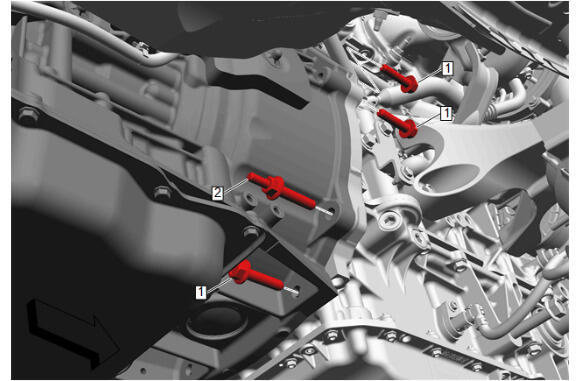

Transmission Bolts & Stud

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Bolt [ 3x ] - - 58 (43 lb ft) Transmission Replacement (All Wheel Drive)Transmission Replacement (Rear Wheel Drive)
2 Transmission Stud - - 58 (43 lb ft) Transmission Replacement (All Wheel Drive)Transmission Replacement (Rear Wheel Drive)
GM5522047Courtesy of GENERAL MOTORS COMPANY

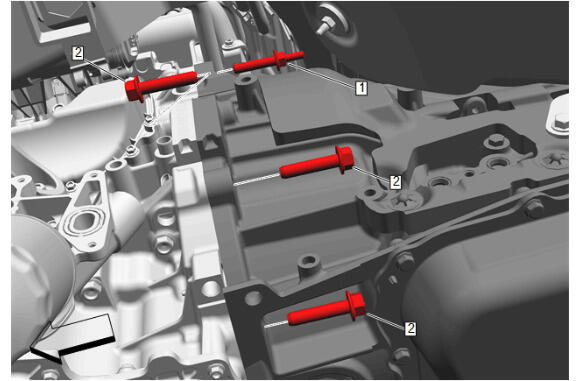

Transmission Bolts & Stud

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Stud - - 58 (43 lb ft) Transmission Replacement (All Wheel Drive)Transmission Replacement (Rear Wheel Drive)
2 Transmission Bolt [ 3x ] - - 58 (43 lb ft) Transmission Replacement (All Wheel Drive)Transmission Replacement (Rear Wheel Drive)
GM5525756Courtesy of GENERAL MOTORS COMPANY

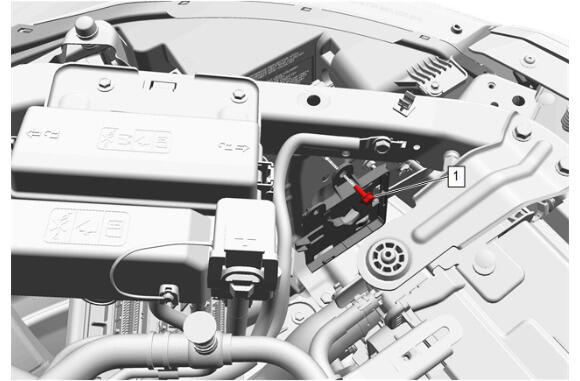

Transmission Control Module Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Control Module Bracket Bolt - - 9 (80 lb in) Transmission Control Module Bracket Replacement

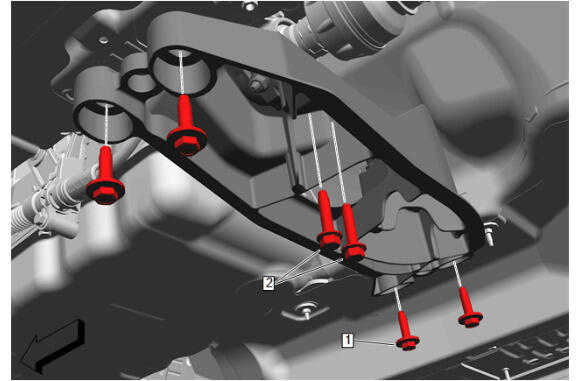

GM5512237Courtesy of GENERAL MOTORS COMPANY
Transmission Mount (Rear Wheel Drive)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Mount Bracket Bolt [ 4x ] - - 58 (43 lb ft) Transmission Mount Replacement (All Wheel Drive)Transmission Mount Replacement (Rear Wheel Drive)
2 Transmission Mount Bolt [ 2x ] - - 58 (43 lb ft) Transmission Mount Replacement (All Wheel Drive)Transmission Mount Replacement (Rear Wheel Drive)
GM5525563Courtesy of GENERAL MOTORS COMPANY

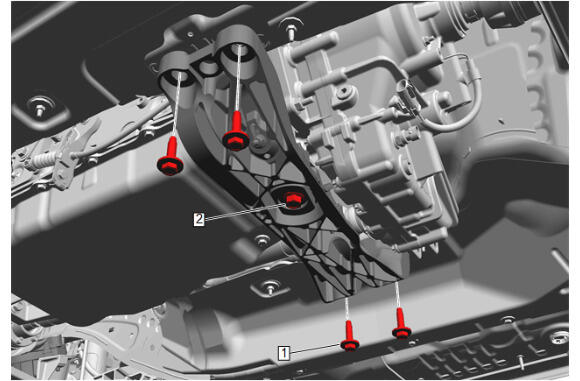

Transmission Mount (All Wheel Drive)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Mount Bracket Bolt [ 4x ] - - 58 (43 lb ft) Transmission Mount Replacement (All Wheel Drive)Transmission Mount Replacement (Rear Wheel Drive)
2 Transmission Mount - - 100 (74 lb ft) Transmission Mount Replacement (All Wheel Drive)Transmission Mount Replacement (Rear Wheel Drive)

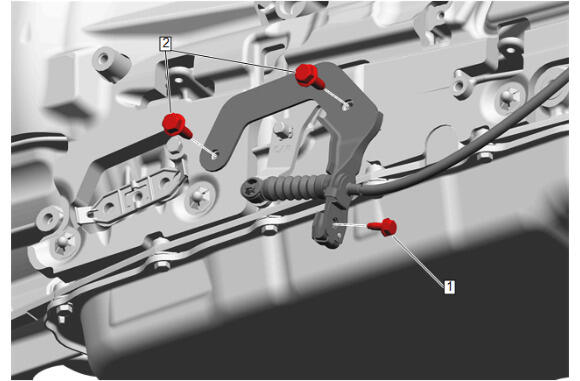

GM5525564Courtesy of GENERAL MOTORS COMPANY
Transmission Range Selector Parking Release Cable and Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Transmission Range Selector Manual Parking Release Cable Bracket Bolt [ 2x ] - - 22 (16 lb ft) Electronic Transmission Range Selector Manual Park Release Cable Bracket Replacement
2 Electronic Transmission Range Selector Manual Park Release Cable Clamp Bolt - - 9 (80 lb in) Electronic Transmission Range Selector Manual Park Release Cable Bracket Replacement

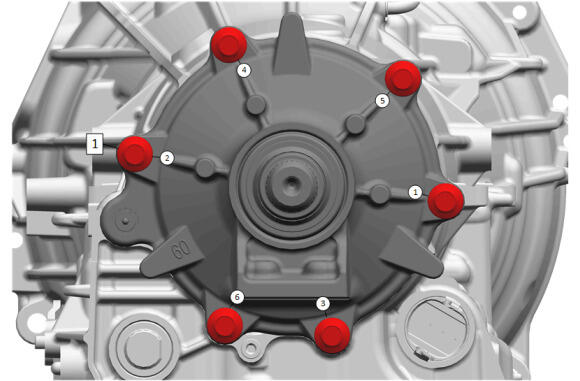

Automatic Transmission Case Extension Bolt Sequence - 2WD
GM5424470Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Case Extension Bolt M10 x 35 [ 6x ] - - 58 (43 lb ft) Case Extension Assembly Installation (AWD)Case Extension Assembly Installation (2WD)
Automatic Transmission Case Extension Bolt Sequence - AWD
GM5424475Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Case Extension Bolt M10 x 35 [ 6x ] - - 58 (43 lb ft) Case Extension Assembly Installation (AWD)Case Extension Assembly Installation (2WD)
Automatic Transmission Fluid Pan Bolt Sequence
GM5424474Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Fluid Pan Bolt M6 x 20 [ 16x ] - - 10.5 (93 lb in) Transmission Fluid Pan and Filter Assembly Installation

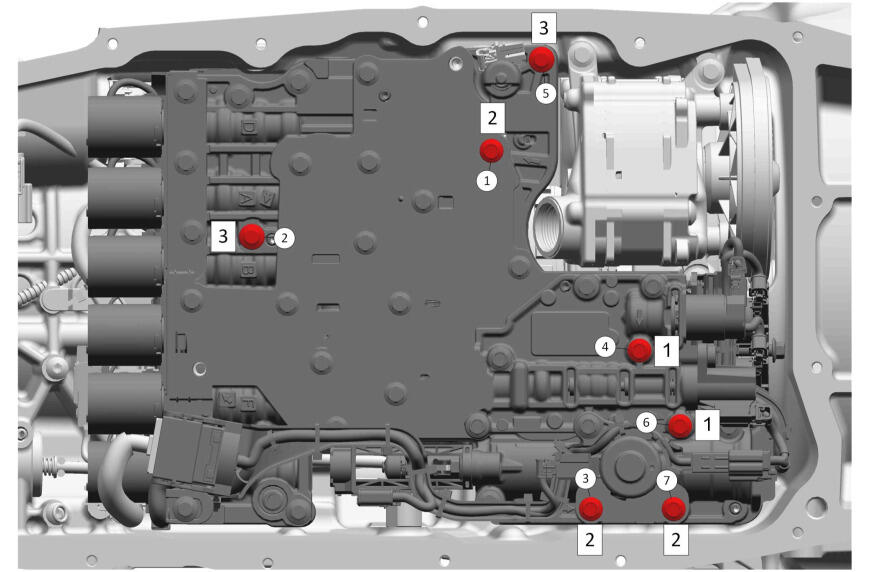

Control Valve Solenoid Body Bolt Sequence
GM5424473Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Control Valve Solenoid Body Bolt M6 x 100 [ 2x ] - - 9 (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
2 Control Valve Solenoid Body Bolt M6 x 80 [ 3x ] Yes Yes 9 (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
3 Control Valve Solenoid Body Bolt M6 x 68 [ 2x ] - - 9 (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation

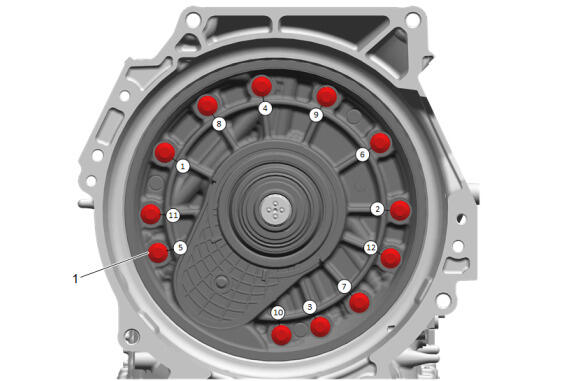

Input Shaft Support Bolt Sequence
GM5424472Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Input Shaft Support Bolt m8 x 27 [ 12x ] Yes Yes First Pass:12 (106 lb in)
Final Pass:120 degrees		 Automatic Transmission Case Front Cover Installation
scientia non olet · About Mike's Workshop Manuals
