Installation Procedure

  1. GM4749781Courtesy of GENERAL MOTORS COMPANY

    Insert the front floor console extension panel tab (1) into the instrument panel slot.

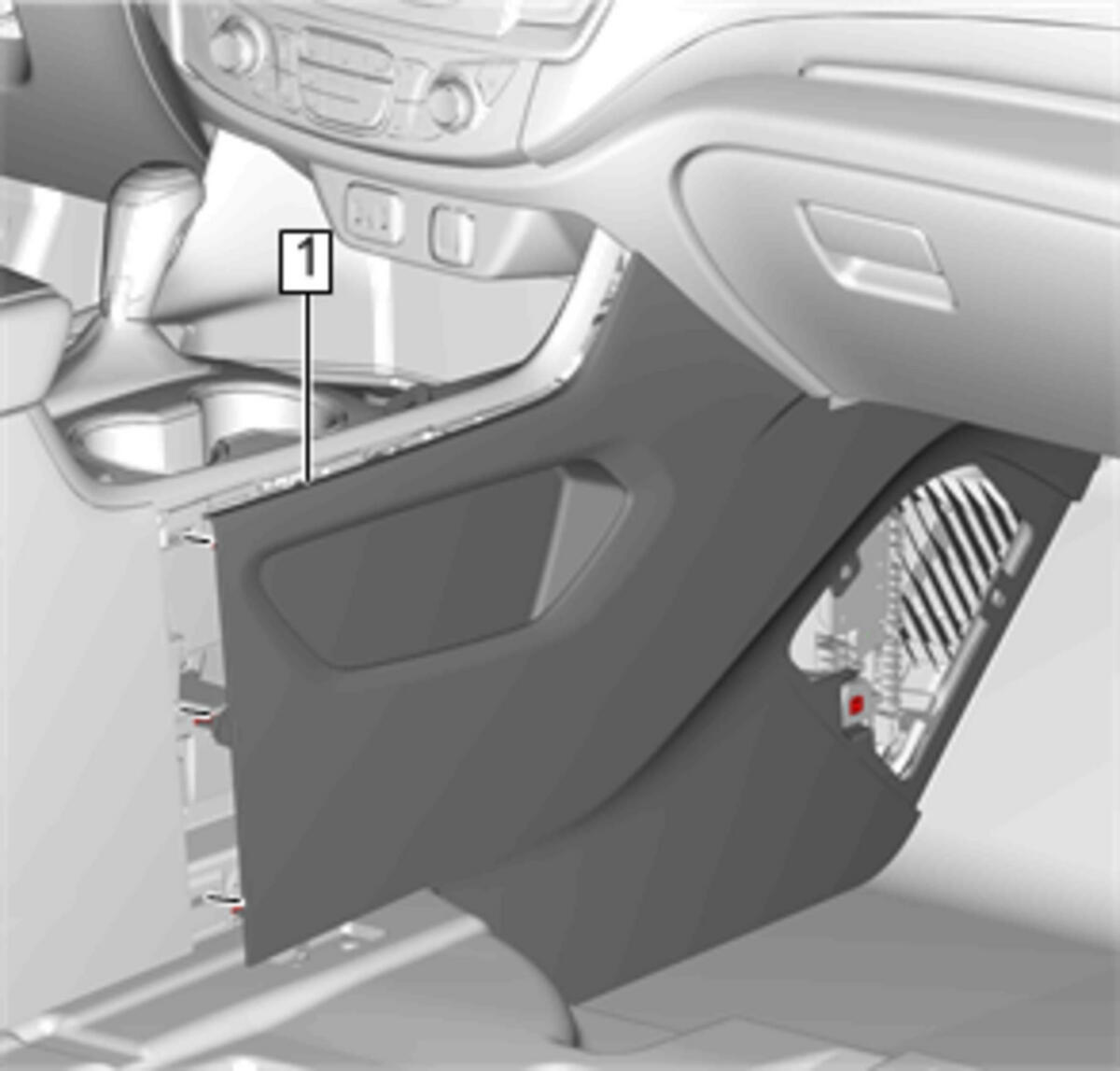

  2. GM4749780Courtesy of GENERAL MOTORS COMPANY

    Working you way rearward engage the front floor console extension panel (1).

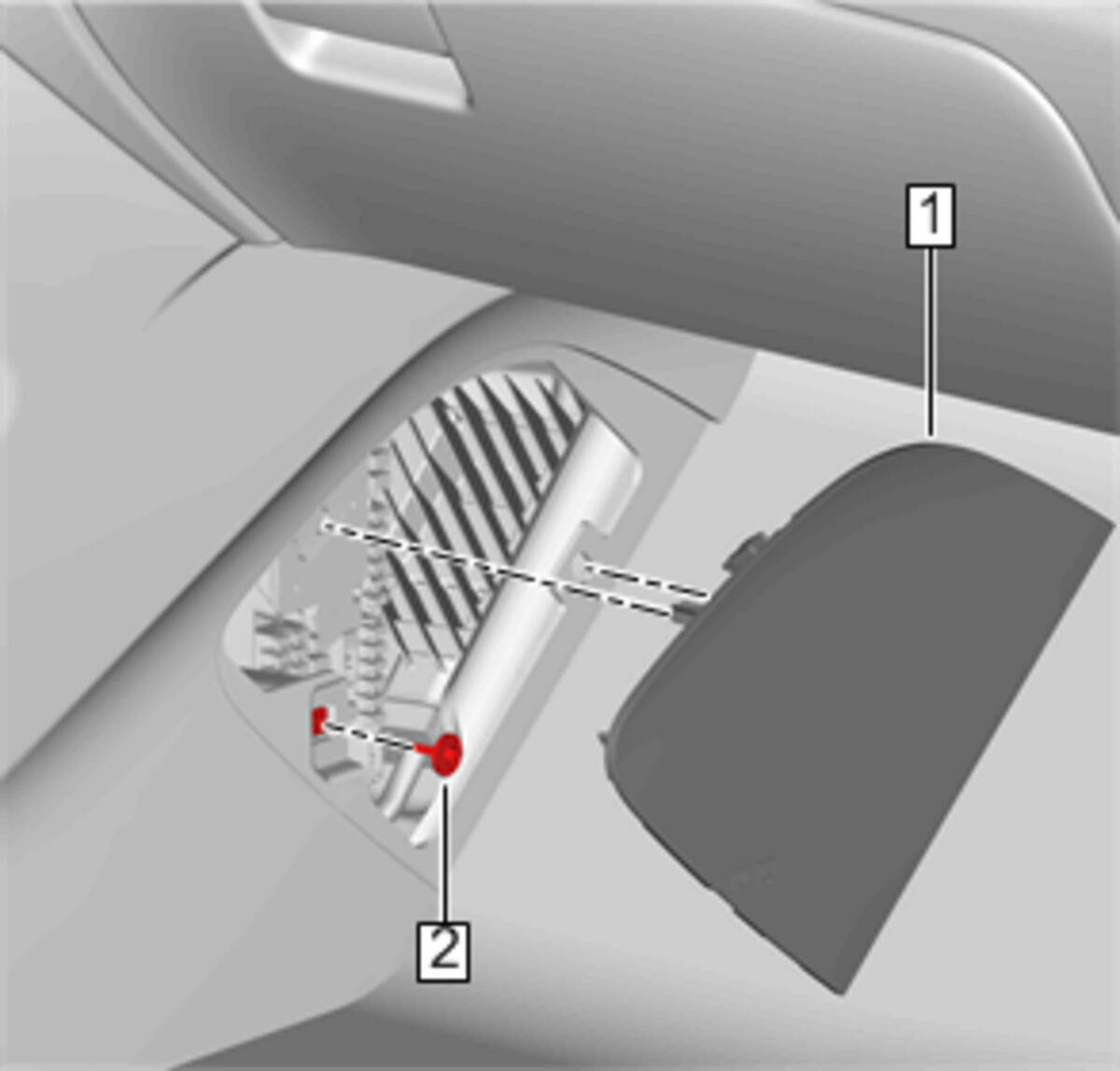

  3. GM4749779Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt @ Body Control Module Bracket (2) - Install and tighten 2.5 N.m (22 lb in)

  4. Front Floor Console Front Cover (1) - Install
  5. GM4195237Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install - Front Seat Removal and Installation
