Power Transfer Unit Shift Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

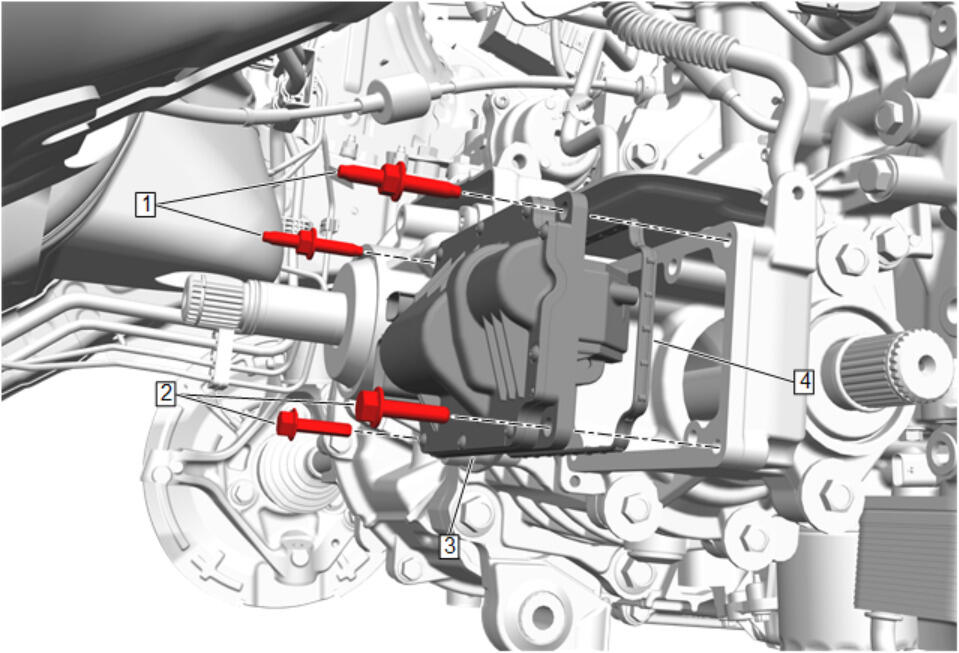

Callout	Component Name
Preliminary Procedure Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (FWD) Disconnect the electrical connectors. Release the retainers.
1	Power Transfer Unit Shift Actuator Bolt-Double End Stud [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Power Transfer Unit Shift Actuator Bolt [2x] Tighten 9 N.m (80 lb in)
3	Power Transfer Unit Shift Actuator NOTE: The shift fork must be lined up with the shift collar when it is installed.
4	Power Transfer Unit Shift Actuator Seal Procedure Inspect and replace as necessary.
