Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

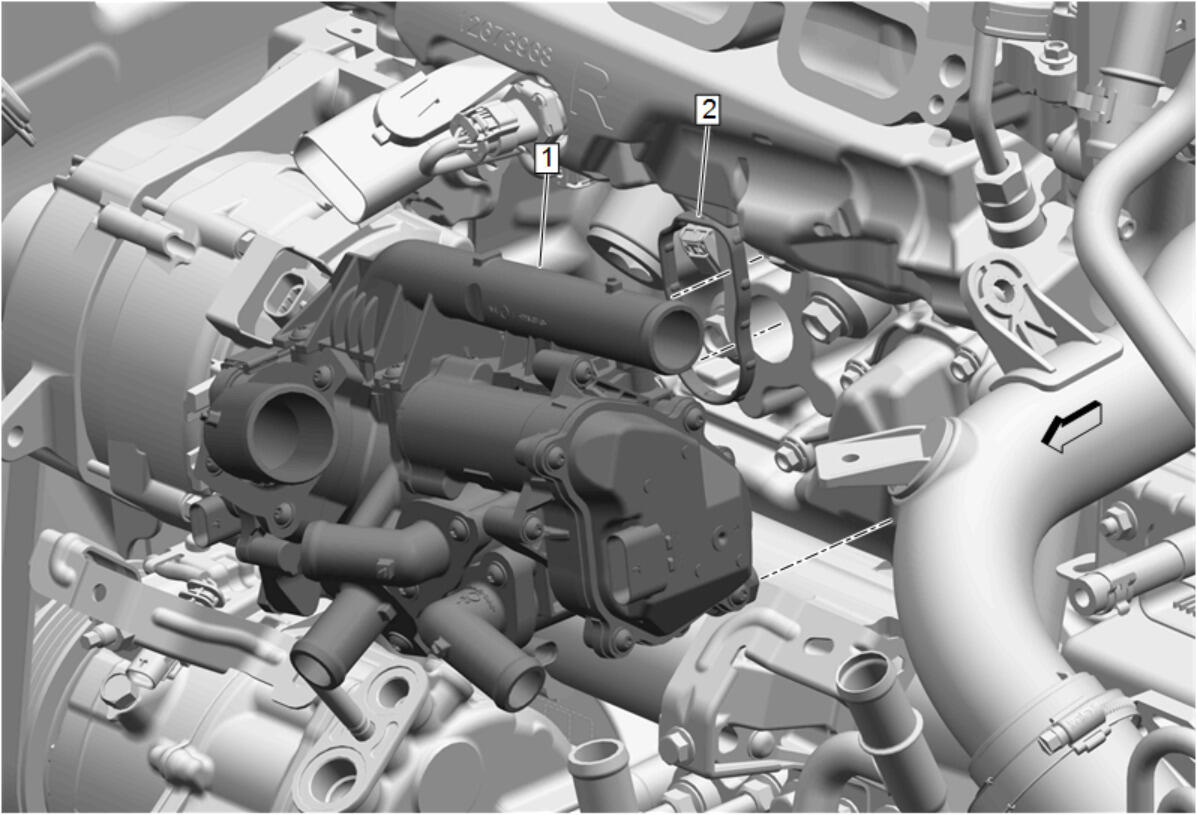

Water Outlet Seal (2) - Install NEW
Engine Coolant Flow Control Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

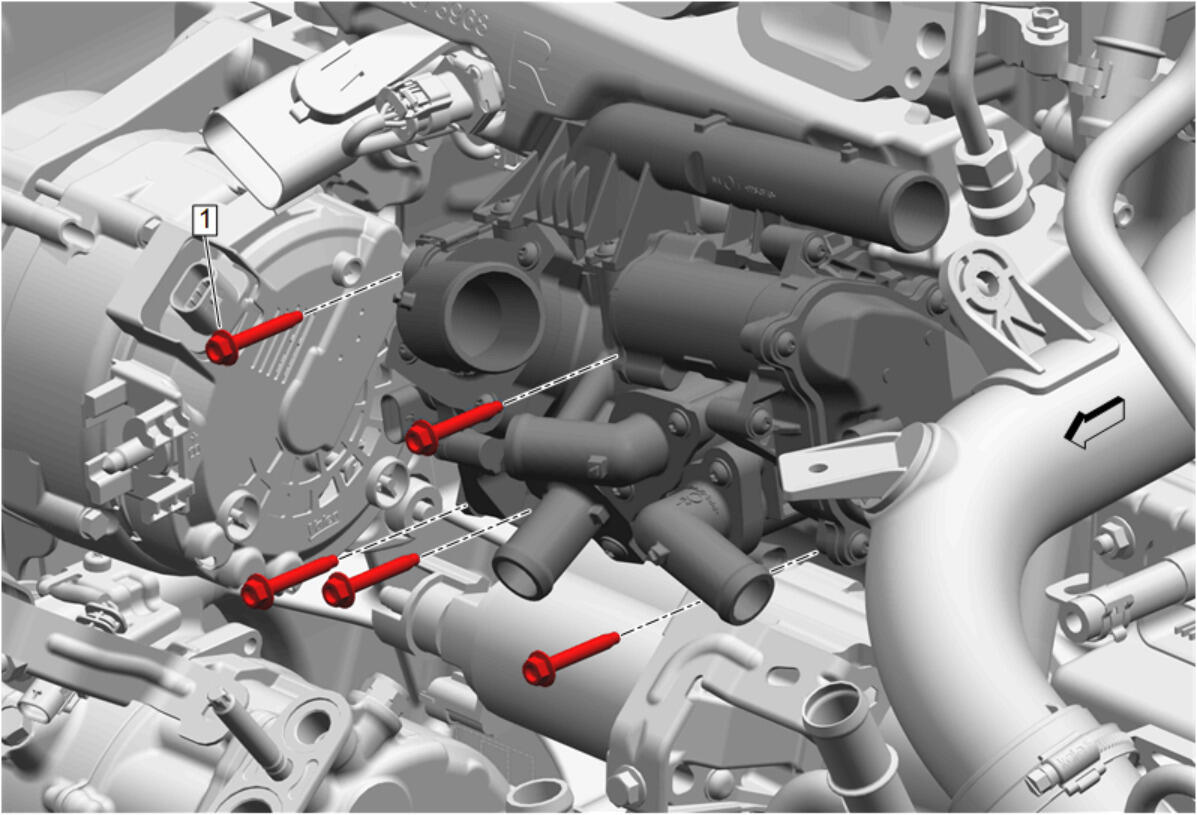

Engine Coolant Flow Control Valve Bolt (1) - Install [5x] - Engine Coolant Flow Control Valve Installation
Courtesy of GENERAL MOTORS COMPANY

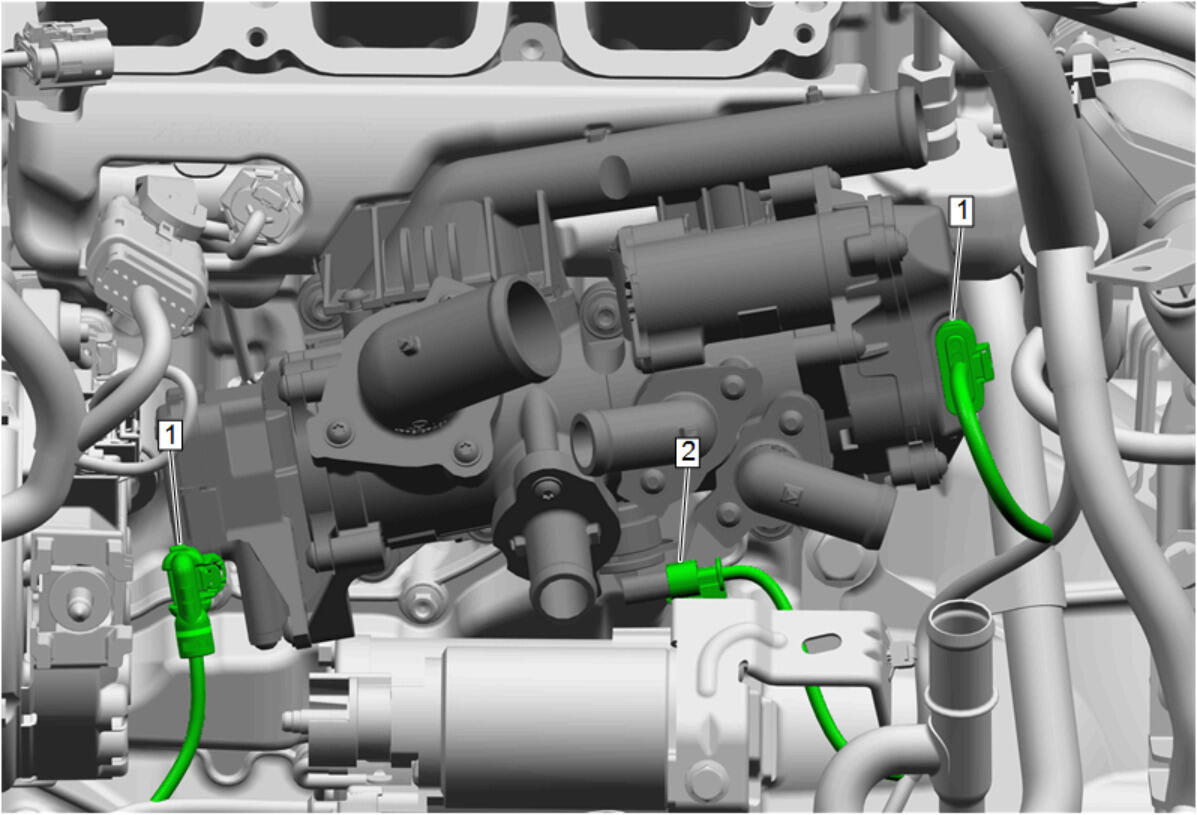

Electrical Connector (2) @ Engine Coolant Temperature Sensor - Connect
Electrical Connector (1) @ Engine Coolant Flow Control Valve - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

Thermostat Bypass Hose (2) @ Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

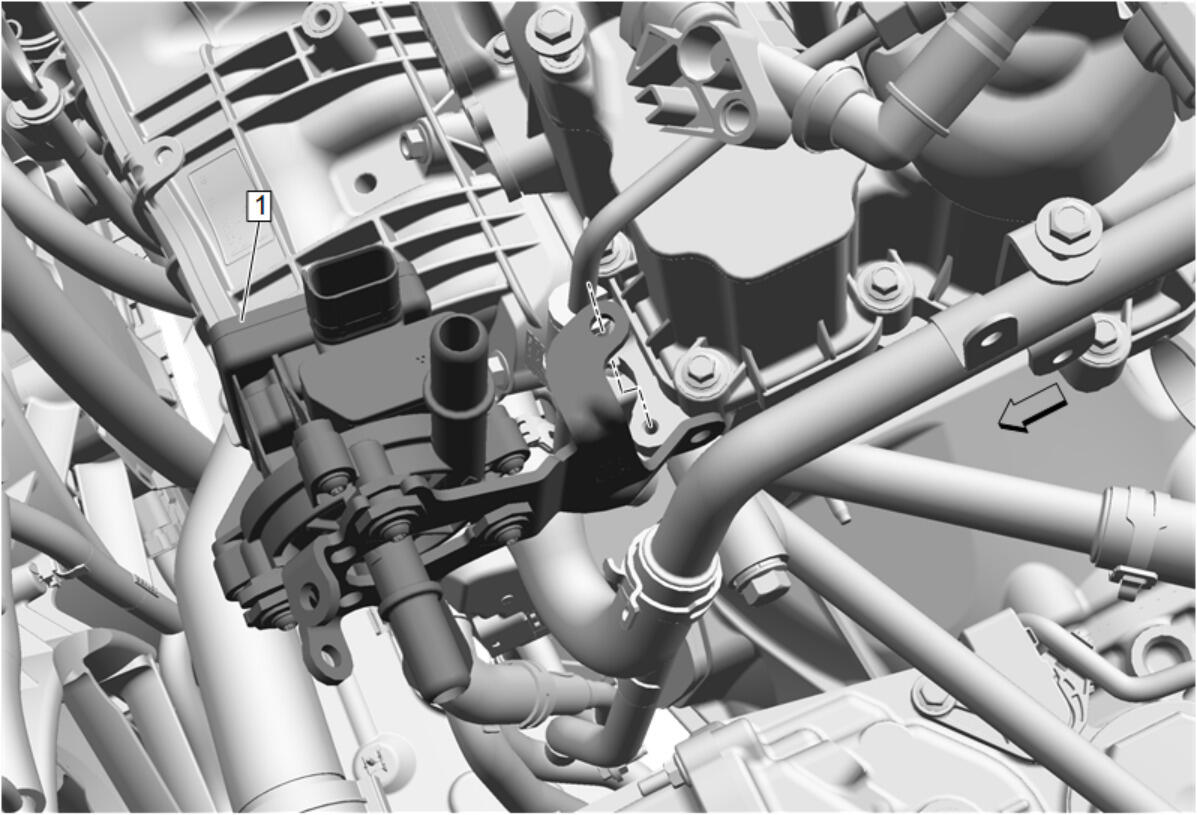

Evaporative Emission Canister Purge Pump (1) - Install - Evaporative Emission Canister Purge Pump Replacement
Courtesy of GENERAL MOTORS COMPANY

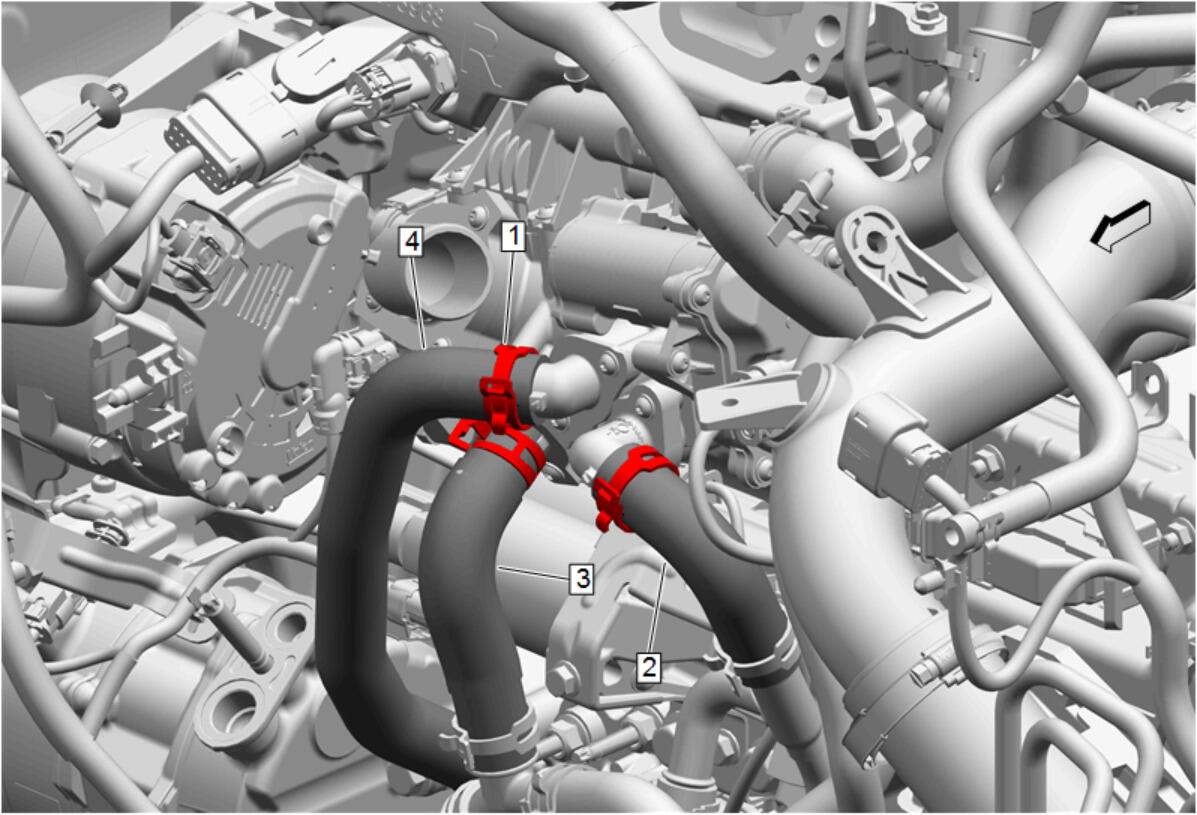

Engine Coolant Flow Control Valve Hose (4) @ Engine Coolant Flow Control Valve - Install
Thermostat Bypass Hose (3) @ Engine Coolant Flow Control Valve - Install
Engine Oil Cooler Coolant Inlet Hose (2) @ Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [3x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

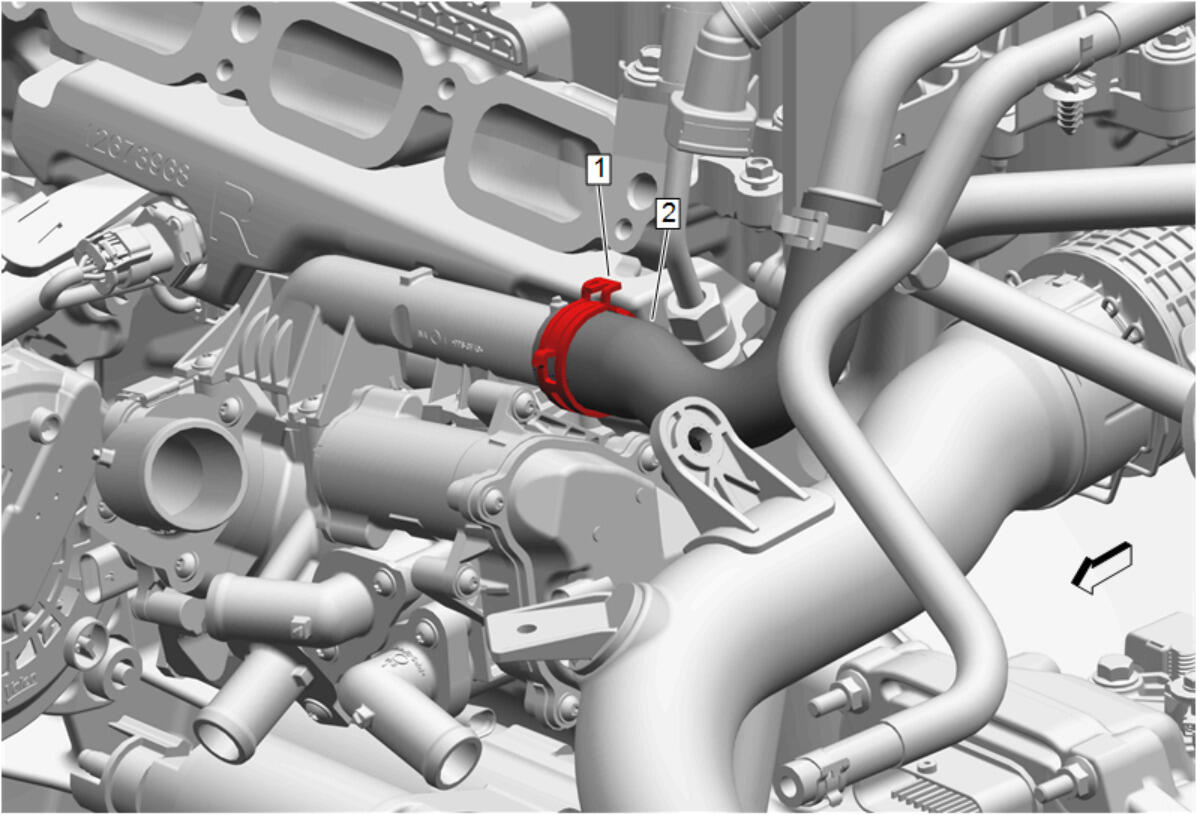

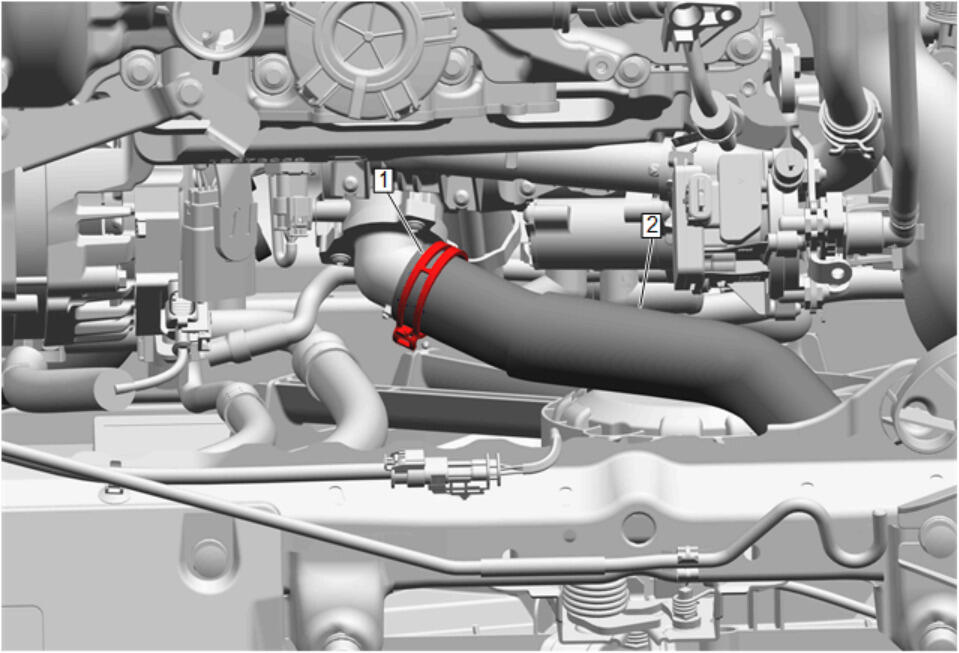

Radiator Inlet Hose (2) @ Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Radiator Assembly (1) - Install - Radiator Replacement
Oil Level Indicator Tube - Install - Oil Level Indicator Tube Replacement
Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for leaks.
